Paper Conveyor Machine V-Salt Conveyor Paper Roll Conveying

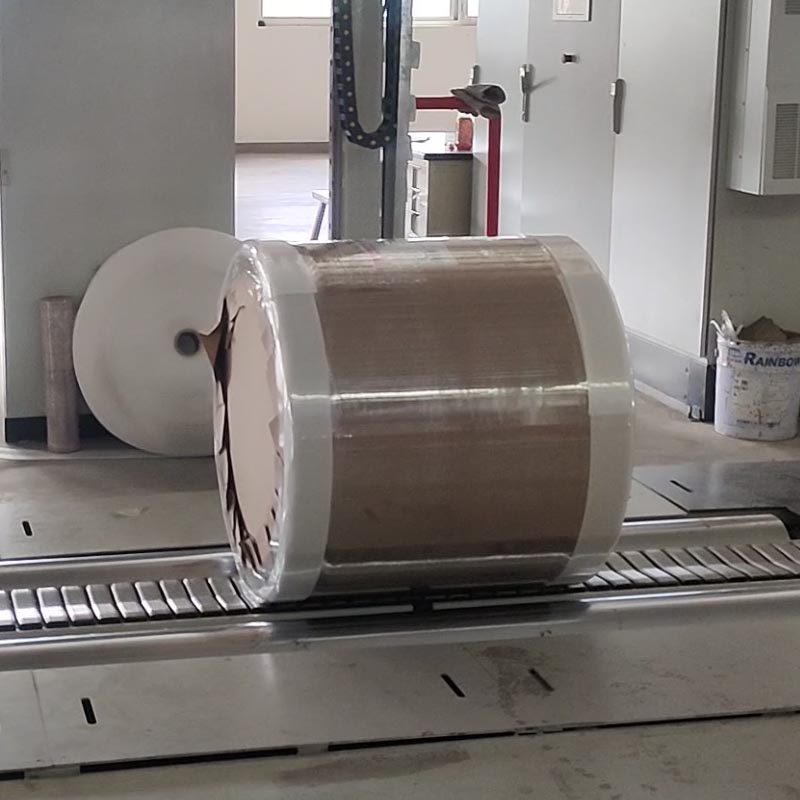

The web packing and conveying system takes the chain plate conveyor as the main equipment, Equipped with the necessary stop distributor、Fixed paper stopper、chain conveyor、Weighing and printing system、Automatic code printer、electric turntable、Full automatic tape strapping machine、Automatic stretch film packaging machine、High kick machine and other special mechanical equipment to complete the paper roll stop, conveying, weighing, belt beating and other actions.
| Capacity of tissue machine | 8rolls/H |
| Bearing capacity: | Max. 10tons (including spool shaft) |
| Working time: | 24Hours /7 days |
| Paper roll diameter: | φ1000-3500mm |
| Paper roll width: | ±3700mm |
| Max. Width including spool shaft: | ±5800mm |
| Travel distance: | ±2*200m straight + 2*15m cross direction |
| Travel speed: | Max. 40m/min (loaded) Max. 60m/min (unloaded) |

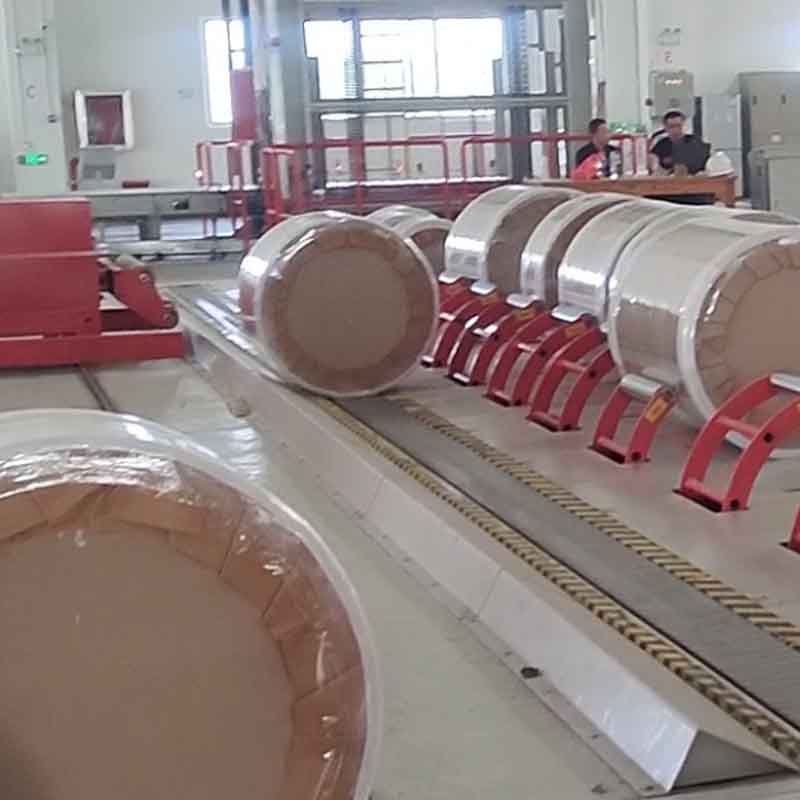

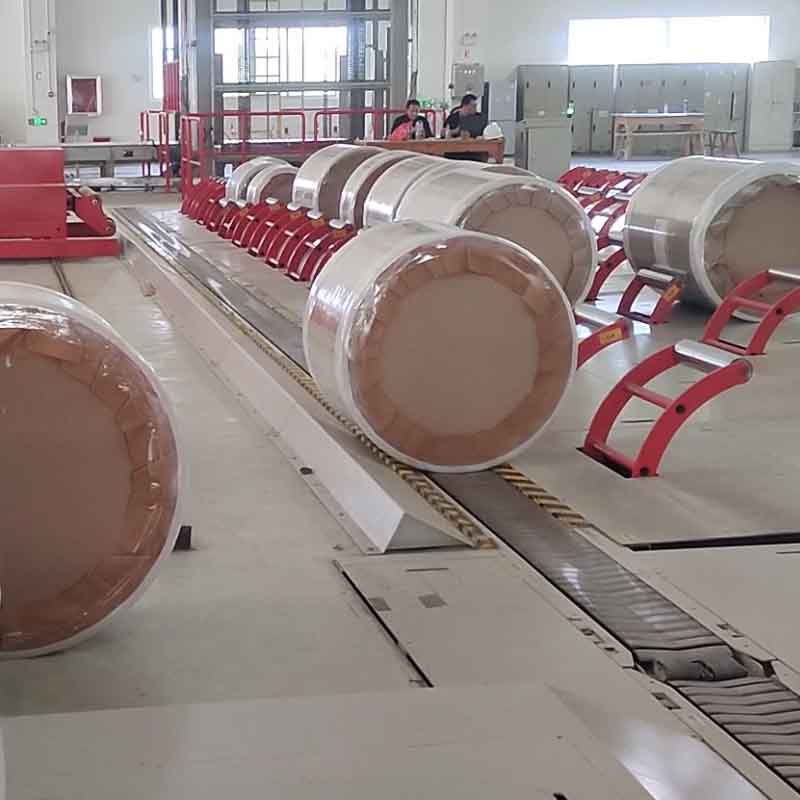

A roll of paper from a rewinder Rolling along the slope,Part of the paper coil stops on the slope via stop distributor 1, Part of the paper roll is directly rolled through the stop distributor through the fixed paper splitter 2, After the first batch of rolls has been sent out of the stop area one by one, manually place the second batch of rolls.
