Paper Roll Wrapping and Conveying System
Stop the ending rolls coming from the rewinder and launch rolls to the V-Type slat conveyor in accordance in order.change the hole conveying into the non-stop conveying.
No. | Item | Brand | Origin |
1 | PLC & touch screen | Siemens | Germany |
2 | Inverter | Schneider | France |
3 | Proximity switch | Omron | Japan |
4 | Limit switch | Omron | Japan |
5 | Power switch | Schneider | France |
6 | Relay | Omron | Japan |
7 | Photoeye | Panasonic | Japan |
8 | Pneumatic parts | Airtec Rodless cylinder: SMC | Taiwan, China Japan |
9 | Motor | Chinese brand | China |

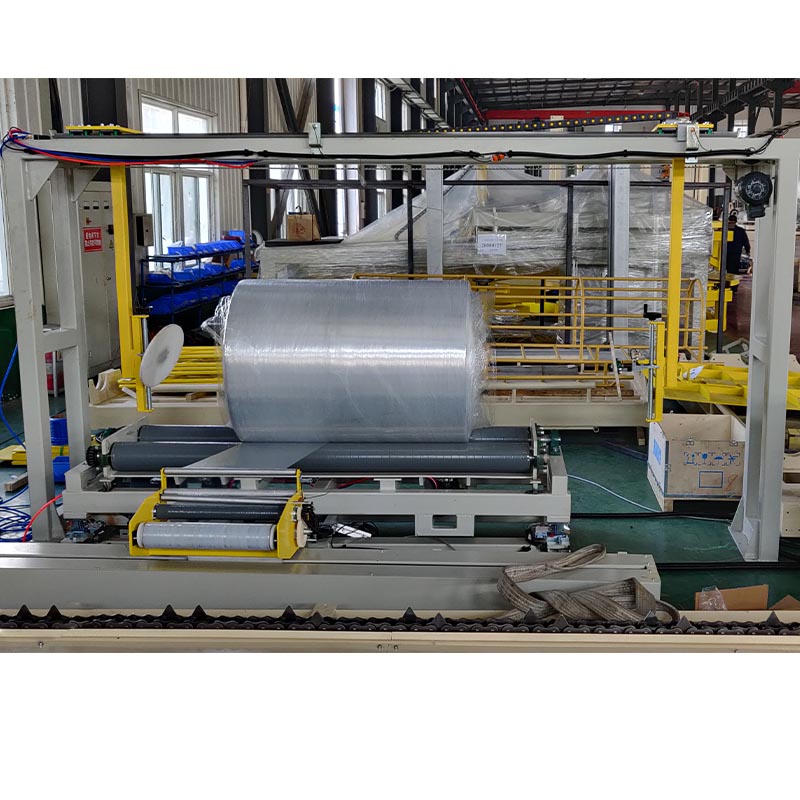

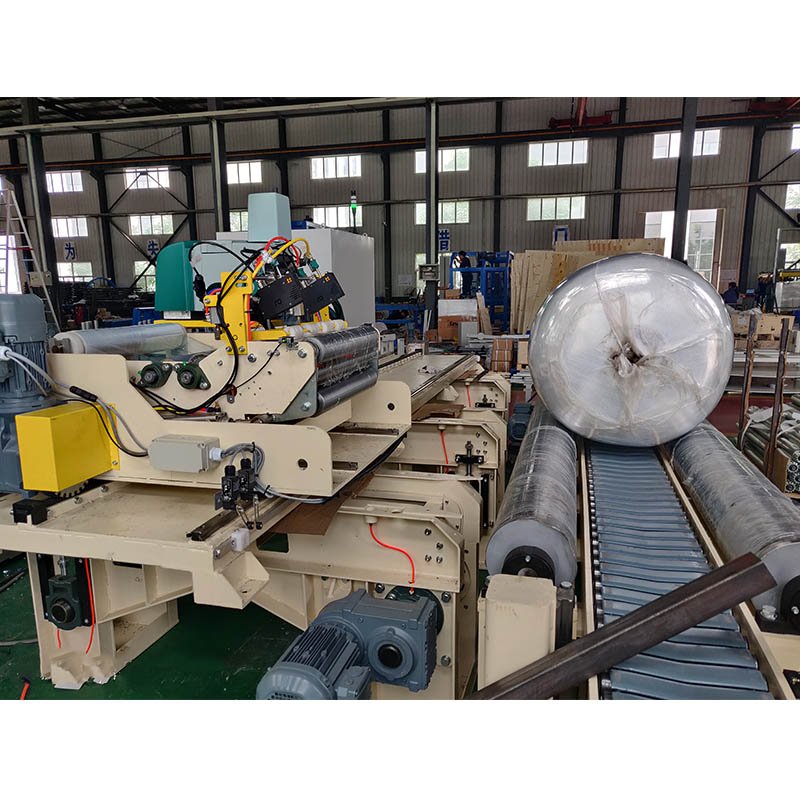

The cease sorting deck is composed through the 12 unit. Working width is 4800mm, unit width is B=400mm, the lifting of unit is realized through the pneumatic tyre..
2 Stop sorting deck makes use of the launch and clamp paper structure.
3 Chrome Plated on floor of quit sorting deck.
4 Fabricated metal structure.
5 Mounting in the concrete ramp.
6 Equipped with pneumatic manipulate cabinet, the pneumatic brake is constant in the cabinet, without difficulty to take a look at and overhaul. Equipped with air tube, the air supply is related to the pneumatic manipulate cupboard by way of the user.
7 The operation is completed on the website online operation platform.
Our intelligent packaging solution is widely used in different industries, including food and beverage, fiber glass, chemical, construction material, feeding material and paper roll handling system. We are still in the movement for household electrical appliance, pharmacy, intelligent storage., etc.. We are serving customers include Coca-Cola, Tsingtao Brewery, Saint-Gobain, Taishan Gypsum Board, Taishan Fiberglass, IKEA and other well-known enterprises.
