Paper Mill Conveyor Machine for Conveying Paper Roll V-Salt Conveyor

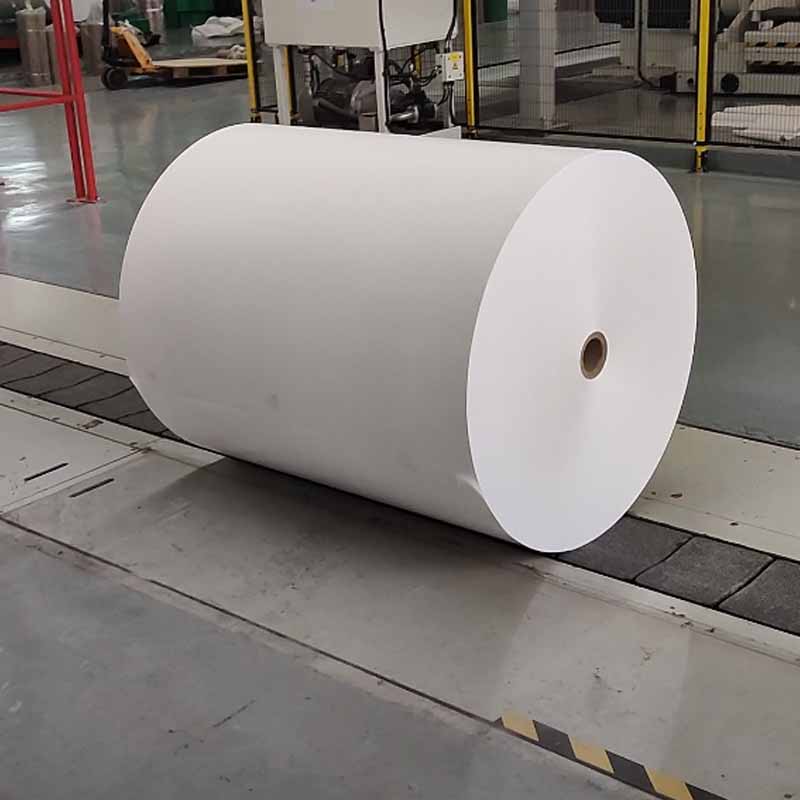

Paper roll conveyor system--V-type slat conveyor
1. The V type is especially made for the paper roll.
2. The v-slat conveyor is usually used in the paper roll packing and transporting system.
3. Automatic conveying the finishing rolls in Paper making tactory, also can be used to convey other products with roll shape.
| Capacity of tissue machine | 8rolls/H |
| Bearing capacity: | Max. 10tons (including spool shaft) |
| Working time: | 24Hours /7 days |
| Paper roll diameter: | φ1000-3500mm |
| Paper roll width: | ±3700mm |
| Max. Width including spool shaft: | ±5800mm |
| Travel distance: | ±2*200m straight + 2*15m cross direction |
| Travel speed: | Max. 40m/min (loaded) Max. 60m/min (unloaded) |
When the paper roll is close to the weighing chain plate conveyor 4, the weighing chain plate conveyor 4 will operate automatically, Transfer the paper roll to the weighing device 5 stop, Manually measure the diameter and width of the paper roll and calibrate the accuracy with the production plan. Working of weighing system, Automatic control system ipc no.16 automatically reads the information of the paper roll, The paper roll weight data is displayed automatically and sent to the industrial computer database system for recording,
