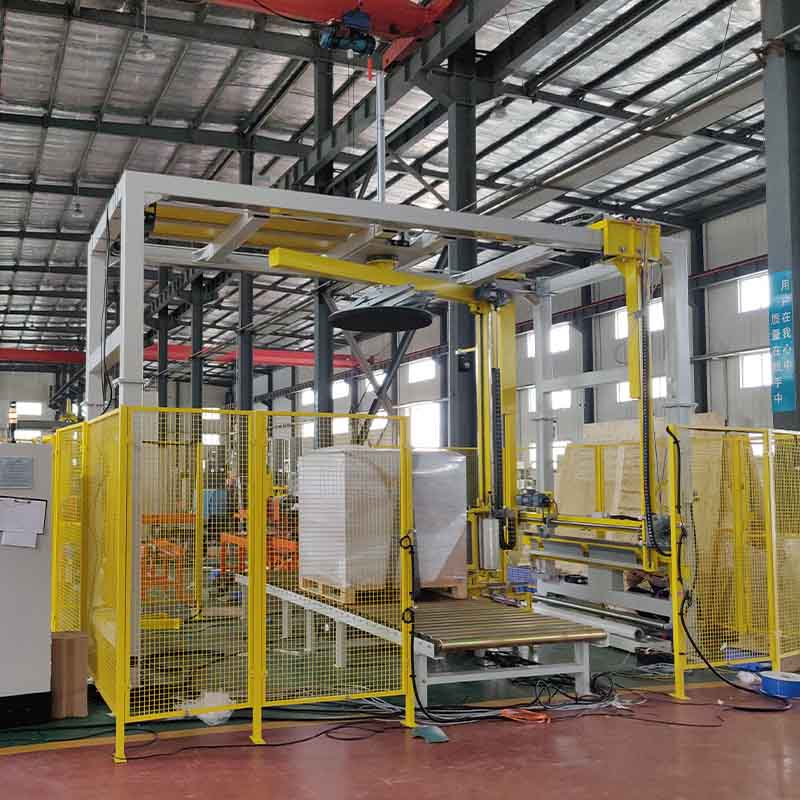

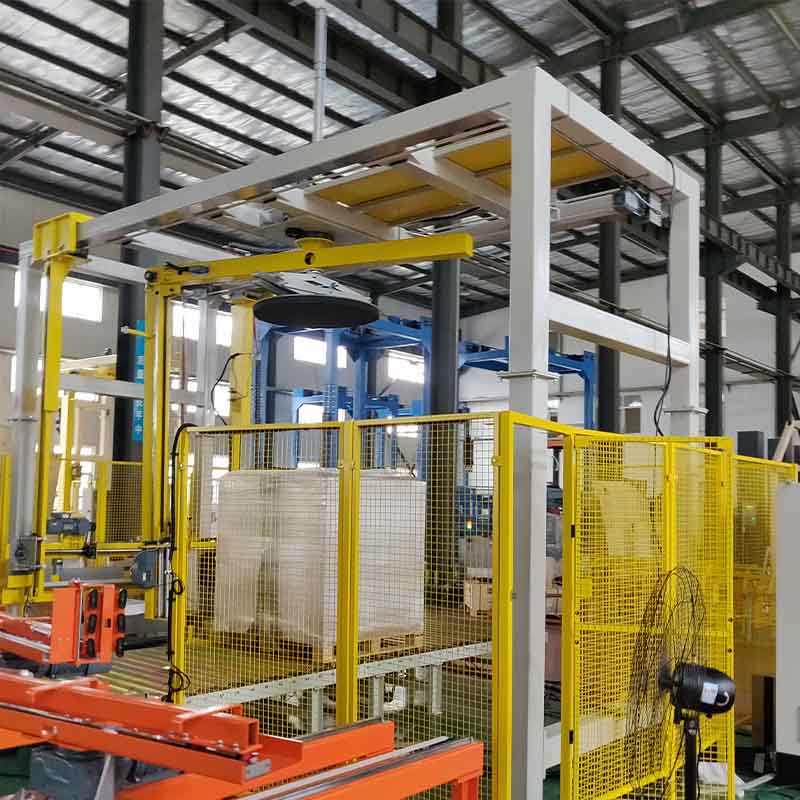

Rotary arm stretch film wrapper
The max. speed of arm rotating is 35 rpm, which meet the high production efficiency.

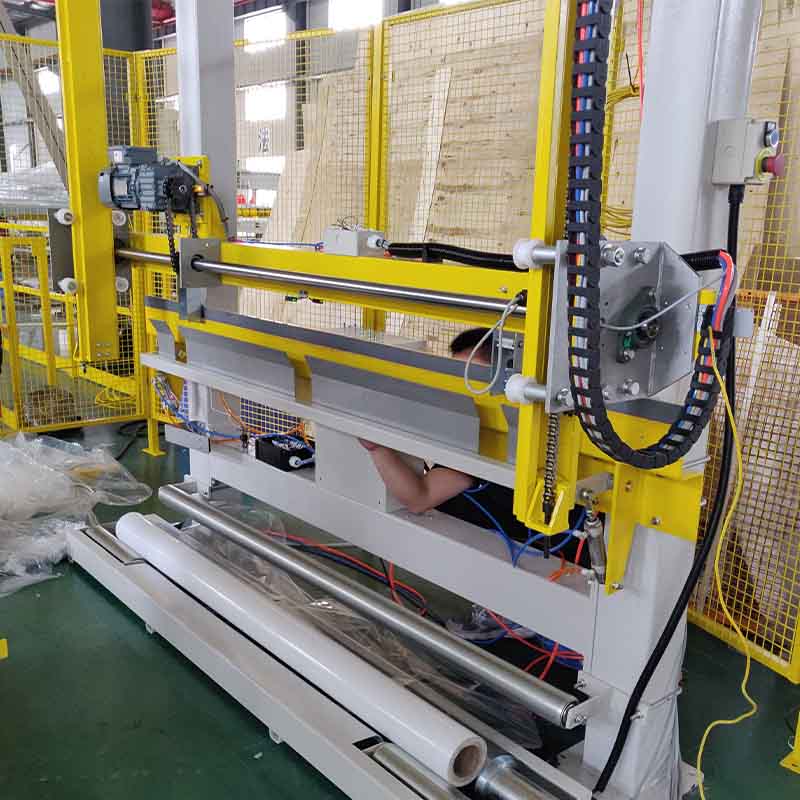

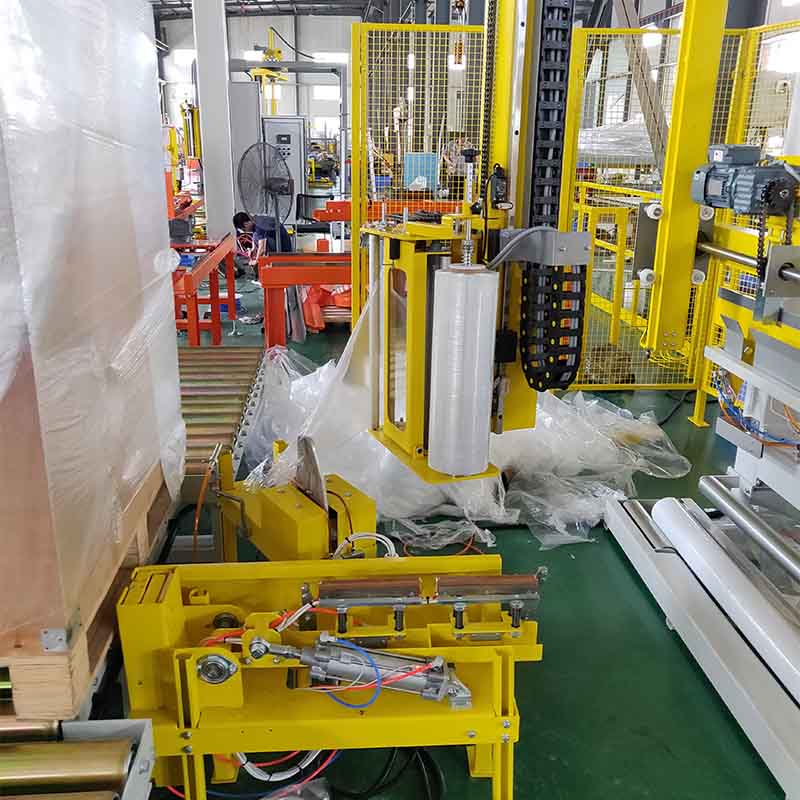

Good wrapping effectiveness. Good film clamp& cuting unit with Europe technology. It can give a better film sealing and cutting result.
Item | Specification |
Wrapping specifications | (500-1300)mm*(500-1200)mm. |
Packing height | 2400mm |
Packaging efficiency | 30-60 loads/H available. (Option: or 20-40 loads/H) |
Arm speed | 0-25rpm frequency control. (Option 15rpm, 35rpm) |
Arm performance | High sensitivity emergency brake system, the arm automatically reset. |
Lifting column | Chain structure, speed variable frequency adjustable. |
Control system | PLC programmable control, wrapping layer adjustable, automatic height sense. |
Machine weight | 680KG (without support) |
Machine dimensions | 3440mm*1800mm*3220mm (without convey line) |
Power/ voltage | Arm 1.1/1.5kw, Film carriage 0.37kw, lift 0.37kw/0.55kw, conveyor 0.75kw/AC220V |
Option: Safety warning and protection fence, Photo-eye protection for infeed and outfeed goods (Conveyor line) |
Powered with pause/manual/automatic wrapping switch function, in order to ensure the better operating.
Air source required: the compressed air shall be supplied by end user to the inlet of the stop valve.
Safety fencing, conveyor or light curtain NOT included.
