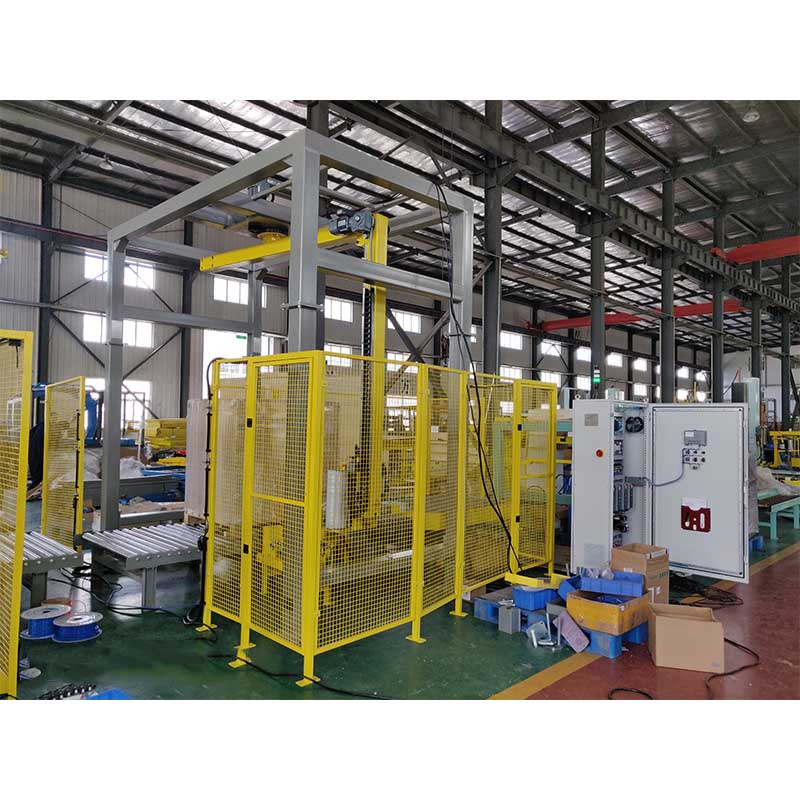

Rotary Arm Pallet Wrapper Rotary Arm Pre-Stretch Wrapping Machine

1. Proven technology with stable using.

We are the first manufacturer of rotary arm wrappers in China and have accumulated detailed and advanced method to keep the machine working in normal and function well with other machines.

2. The max speed of arm rotating is 35 rpm. We are the only supplier who can do this and do better in this in China.

3. Good wrapping effectiveness

We use good film clamp& cuting unit with Europe technology. It can give you a better film sealing and cutting result.

Contact Now E-Mail Telephone WhatsApp

Product Details

Item	Specification
Wrapping specifications	(500-1300)mm*(500-1200)mm.
Packing height	2400mm
Packaging efficiency	30-60 loads/H available. (Option: or 20-40 loads/H)
Arm speed	0-25rpm frequency control. (Option 15rpm, 35rpm)
Arm performance	High sensitivity emergency brake system, the arm automatically reset.
Film carriage system	Pre-stretch film carriage, stretch ratio up to 300%, automatic film feeding & cutting device, adjustable speed.
Lifting column	Chain structure, speed variable frequency adjustable.
Control system	PLC programmable control, wrapping layer adjustable, automatic height sense.
Machine weight	680KG (without support)
Machine dimensions	3440mm1800mm3220mm (without convey line)
Power/ voltage	Arm 1.1/1.5kw, Film carriage 0.37kw, lift 0.37kw/0.55kw, conveyor 0.75kw/AC220V
Option: Safety warning and protection fence, Photo-eye protection for infeed and outfeed goods (Conveyor line)

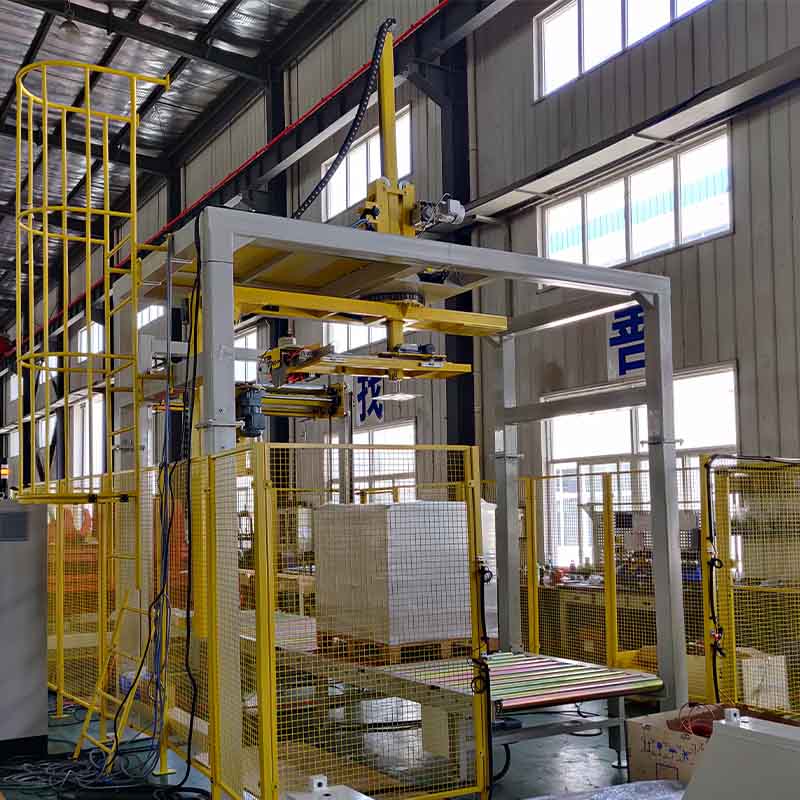

Packing Equipment

Powered pre-stretch system up to 1:3.5 to min film consumption(Prestretch ratio can be specially made according your requirements.)
Film delivery variable speed by separate AC Drive Motor
Film dancer-bar with variable speed output
Rotating Power slip ring provide power required for carriage drive on rotary arm.

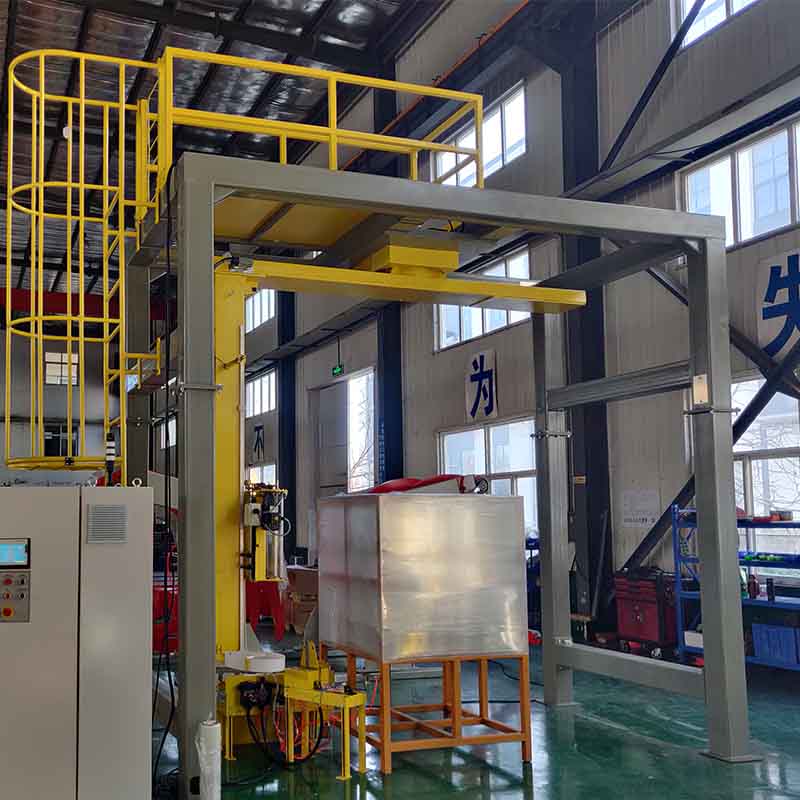

Packing Equipment
