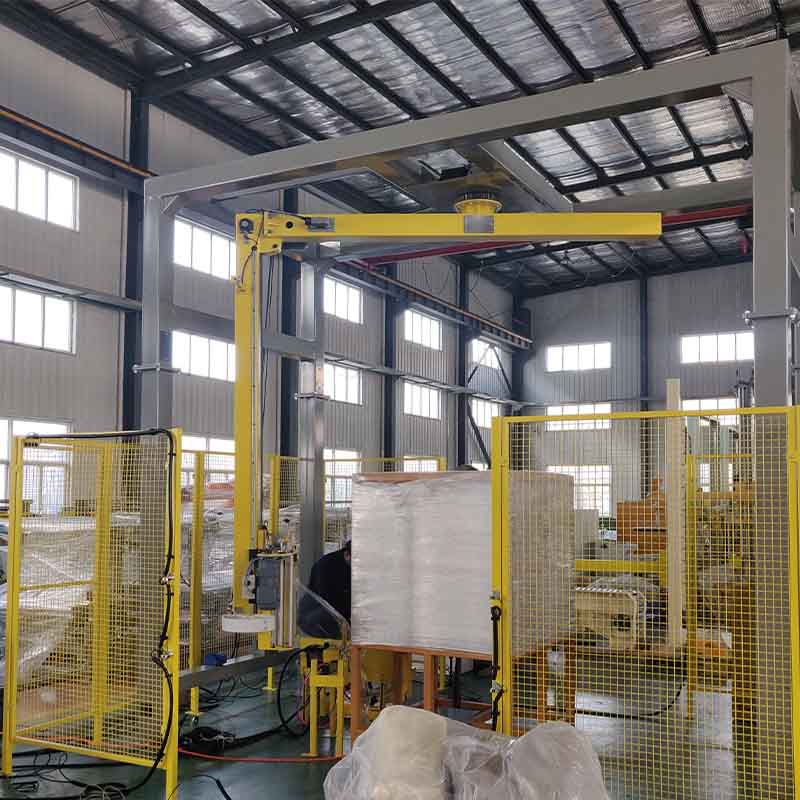

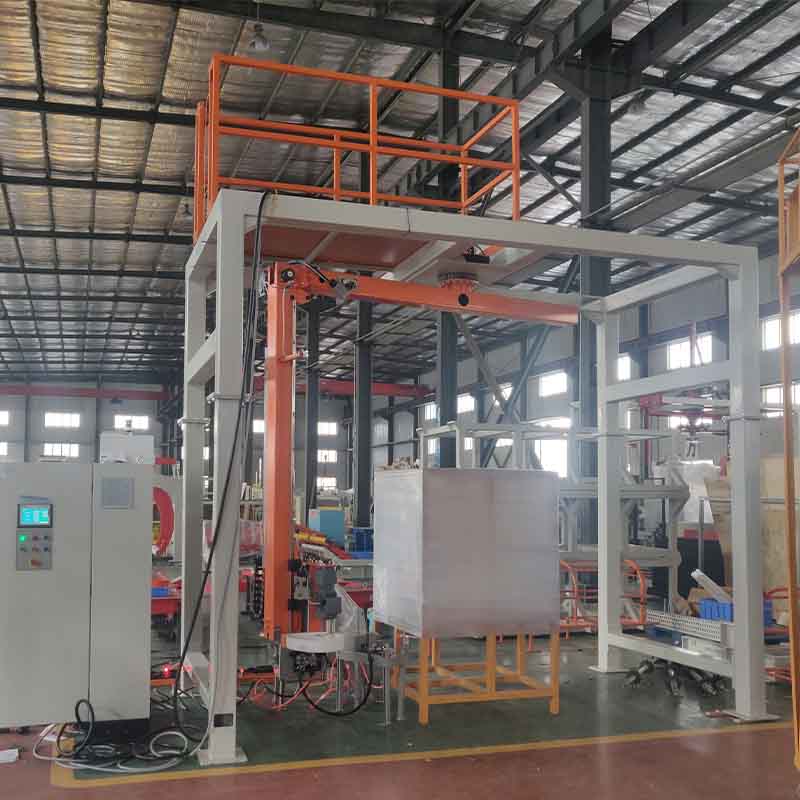

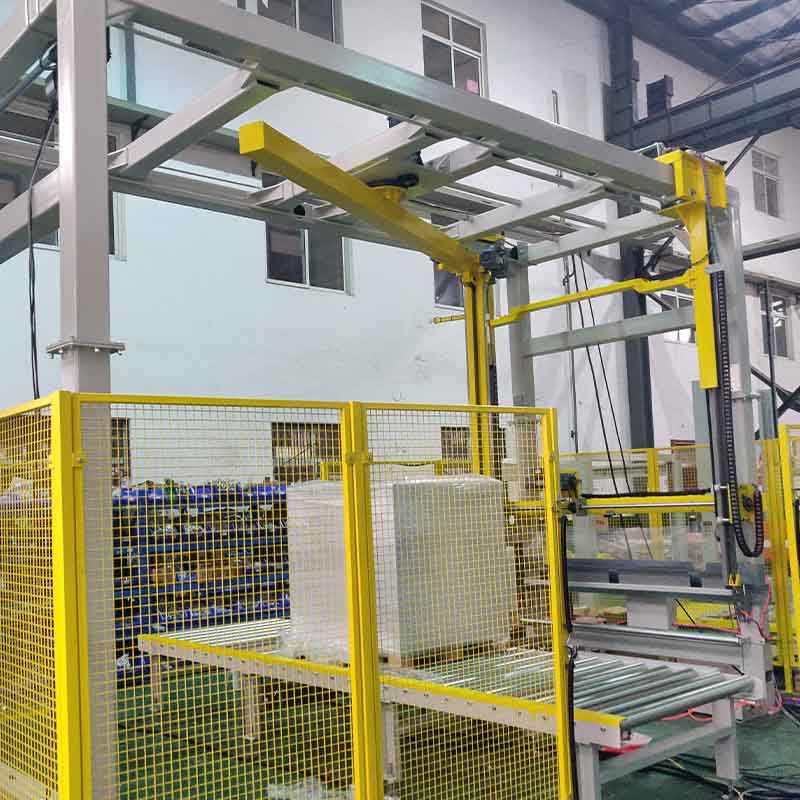

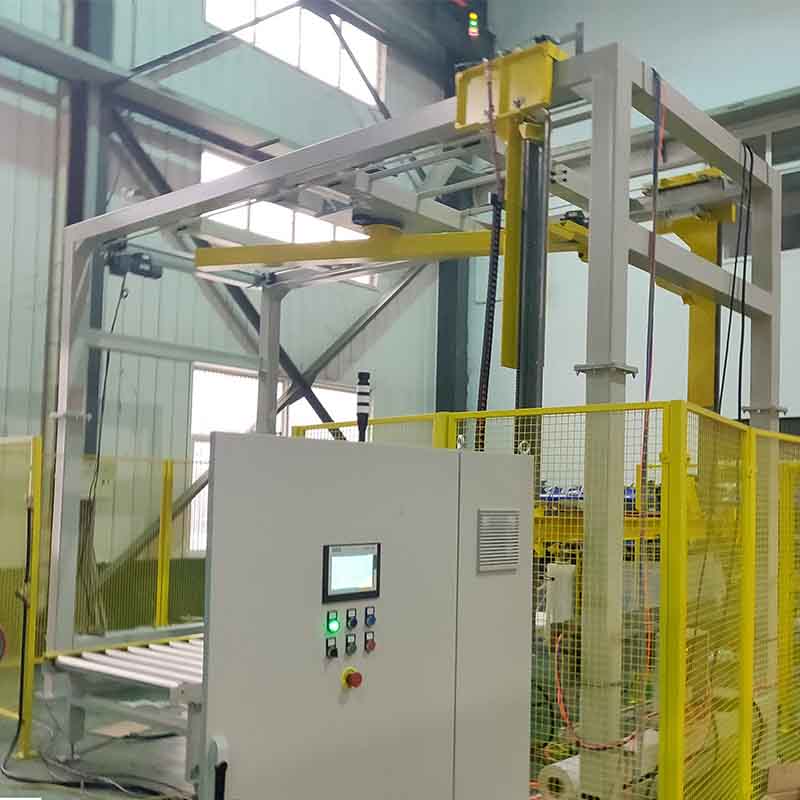

Pallet shrink film wrapping machine
We are the first manufacturer of rotary arm wrappers in China and have accumulated detailed and advanced method to keep the machine working in normal and function well with other machines.
Item | Specification |
Wrapping specifications | (500-1300)mm*(500-1200)mm. |
Packing height | 2400mm |
Packaging efficiency | 0-70 loads/H available. (Option: or 20-40 loads/H) |
Arm speed | 0-35rpm frequency control. (Option 15rpm, 25rpm) |
Arm performance | High sensitivity emergency brake system, the arm automatically reset. |
Film carriage system | Pre-stretch film carriage, stretch ratio up to 300%, automatic film feeding & cutting device, adjustable speed. |
Lifting column | Chain structure, speed variable frequency adjustable. |
Control system | PLC programmable control, wrapping layer adjustable, automatic height sense. |
Machine weight | 680KG (without support) |
Machine dimensions | 3440mm*1800mm*3220mm (without convey line) |
Power/ voltage | Arm 1.1/1.5kw, Film carriage 0.37kw, lift 0.37kw/0.55kw, conveyor 0.75kw/AC220V |
Option: 1. Safety warning and protection fence, Photo-eye protection for infeed and outfeed goods (Conveyor line); | |
Powered pre-stretch system up to 1:2.5 to min film consumption(Prestretch ratio can be specially made according your requirements.)
Film delivery variable speed by separate AC Drive Motor
Film dancer-bar with variable speed output
Rotating Power slip ring provide power required for carriage drive on rotary arm.
