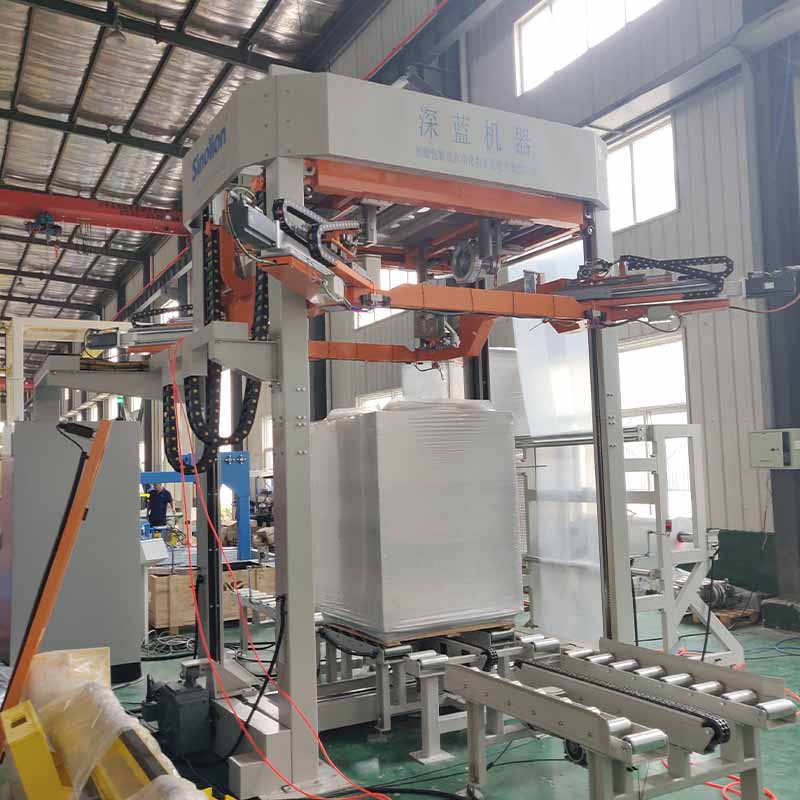

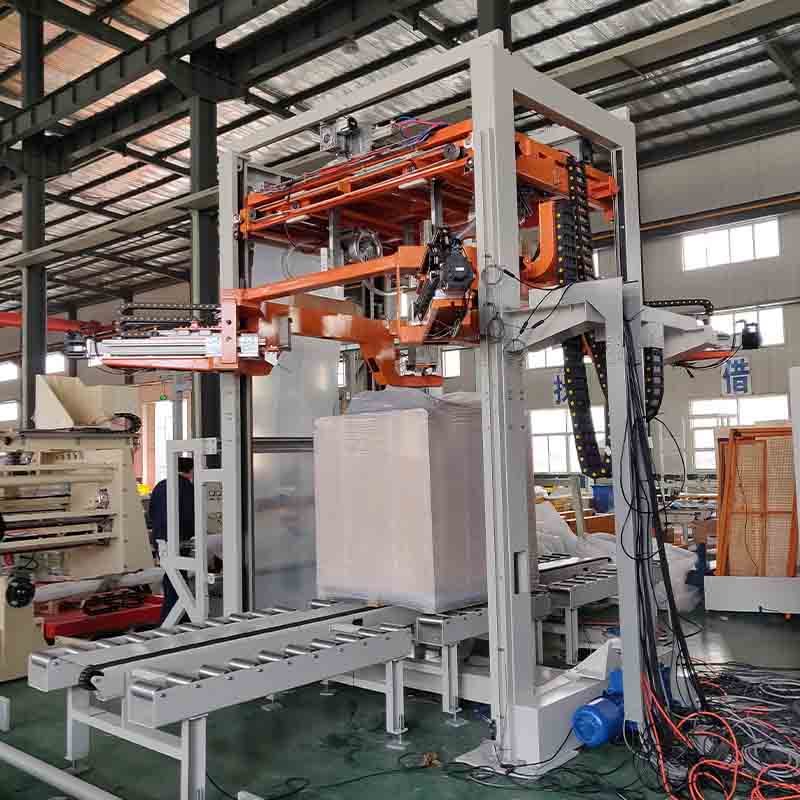

Orbital ring stretch wrapper high speed for pallet
Automatic orbital ring wrapping machine for pallet wrapping with high efficiency.
Item | Specification |
Wrapping specifications | (500-1300)mm*(500-1200)mm. |
Packing height | 2400mm |
Packaging efficiency | 30-60 loads/H available. (Option: or 20-40 loads/H) |
Arm speed | 0-25rpm frequency control. (Option 15rpm, 35rpm) |
Arm performance | High sensitivity emergency brake system, the arm automatically reset. |
Lifting column | Chain structure, speed variable frequency adjustable. |
Machine dimensions | 3440mm*1800mm*3220mm (without convey line) |
Option: Safety warning and protection fence, Photo-eye protection for infeed and outfeed goods (Conveyor line) | |

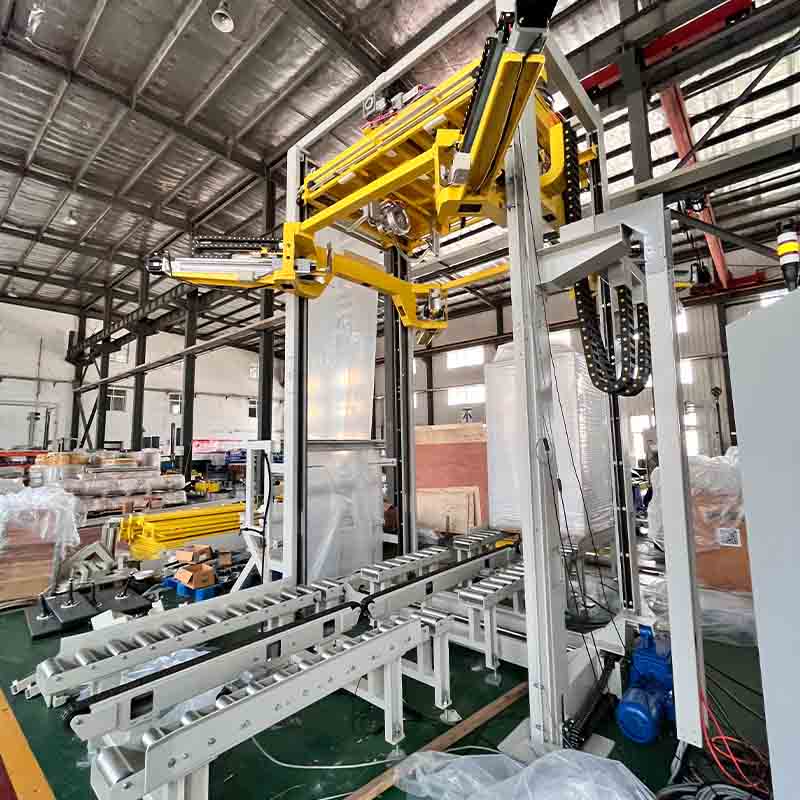

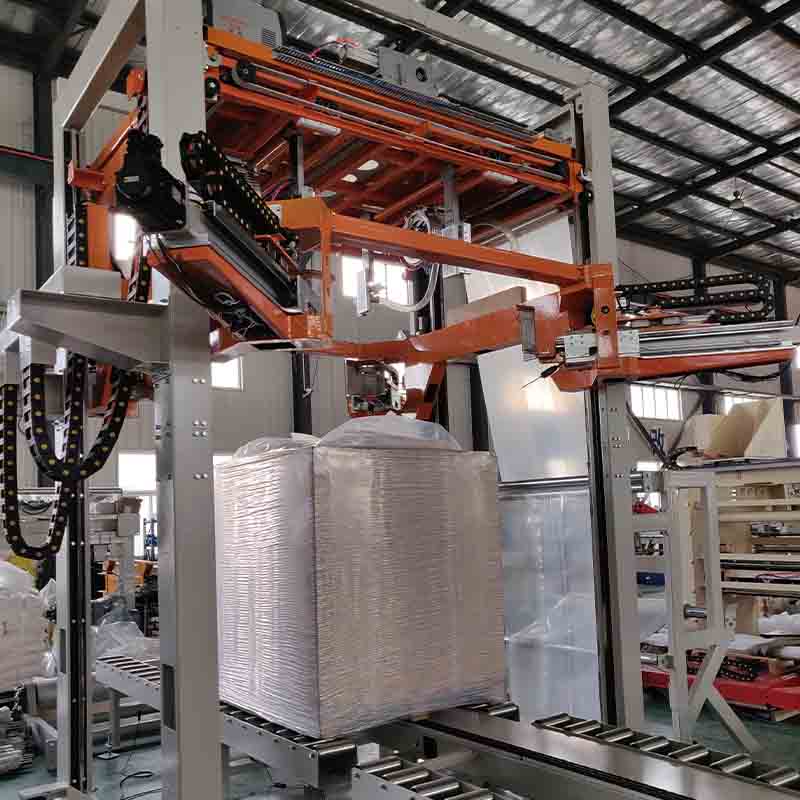

Film head rotate with ring, analog control for flexible film delivery speed;
Conduct trolley to supply power for film pre-stretch, good performance when running to save wrapping material;
Plug between main control cabinet and wrapper for easier installation and maintenance.
