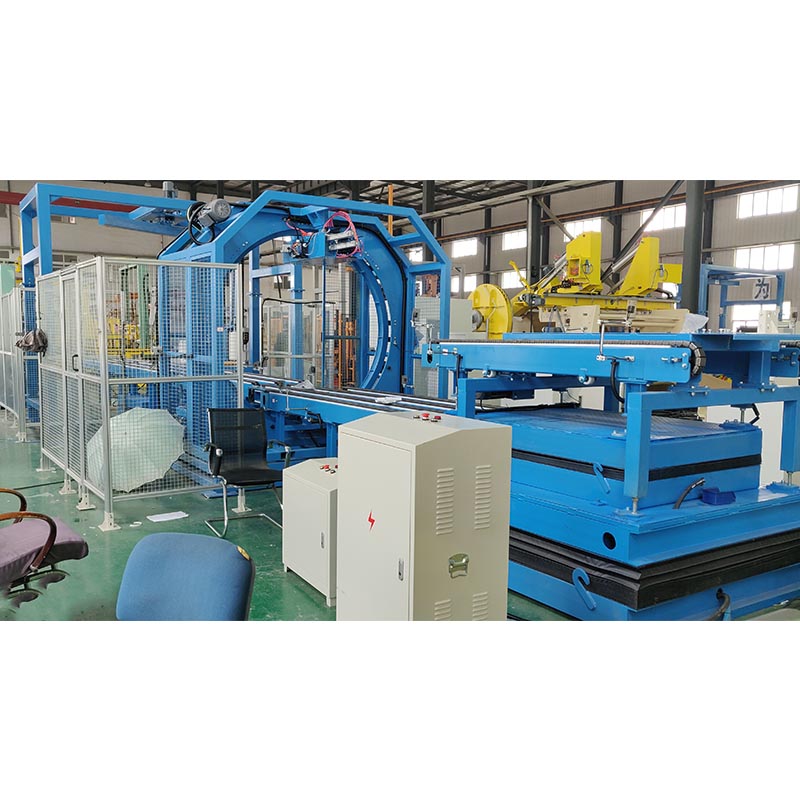

6-Sided Pallet Stretch Wrapping Machine

Orbital ring inner diameter: 1200mm.
Orbital ring height adjust by motor, to fit for different pallet height.
Infeed & outfeed top press rollers to hold pallet when wrapping.
Rotating speed: max. 30RPM, inverter adjustable.
Gearbox motor: Nord brand, 2.2kw.

Contact Now E-Mail Telephone WhatsApp

Product Details

Rotating ring inner diameter	1200-2000mm
Wrapping dimension	Width: 500-1100mm; Height: 500-1000mm; Length: 500-2000mm
Rotating ring speed	Max. 30rpm
Compressed air pressure	0.5Mpa
Air consumption	10L/M
Motor power	rotating ring: 2.2kw 380V, 60HZ, 3phase

Auto Film Wrapping Machine

Film carriage

Mechanical stretch film carriage
Stretch film thickness: 20-30μm
Film roll width: 200mm;
Film roll inner diameter: 76mm; outer diameter: max 240mm
Auto film feeding and cutting unit

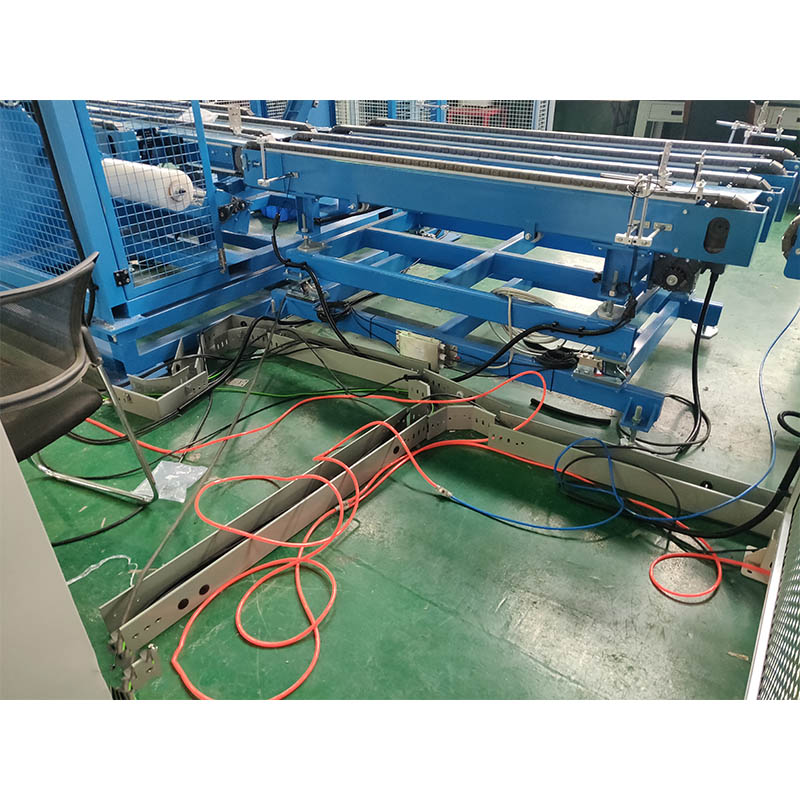

Clamp the film head for feeding, to be installed under outfeed roller conveyor
Automatically cut the film after wrapping and hold film for the next pallet;
Air consumption: 1000ml, Air pressure: 0.4-0.6Mpa

Auto Film Wrapping Machine
