Motor Orbital Ring Wrapping Machine

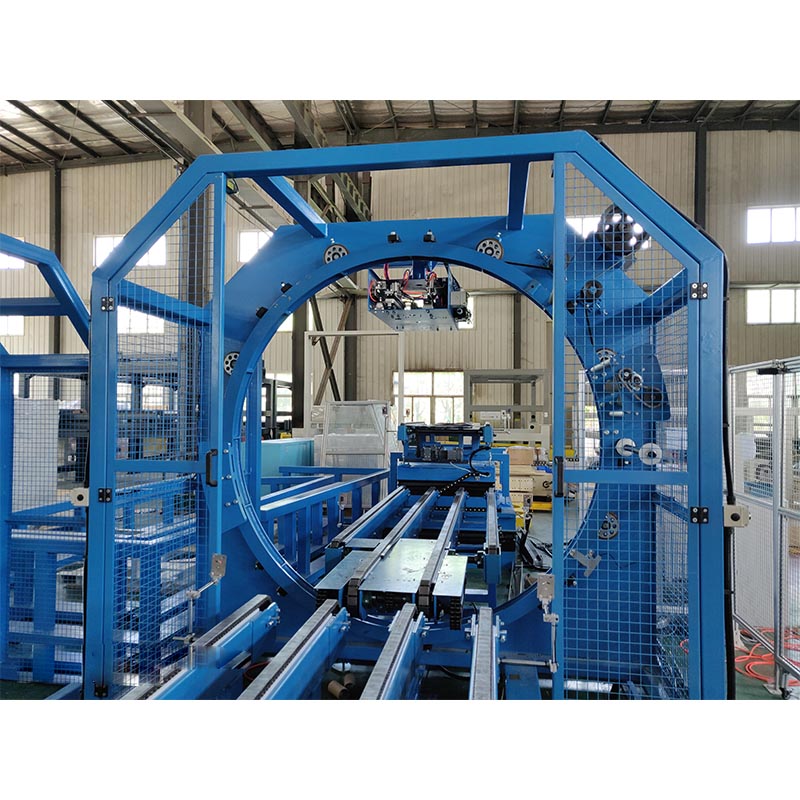

Orbital ring stretch wrapper packages motor, tube or plate that require banding, compression or extra packing for shipment. It has proven records of success in many industries such as motor, profiled product, tubular product and plank stuff etc.
Model | S1200-PL |
Rotating ring inner diameter | 1200mm |
Wrapping dimension | Width: Max. 800mm Height: Max. 800mm Length: Min.750mm Weight: Max. 2000kgs (Can be customized) |
Rotating ring speed | 20-30RPM |
Compressed air pressure | 0.5Mpa |
Air consumption | 10L/M |
Motor power | rotating ring: 2.2kw 380V, 50HZ, 3phase Conveyor: 1.5*2 |
Width: 500mm, 250mm or 100mm Core size: 76.2mm Diameter: Max. 240mm Thickness: 20-35μm |
Siemens PLC electric control system, touch screen panel
Ring rotating speed controlled by the inverter
In-feed & out-feed conveyor speed controlled by the inverter
Start and finish cycles are controlled by photocells
Auto film cutting and conveying unit
