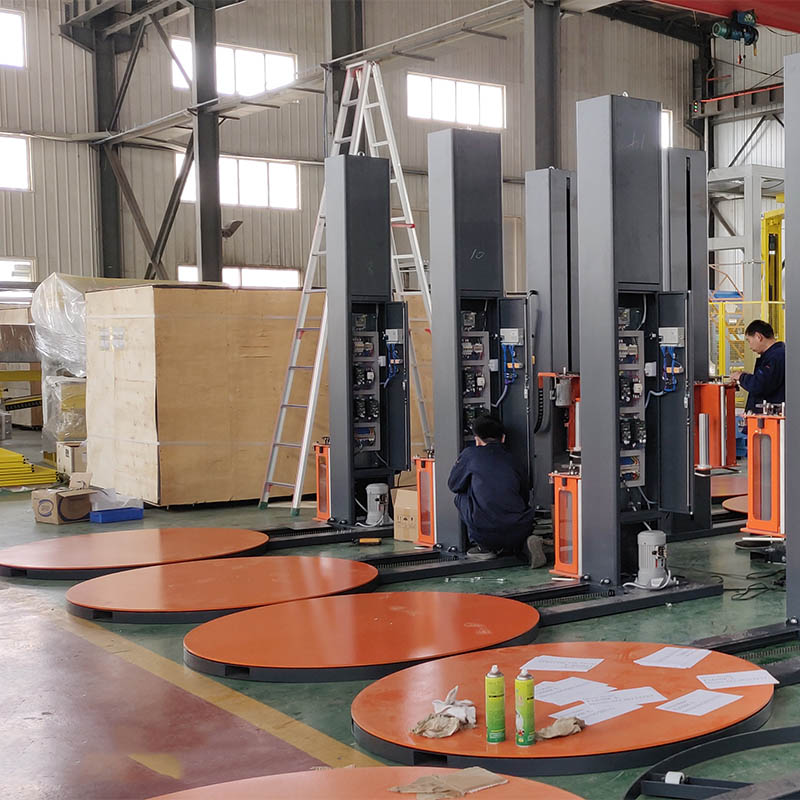

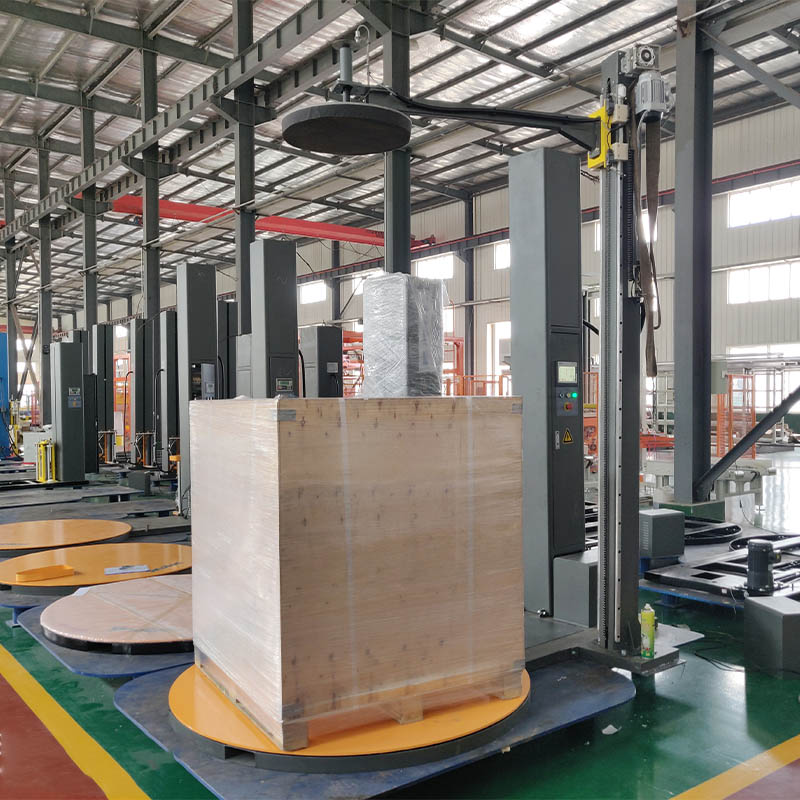

Mechanical Stretch Film Pallet Wrapper
T Series Pallet Wrapping Machine--T1650EL Semi-automatic Mechnical Stretch Wrapper --Special movie packing machine. This wrapper has been used in more than a few packaging areas widely.
Technical data
Item | Specification |
Wrapping size | 500-1200mm (L) *500-1200mm (W) |
Packaging height | Max.2400mm (1800/2800mm available) |
Work efficiency | 20-40 loads/H |
Turntable speed | 0-15RPM (adjustable, soft start & stop) |
Bearing | Max. 1500kgs |
Turntable size | D=1650mm, H=78mm |
Film carriage | Driven pre-stretch carriage, move up and down on side of the tower |
Stretch ratio | Up to 150% |
Tower | Double chain design. Lifting speed adjustable |
Control system | PLC |
Weight | 600kgs |
Dimension | 2745mm*1650mm*2860mm |
Power | Turntable 0.75kw; Tower: 0.37kw; 220V 50HZ 1Phase |
Remarks: Some parts of the machine can be exchanged according to customer requirements. Option I: Standard low profile ramp. Option II: weight scale | |
Heavy structural metal body construction
Heavy responsibility conveyor guards
Adjustable leg height
Different curler diameter and roll spacing available
Conveyor speed: 12m per minute
Photo-eye pallet sensor
Auto movie tail reduce & wipe system
Pneumatic clamp clutch the movie tail after the wrapping finished
Hot wire reduce film
Pneumatic brush activate
Option
Addition conveyor & different (chain, belt) available
Safety fence
Infeed & outfeed conveyor
