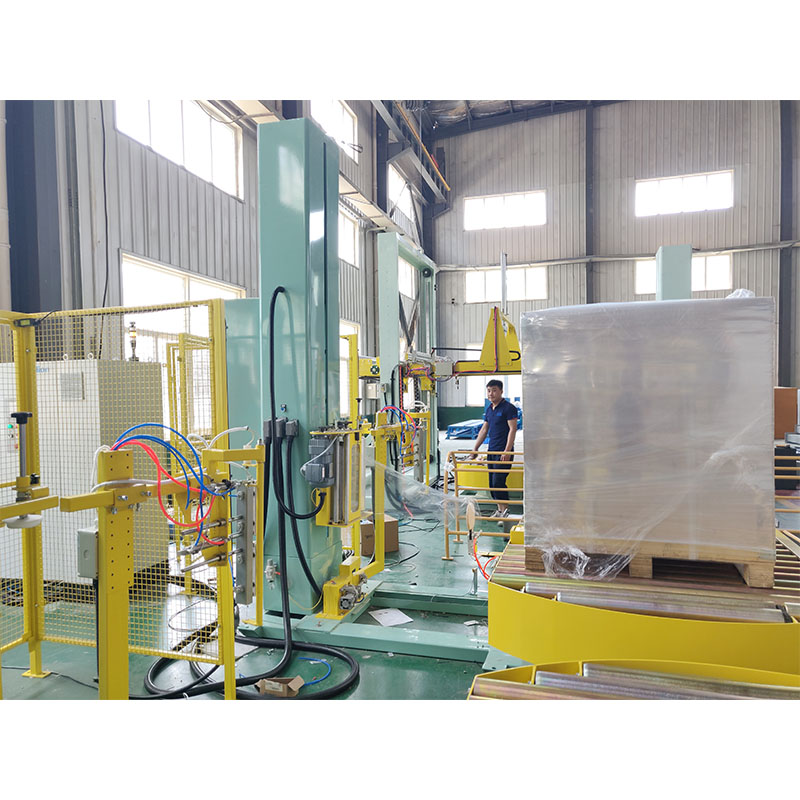

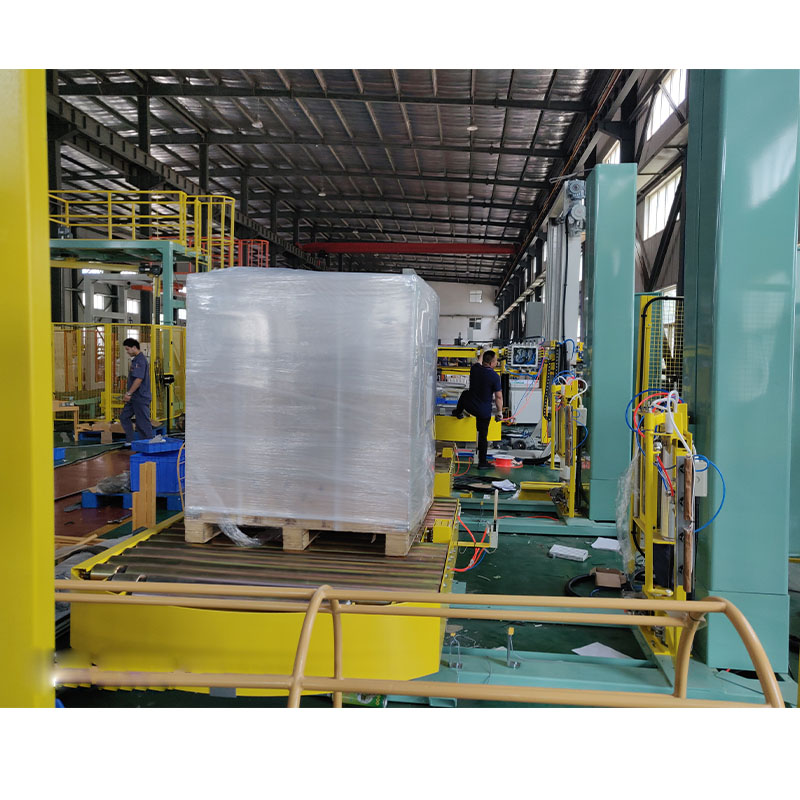

Integrated Fully Automatic Pallet Stretch Wrapping Machin
Customer infeed conveyor control system send signal to wrapper PLC before deliver pallet to wrapper, and wrapper send signal to customer outfeed conveyor after wrapping.
Safety fencing or light curtain NOT included.
Product Details
| Specification | |
| Product name | Advanced Intelligent Online Fully Automatic pallet stretch wrapping machine |
| Model | T1800FZ-PL stretch wrapping machine |
| Wrapping size | 500-1100mm(L) x 500-1100mm(W) |
| Wrapping height | Max.2400mm (1800mm/2800mm available) |
| Package | 1) Inner: Iron frame |
| 2) Outer: wooden box | |
| P.S: Customized packages are also welcome | |
| Turntable size | Dia:1800mm Height: from 490mm |
| Turntable bearing | Max. 2000kgs |
| Turntable speed | 0~15RPM (turntable transducer adjust, steady stop and start) |
| Machine weight | 700kg |
| Machine dimension | 3000*2000*2650-3650mm |
| Control system | PLC control, top & bottom wrapping circle 1-20 adjustable; auto high sense; auto turntable reset |
| Work efficiency | 20-40 loads/H |
| Film carriage system | Driven pre-stretch carriage, stretch ratio up to 300% |
| Tower | Double chain design. Lifting speed adjustable. |
| Electric | AC380V/50Hz 3phase |
| Power | Turntable 0.75kw, film carriage 0.35kw, tower 0.37kw, conveyor 0.55kw |

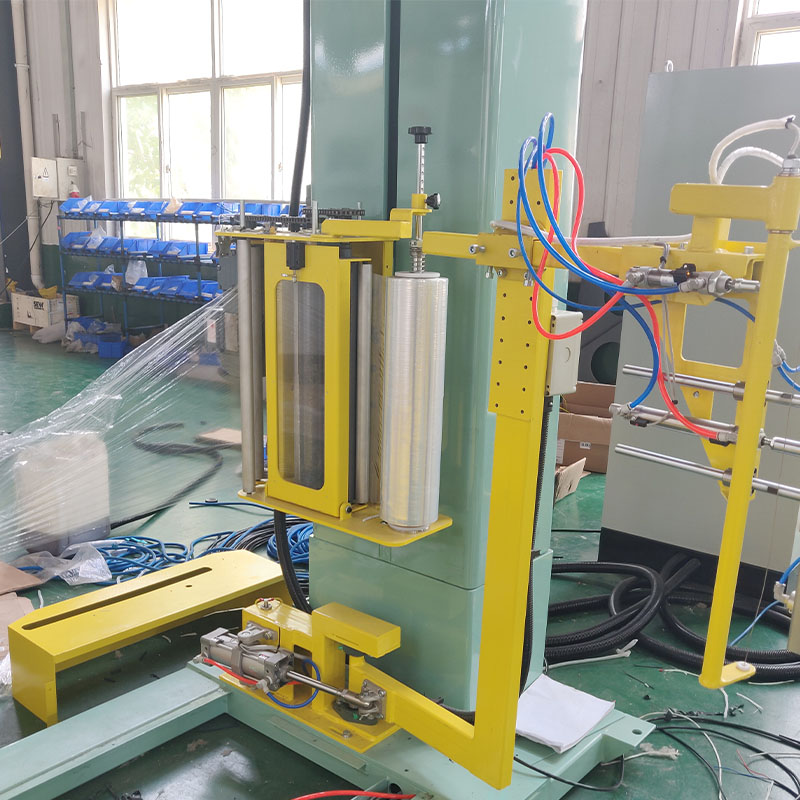

Strong steel frame to keep film carriage running steady during wrapping progress.
Height: to be designed according to the packing height 2,000-2800mm.
Carriage lift motor: SEW brand.
