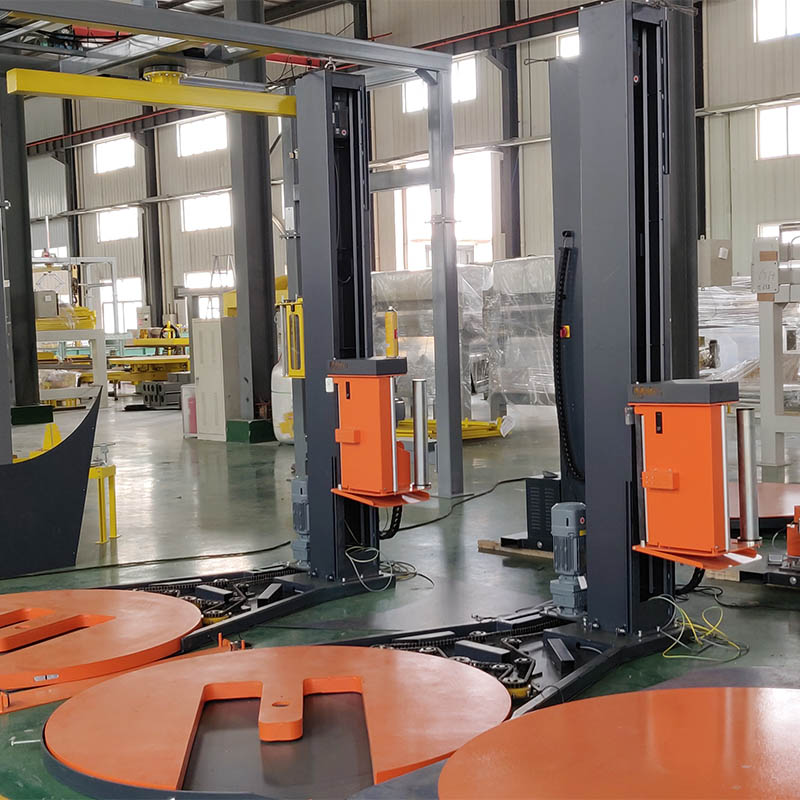

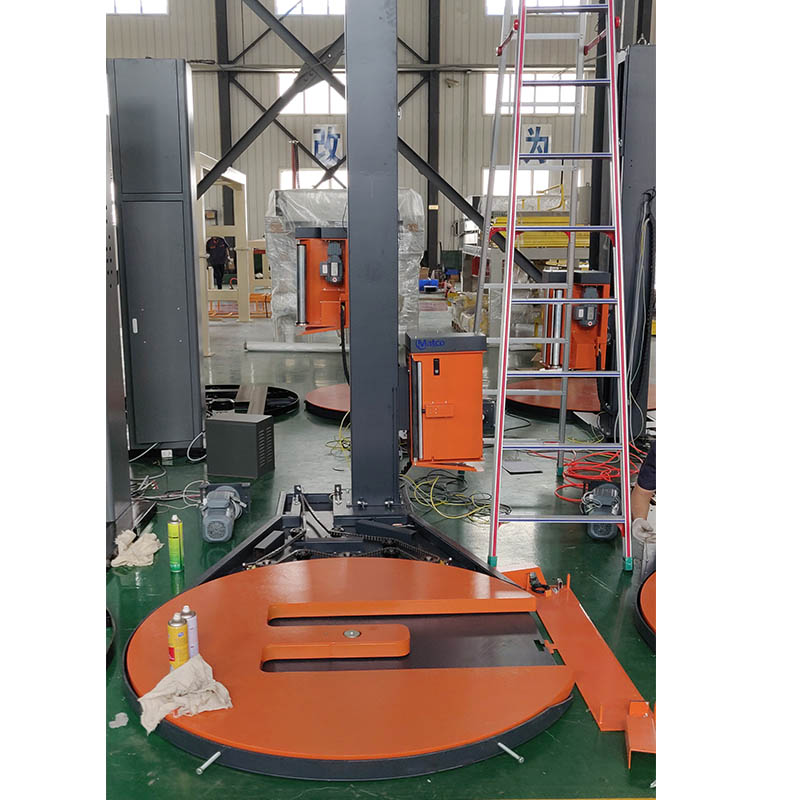

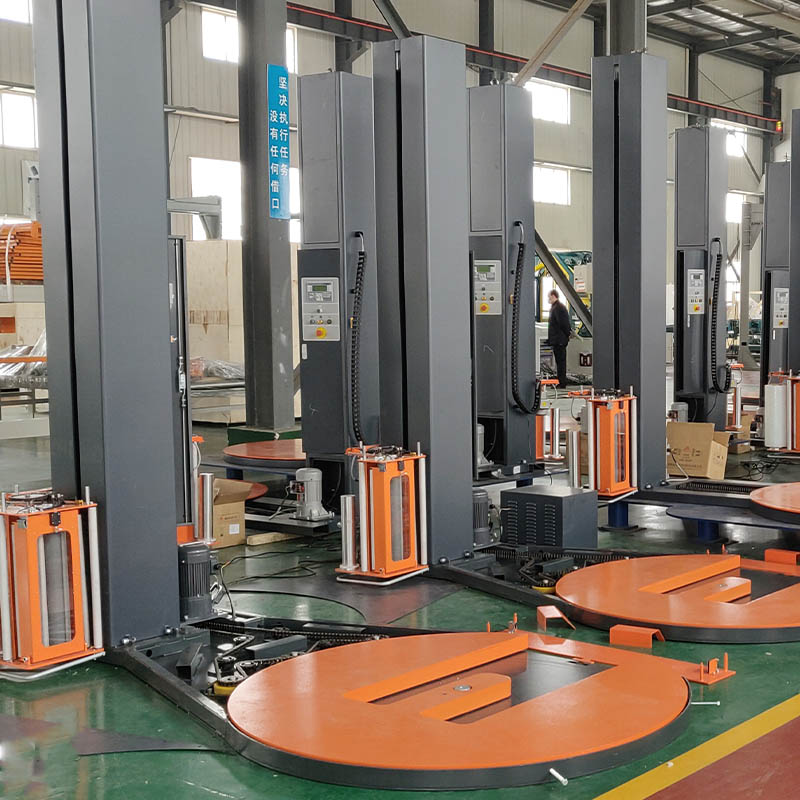

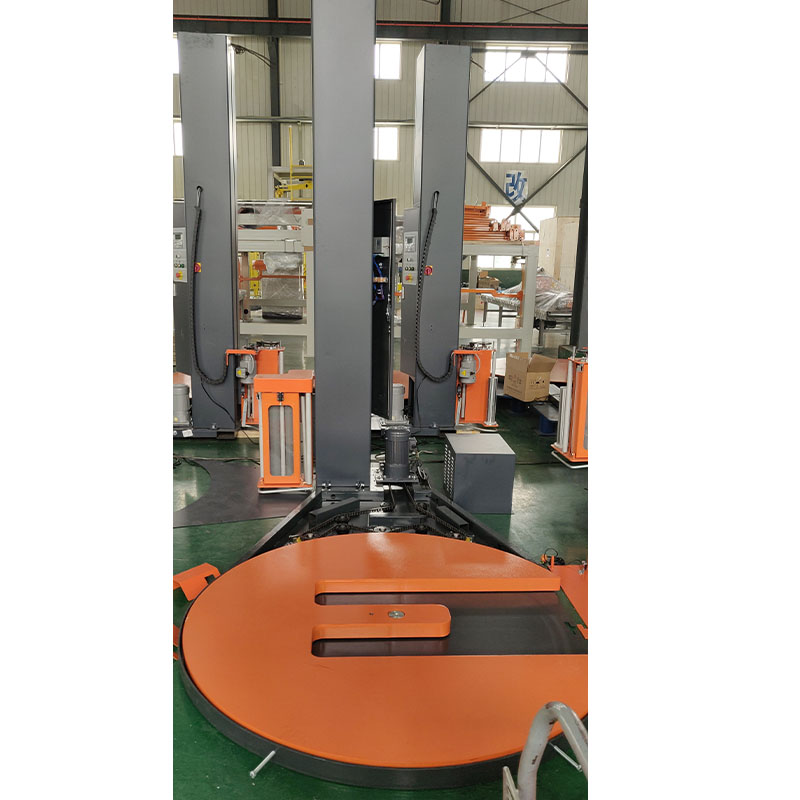

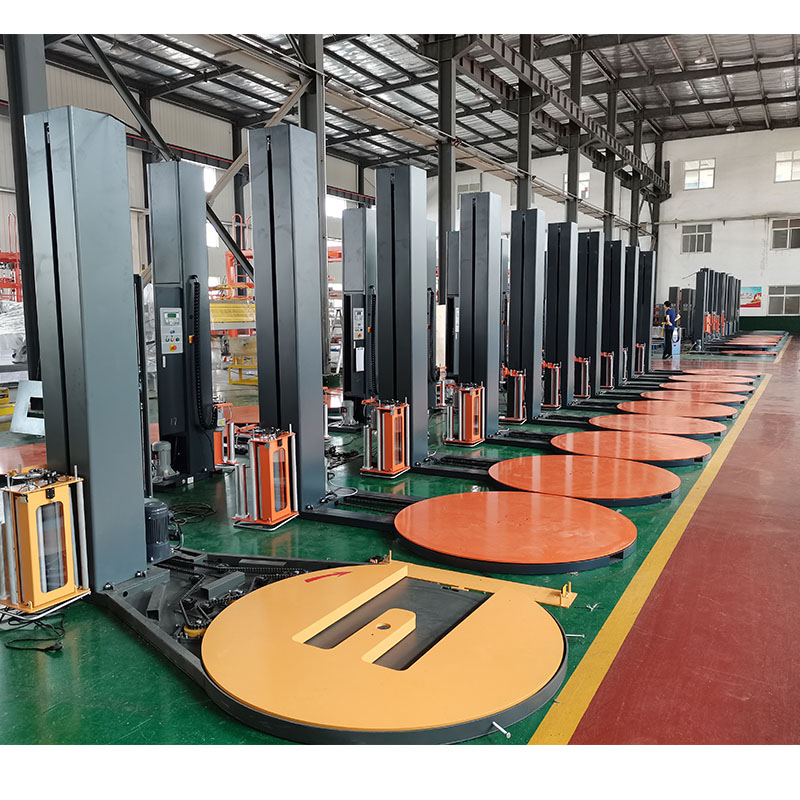

Turntable Automatic Pallet Stretch Wrapper
Stretch wrapping equipment are used to wrap stretch movie around a loaded pallet. Film offers greater guide whilst the merchandise are being transport & storage to guard them from tip, spill or emerge as damaged. Additionally, wrapped masses can without difficulty be separated and identified.
| Control system | PLC control system |
| Photo eye pallet height sensor | |
| 3-12 RPM variable turntable speed by frequency changer | |
| Turntable | Go home position after wrap cycle finished |
| Soft start/soft stop | |
| Heavy duty chain drive | |
| Film carriage | Powered pre-stretch system to 300% to min film consumption |
| Film delivery barlable speed by spparate AC Drive Motor | |
| Heavy duty double-chain carriage lift, calm and safety | |

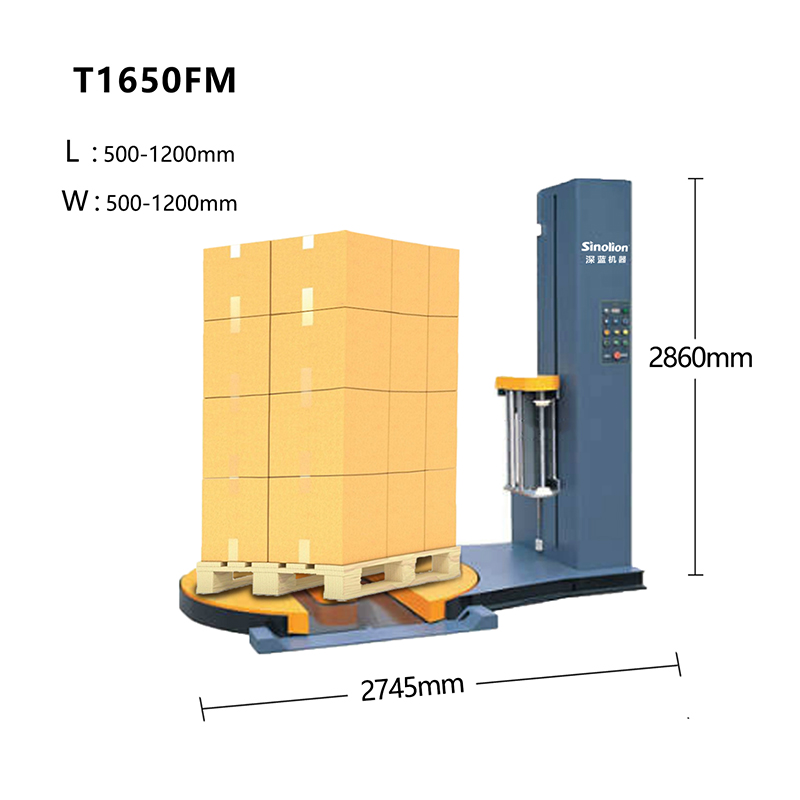

| Technology Data | Max load size(mm): 1200(L)X1200(W)X2400(H) |
| Turntable dia: 1650mm | |
| Turntable Height: 77mm | |
| Turntable weight capacity: 2000kgs | |
| Turntable speed: 3-12rpm | |
| Electrics: 220V 50HZ 1 phase | |
| Power: 1.5KW | |
| Packing efficiency: 20-40 load/h base on load | |
| Option | Ramp |
| Top plate |
The electric control should have three control methods: test (manual), automatic, and online. The online control should be interlocked with the fire control so that the fire door can quickly cut off the fire source.
The selection of mechanical equipment, electrical equipment, each subsystem, and supporting parts on each stand-alone machine should be coordinated and unified.
Film carriage
Powered pre-stretch system to 300% to min film consumption
Film delivery barlable speed by spparate AC Drive Motor
Heavy duty double-chain carriage lift, calm and safety
