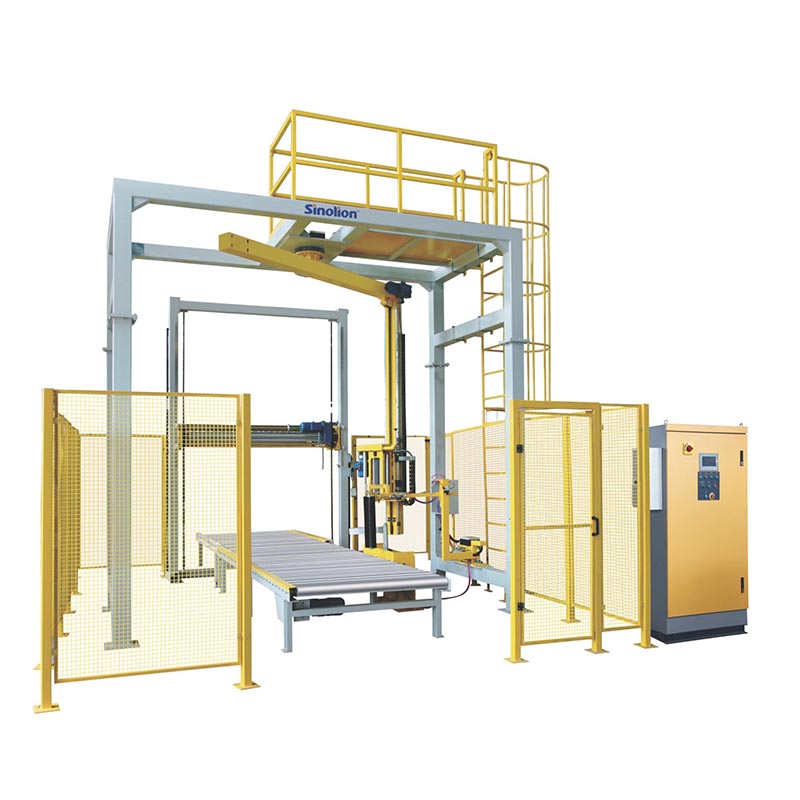

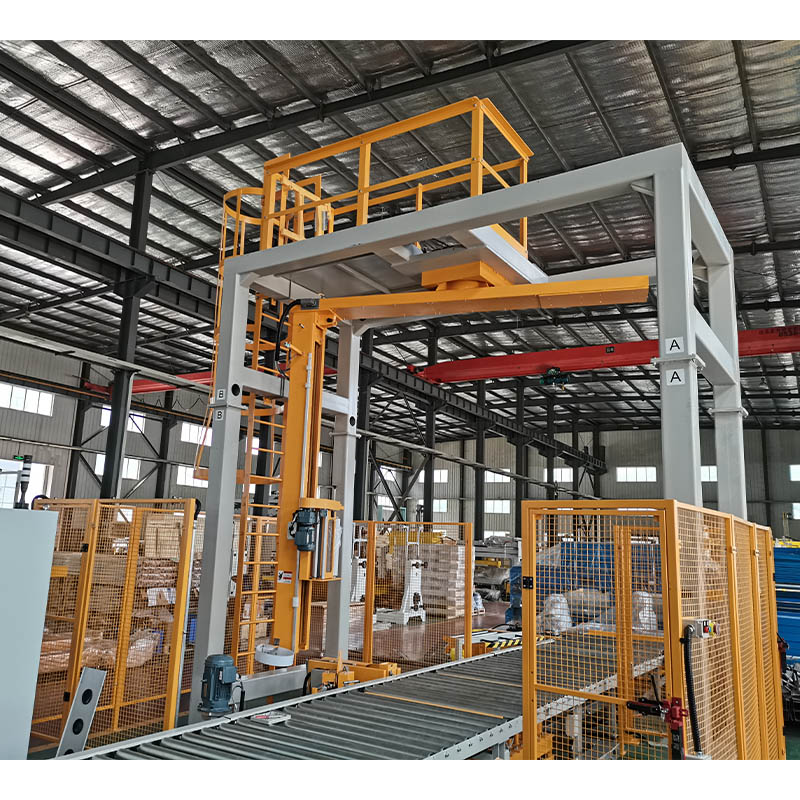

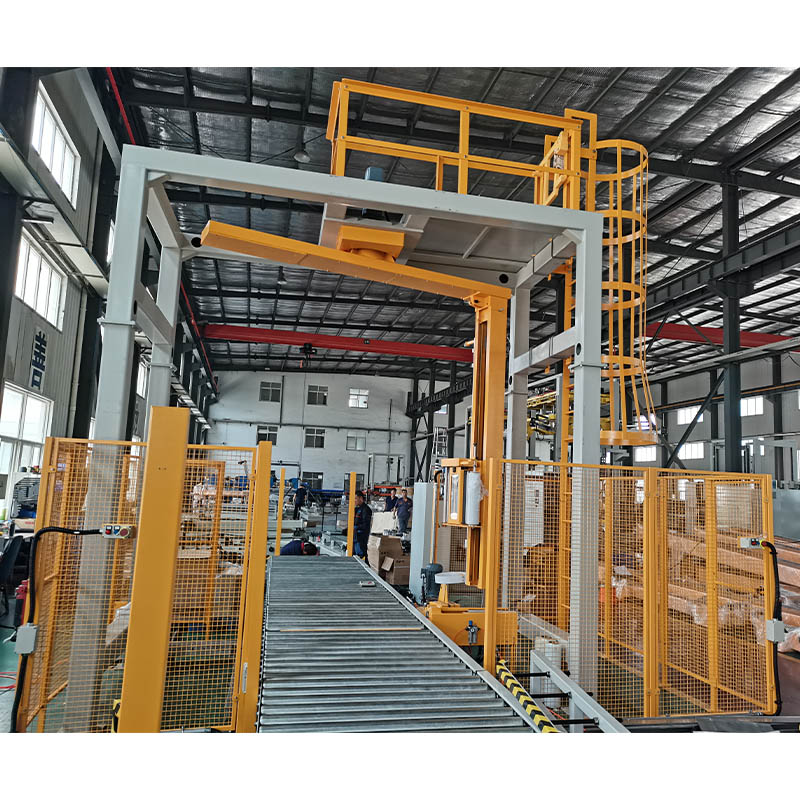

High Tension Pallet Wrapper Stretch Film Rotary Arm Wrapping Machine

The maximum rotary speed of arm can up to 35 rpm. It will save labour cost obviously.

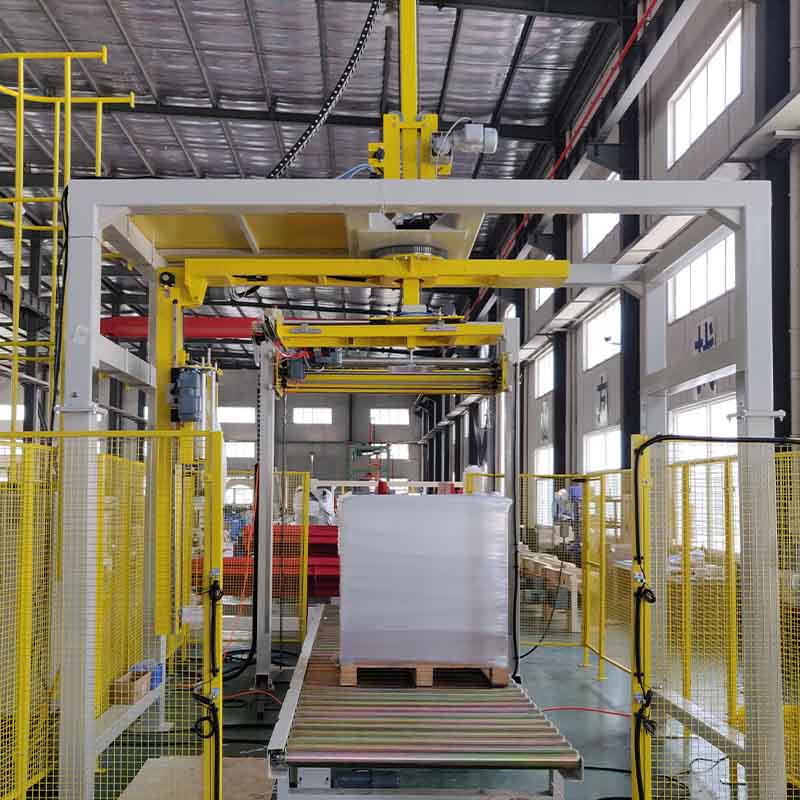

The top platen will keep the stability of the pallet to ensure excellent wrapping results.

Contact Now E-Mail Telephone WhatsApp

Product Details

Item	Specification
Wrapping specifications	(500-1300)mm*(500-1200)mm.
Packing height	2400mm
Packaging efficiency	30-60 loads/H available. (Option: or 20-40 loads/H)
Arm speed	0-35rpm frequency control. (Option 15rpm, 25rpm)
Arm performance	High sensitivity emergency brake system, the arm automatically reset.
Film carriage system	Pre-stretch film carriage, stretch ratio up to 300%, automatic film feeding & cutting device, adjustable speed.
Lifting column	Chain structure, speed variable frequency adjustable.
Control system	PLC programmable control, wrapping layer adjustable, automatic height sense.
Machine weight	680KG (without support)
Machine dimensions	3440mm1800mm3220mm (without convey line)
Power/ voltage	Arm 1.1/1.5kw, Film carriage 0.37kw, lift 0.37kw/0.55kw, conveyor 0.75kw/AC220V
Option: Safety warning and protection fence, Photo-eye protection for infeed and outfeed goods (Conveyor line)

Packaging Machine

Control System --PLC control
--Reinforce wrap allow more wrap on same location
--Film Tension Control adjustment on the panel
--0-35RPM arm variable speed by frequency changer
--Separate variable carriage up/down speed
--Cycle pause capability
--Separate start, reset and emergency stop buttons
--Manual carriage up/down switch
--Turntable jog button
--Flash light for machine in operation
--Rotary arm stop by safety bumper and reflection photoeye sensing and obstacle in the rotating area
