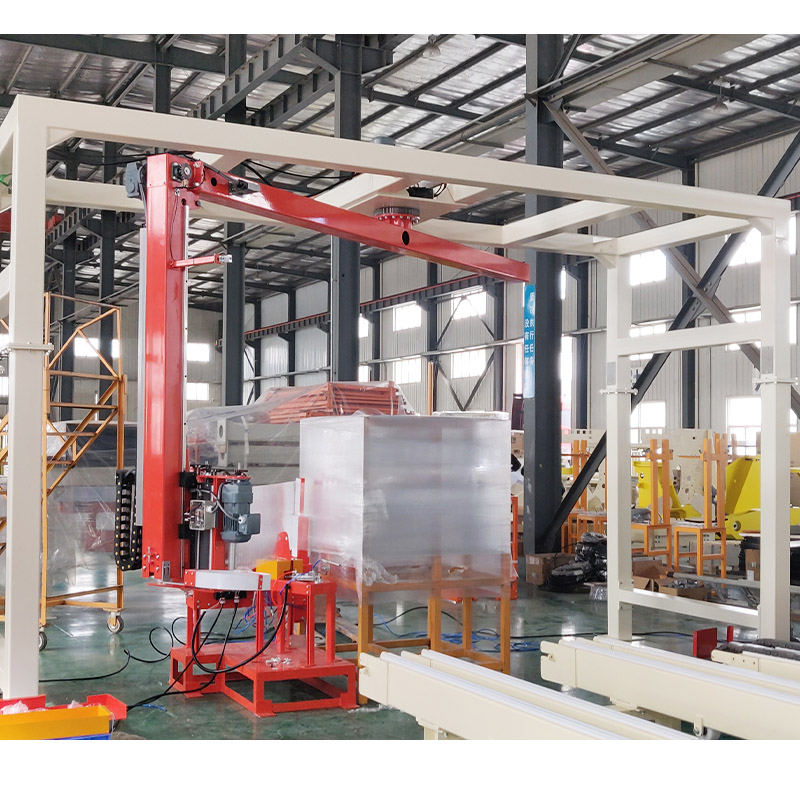

Automatic Stretching Film Rocker Arm Winding Wrapping Machine
Automatic pallet strapping and wood strip
Basic requirement:
Product: construction material
Pallet load dimension: 2440mm*1220mm*1200mm;
Wood strip dimension: 1220mm*100mm*80mm
Weight: 3000KG(MAX)
Packing efficiency: ≤25loads/H
Powder coating: color can be customized
Product Details
| Wrapping specification | (500-1300)mm*(500-1200)mm. |
| Packing height | Standard 2400mm. |
| Packaging efficiency | 30-60 loads/H availiable. |
| Arm speed | 0-15rpm, 0-25rpm frequency control. |
| Arm performance | High sensitivity emergency brake system, the arm automatically reset. |
| Film carriage system | Pre-stretch film carriage, ratio up to 300%, automatic film feeding & cutting device adjustable speed. |
| Arm | Chain structure, speed variable frequency adjustable. |
| Control system | PlC programmable control, wrapping layer adjustable. Automatic height sense. |
| Safeguard | Safety warning and protection fence (optional), Photo-eye protection for in feed. And outfeed goods (transmission line) |
| Machine dimensions | 3440mm*1800mm*3220mm (without convey line) |
| Power/ voltage | Arm 1.1kw/1.5kw, Film carriage 0.37. Lift 0.37kw/ 0.55kw. Conveyor 0.75kw/AC220V |

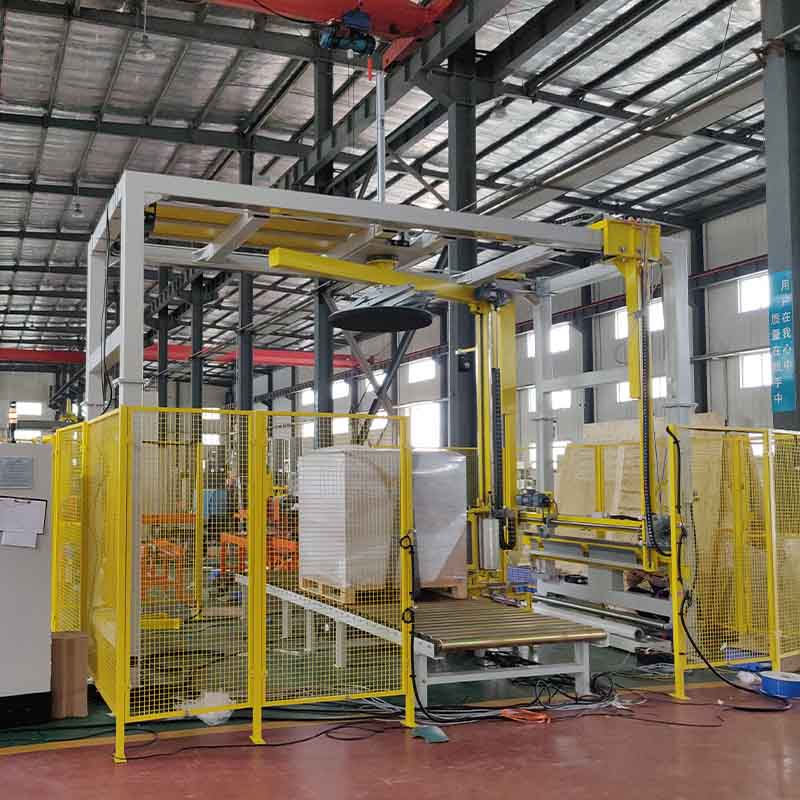

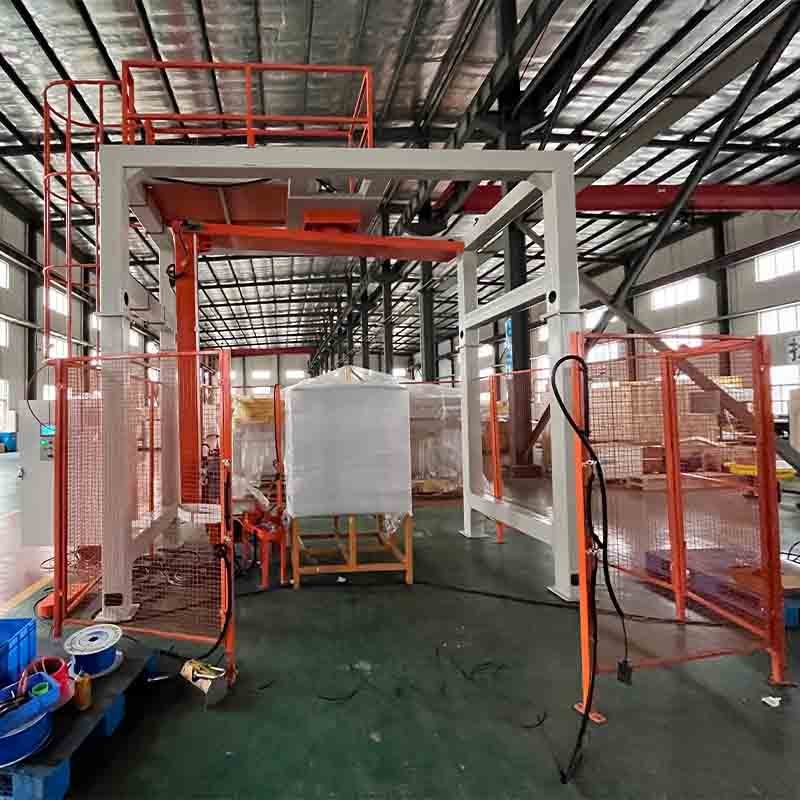

Rotate Arm Pallet Stretch Wrapper is mainly used for the packaging of big cargo or pallet that needs to be transport or stored.
The pallet load/cargo is loaded onto the rotating which carries the pallet/cargo rotates so as to wrap the goods around. It is widely used in glass products, hardware, electronic appliances, paper-making, ceramics, chemicals, food & beverages, building materials and so on.
