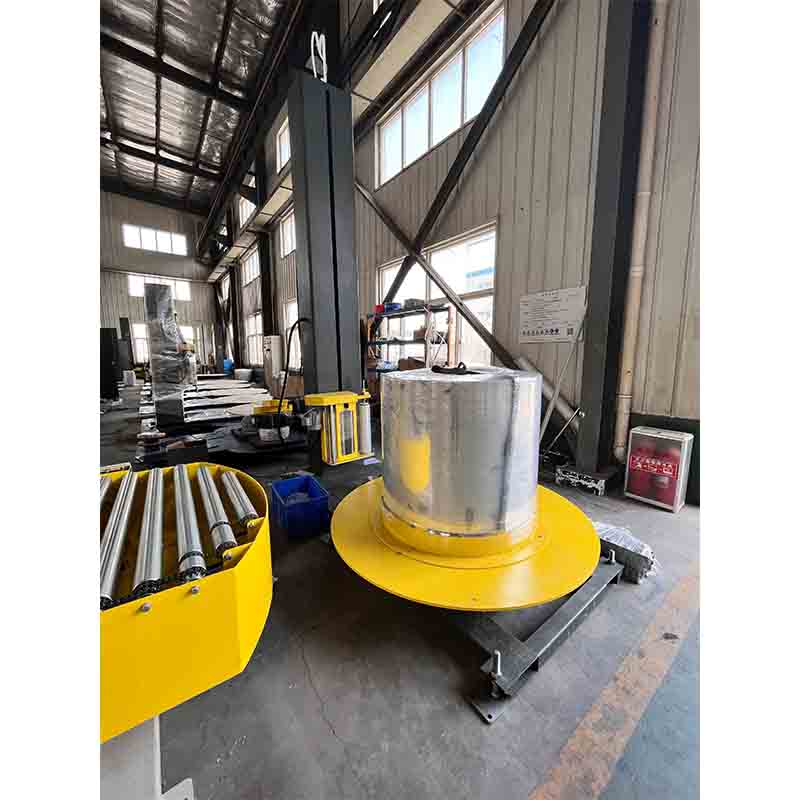

Carton Wrapper with Stretch Film Wrapping Machine
PLC control system with touch screen, 8 sets of parameter settings available
Cutting wire to cut film automatically after wrapping finished
Film tension control adjustable; Carriage up/down speed adjustable
Product Details
| Control system | PLC control system |
| Photo eye pallet height sensor | |
| 3-12 RPM variable turntable speed by frequency changer | |
| Turntable | Go home position after wrap cycle finished |
| Soft start/soft stop | |
| Heavy duty chain drive | |
| Film carriage | Powered pre-stretch system to 300% to min film consumption |
| Film delivery barlable speed by spparate AC Drive Motor | |
| Heavy duty double-chain carriage lift, calm and safety | |
| Technology Data | Max load size(mm): 1200(L)X1200(W)X2400(H) |
| Turntable dia: 1650mm | |
| Turntable Height: 77mm | |
| Turntable weight capacity: 2000kgs | |
| Turntable speed: 3-12rpm | |
| Electrics: 220V 50HZ 1 phase | |
| Power: 1.5KW | |
| Packing efficiency: 20-40 load/h base on load | |
| Option | Ramp |
| Top plate |
Customer infeed conveyor control system send signal to wrapper PLC before deliver pallet to wrapper, and wrapper send signal to customer outfeed conveyor after wrapping.
