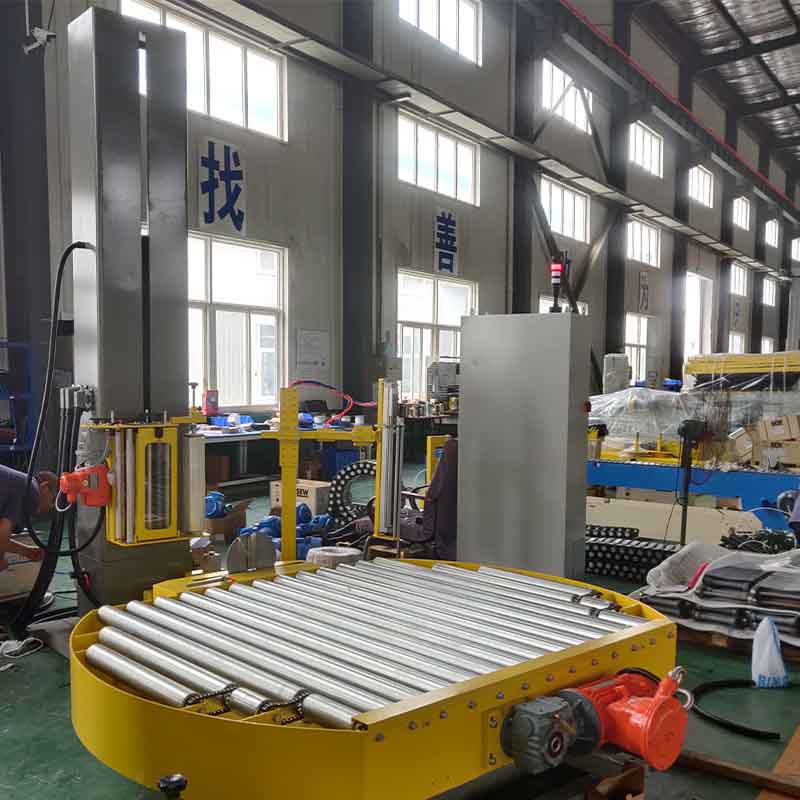

Automatic Pallet Stretch Wrapping Machine
It is designed for tall stacked loads which are unstable or great heavy to be rotated. It is mainly used in the wrapping of beverage, food and other industries. It is easy to be set up and operated. Pre-stretch film carriage will save the stretch films and protect the environment.
Item | Specification |
Wrapping specifications | (500-1300)mm*(500-1200)mm. |
Packing height | 2400mm |
Packaging efficiency | 30-60 loads/H available. (Option: or 20-40 loads/H) |
Arm speed | 0-25rpm frequency control. (Option 15rpm, 35rpm) |
Arm performance | High sensitivity emergency brake system, the arm automatically reset. |
Film carriage system | Pre-stretch film carriage, stretch ratio up to 250%, automatic film feeding & cutting device, adjustable speed. |
Lifting column | Chain structure, speed variable frequency adjustable. |
Control system | PLC programmable control, wrapping layer adjustable, automatic height sense. |
Machine weight | 680KG (without support) |
Machine dimensions | 3440mm*1800mm*3220mm (without convey line) |
Power/ voltage | Arm 1.1/1.5kw, Film carriage 0.37kw, lift 0.37kw/0.55kw, conveyor 0.75kw/AC220V |
Option: Safety warning and protection fence, Photo-eye protection for infeed and outfeed goods (Conveyor line) | |
Conduct trolley to supply power for film pre-stretch, good performance when running to save wrapping material;
Plug between main control cabinet and wrapper for easier installation and maintenance.
