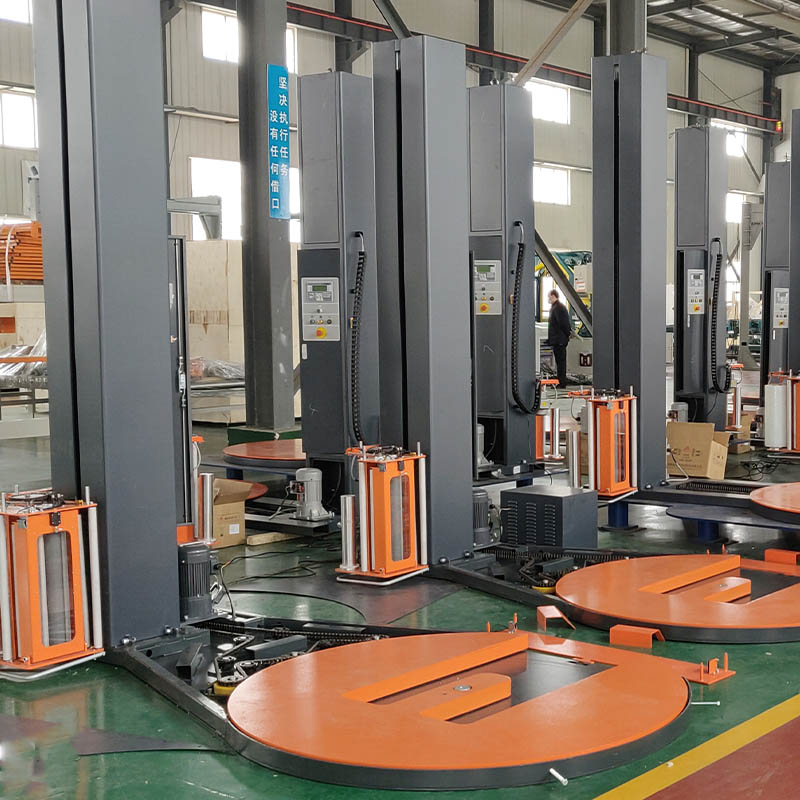

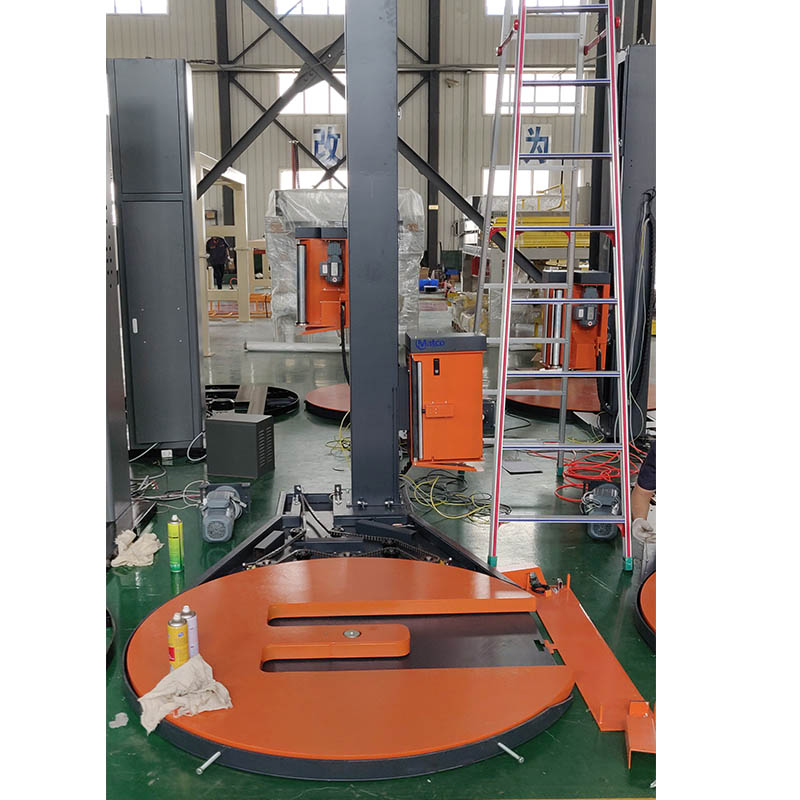

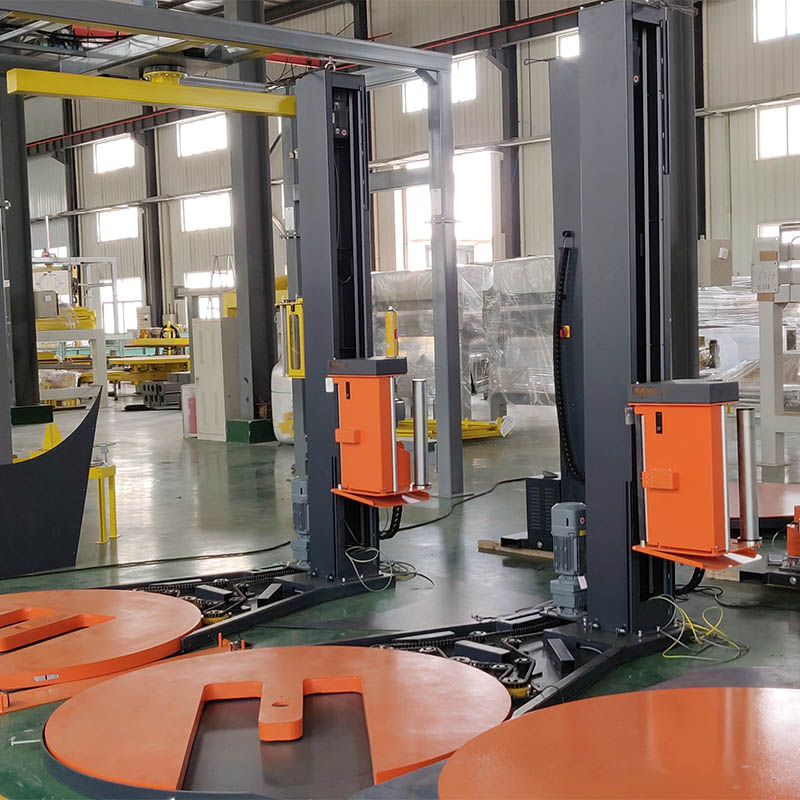

Automatic large size pallet wrapping machine
That can be operated on line with other automatic machines. It is designed for high stacked loads that are unstable or too heavy to be rotated. It is mainly applied in the wrapping operation of beverage, food and other industries. It is easy to be operated. Pre-stretch carriage can save lots of stretch films and protect the environment.
Item | Specification |
Wrapping specifications | (500-1300)mm*(500-1200)mm. |
Packing height | 2400mm |
Packaging efficiency | 30-60 loads/H available. (Option: or 20-40 loads/H) |
Arm speed | 0-25rpm frequency control. (Option 15rpm, 35rpm) |
Arm performance | High sensitivity emergency brake system, the arm automatically reset. |
Film carriage system | Pre-stretch film carriage, stretch ratio 1:2.5, auto film cutting & seal device, adjustable speed. |
Lifting column | Chain structure, speed variable frequency adjustable. |
Control system | PLC programmable control, wrapping layer adjustable, automatic height sense. |
Machine weight | 680KG (Without support) |
Machine dimensions | 3440mm*1800mm*3220mm (Without convey line) |
Power/ voltage | Arm 1.1/1.5kw, Film carriage 0.37kw, lift 0.37kw/0.55kw, conveyor 0.75kw/AC220V |
Option: Safety warning and protection fence, Photo-eye protection for infeed and outfeed goods (Conveyor line) | |
Powered pre-stretch system up to 1:2.5 to min film consumption(Prestretch ratio can be specially made according your requirements.)
