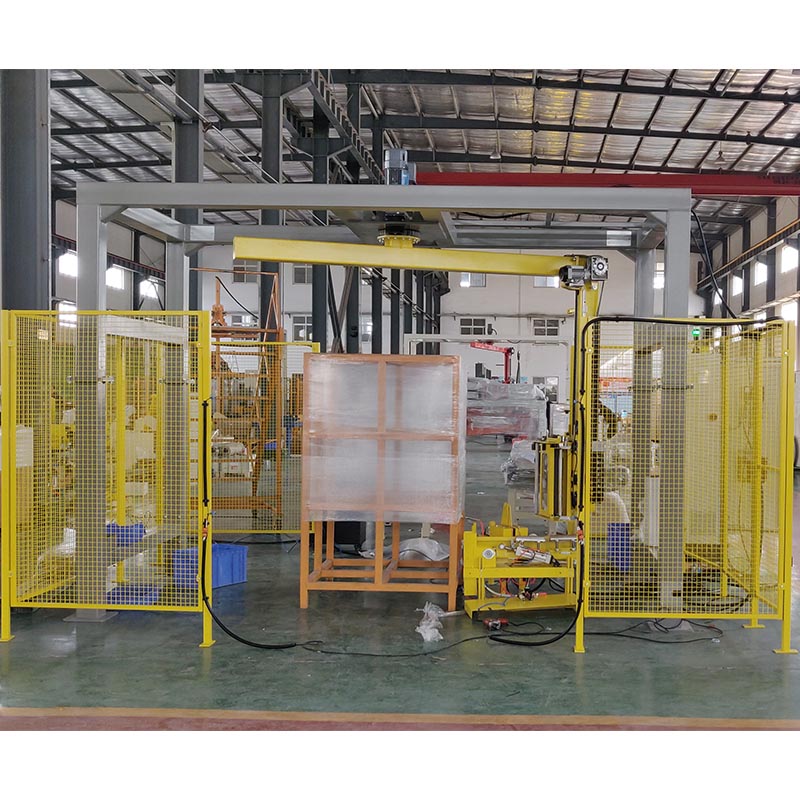

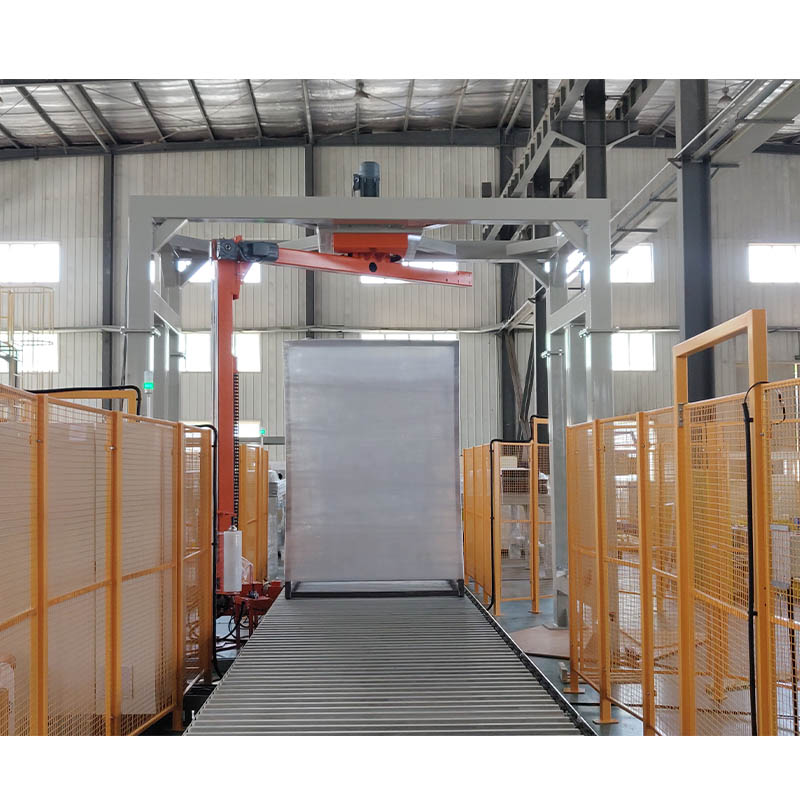

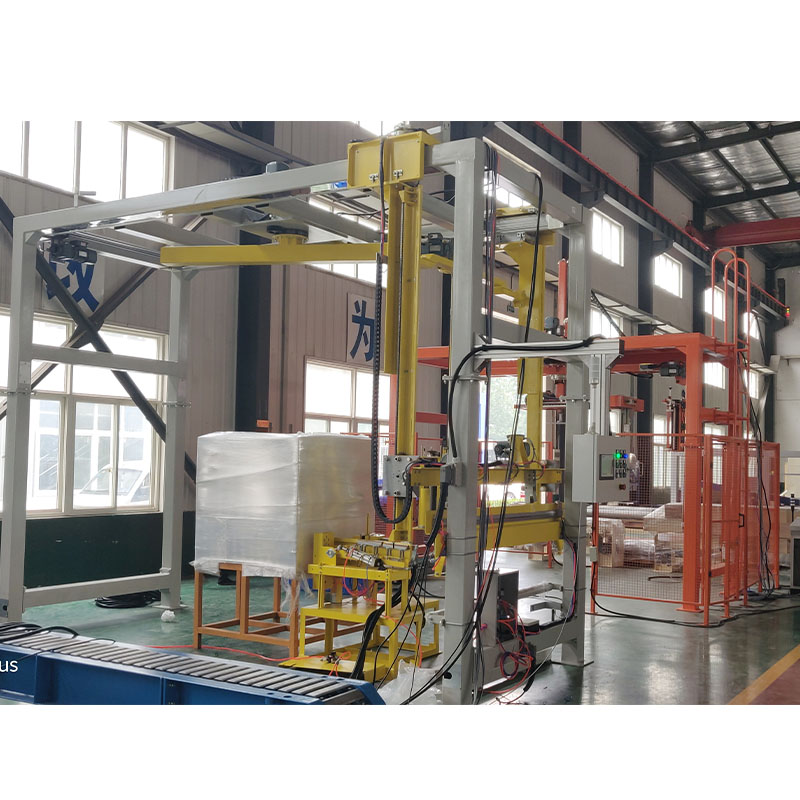

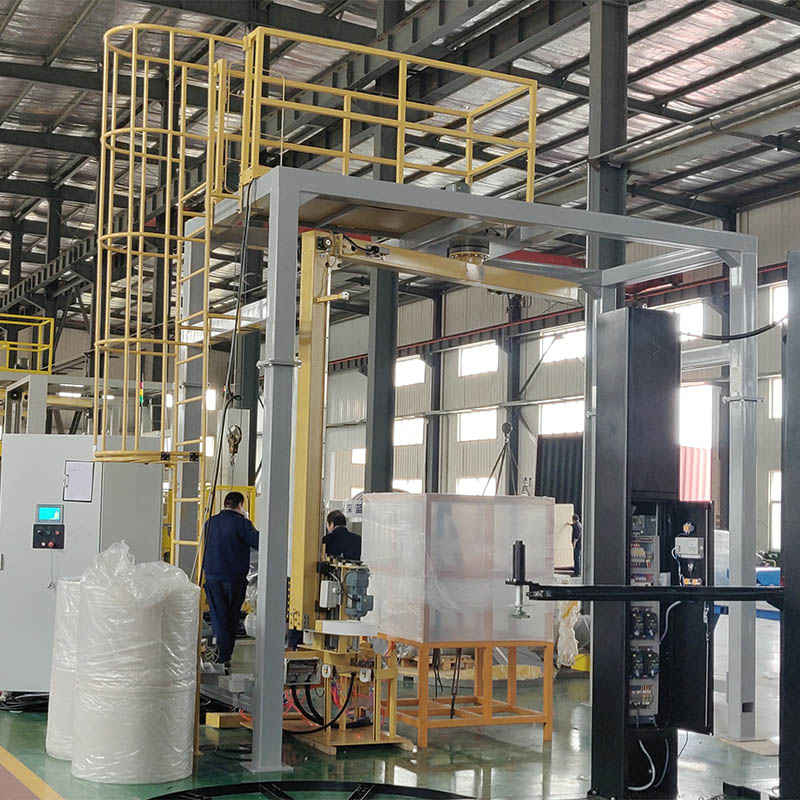

Rotary Arm Stretch Full Automatic Wrapping Machine
Features:
1. Stable performance.
2. The Max. velocity of arm rotating is 35 rpm and double rotary hands can be equipped.
3. Excellent wrapping effectiveness. Good movie clamp& cuting unit with Europe technology. Nicer movie sealing and reducing effect.
4. Top movie sealing and slicing unit will recognise high-quality sealing effect, which is appropriate for storage in 3D warehouse.
5. Top platen system will assurance the balance of merchandise at some stage in wrapping.
Technical specifications
Item | Specification |
Wrapping specifications | (500-1300)mm*(500-1200)mm. |
Packing height | 2400mm or produced based on actual conditions |
Packaging efficiency | 30-60 loads/H available. (Option: or 20-40 loads/H) |
Arm speed | 0-25rpm frequency control. (Option 15rpm, 35rpm) |
Arm performance | Precise sensitivity emergency brake system; Automatic arm reset. |

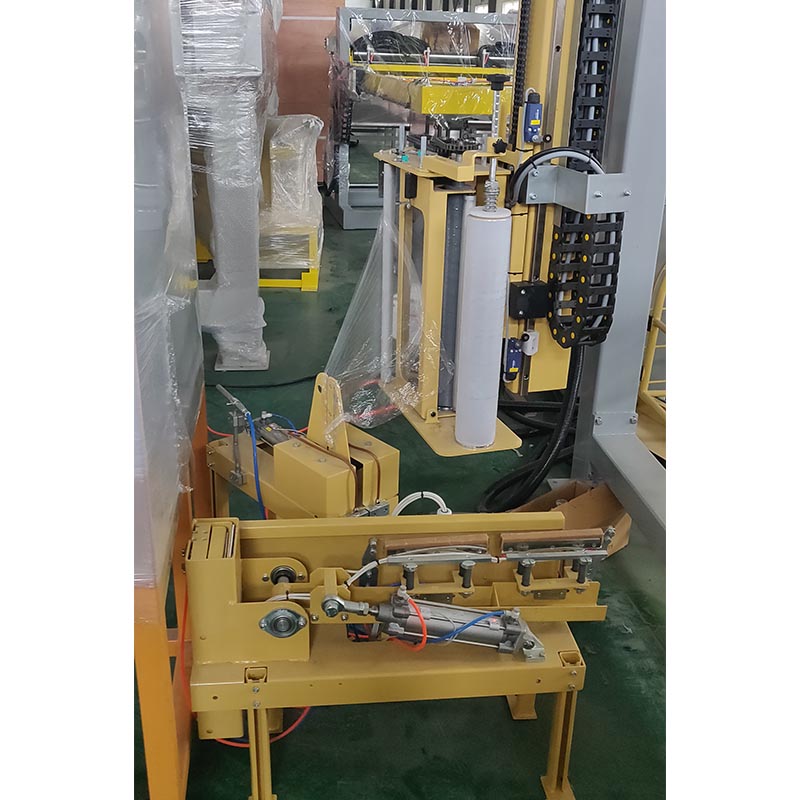

Film carriage system | Pre-stretch film carriage, stretch ratio up to 250% or 300%, automatic film feeding & cutting device, adjustable speed. |
Lifting column | Chain structure, speed variable frequency adjustable. |
Control system | PLC programmable control; Wrapping layer adjustable; Automatic height sense. |
Machine weight | 680KG (without support) |
Machine dimensions | 3440mm*1800mm*3220mm (without convey line) |
Power/ voltage | Arm 1.1/1.5kw; Film carriage 0.37kw; Lift 0.37kw/0.55kw; Conveyor 0.75kw/AC220V or 380V |
Option: Safety warning and protection fence； Photo-eye protection for infeed and outfeed goods (Conveyor line)； | |
Control System
PLC system;
Reinforce wrap enable extra wrap on identical location;
Film Tension Control adjustment in the panel;
0-25RPM arm variable pace by using frequency changer;
Separate variable carriage up/down speed;
Cycle pause capability;
Separate start, reset and emergency end buttons;
Manual carriage up/down switch;
Turntable jog button;
Flash mild for desktop in operation;
Rotary arm end by way of security bumper and reflection photoeye sensing and impediment in the rotating area;
Sinolion Machinery factory takes an area of 30000M2, with more than 260 employees, including more than 70 professional R & D engineers. We have offices in Hangzhou, Guangzhou, Taiyuan. We ensure that our customers from China and abroad benefit from the most cost-effective products, systems and services for their requirements, regardless of their industry or business size.
