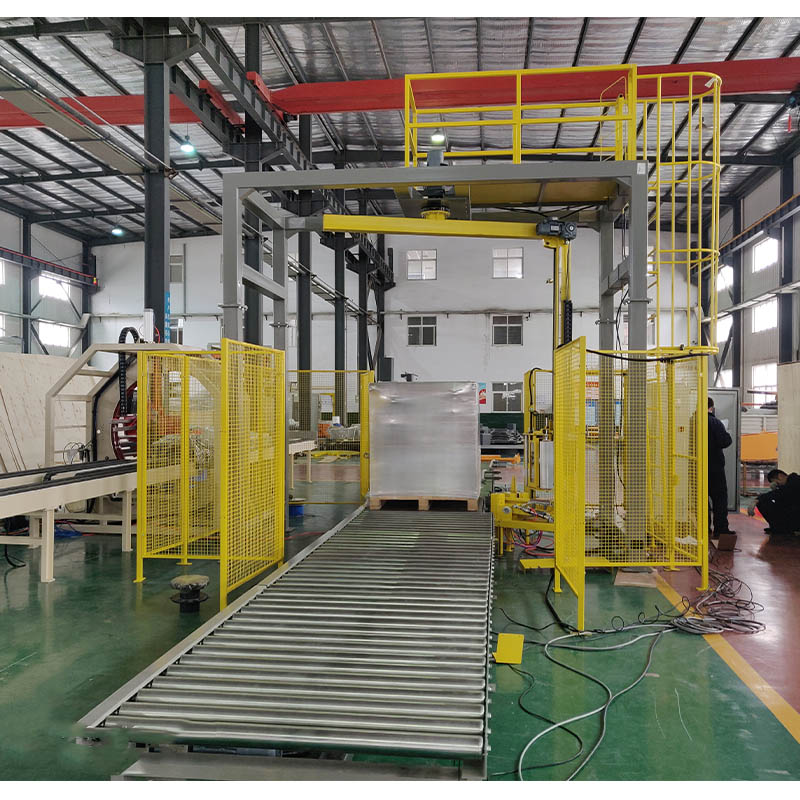

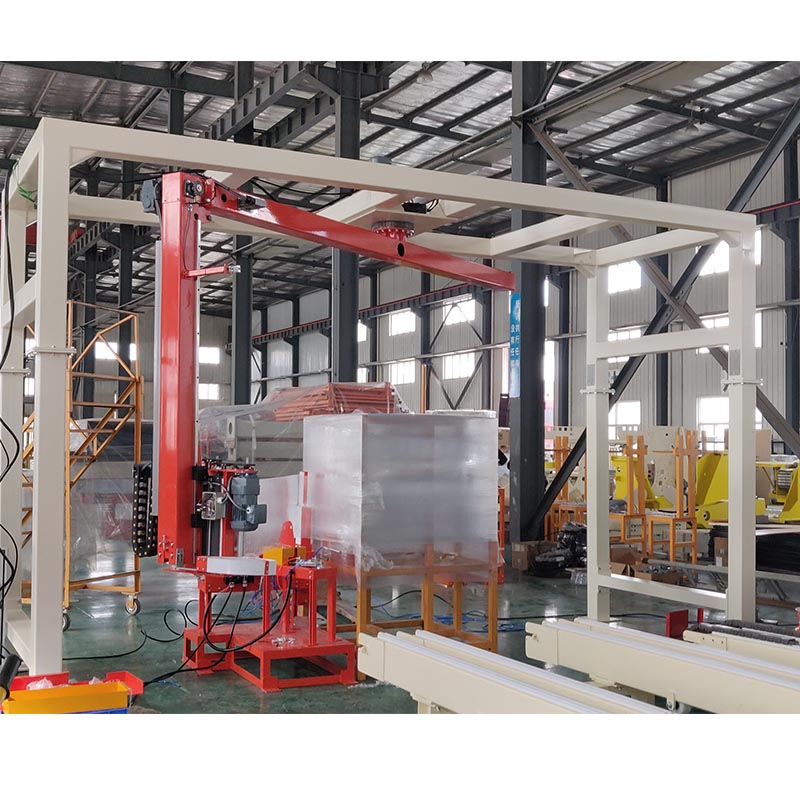

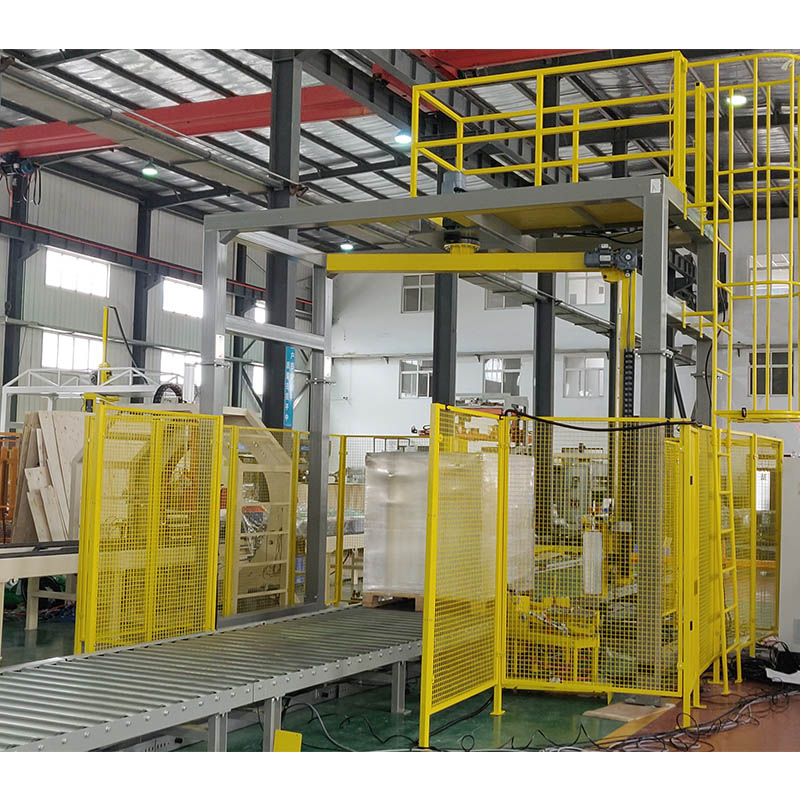

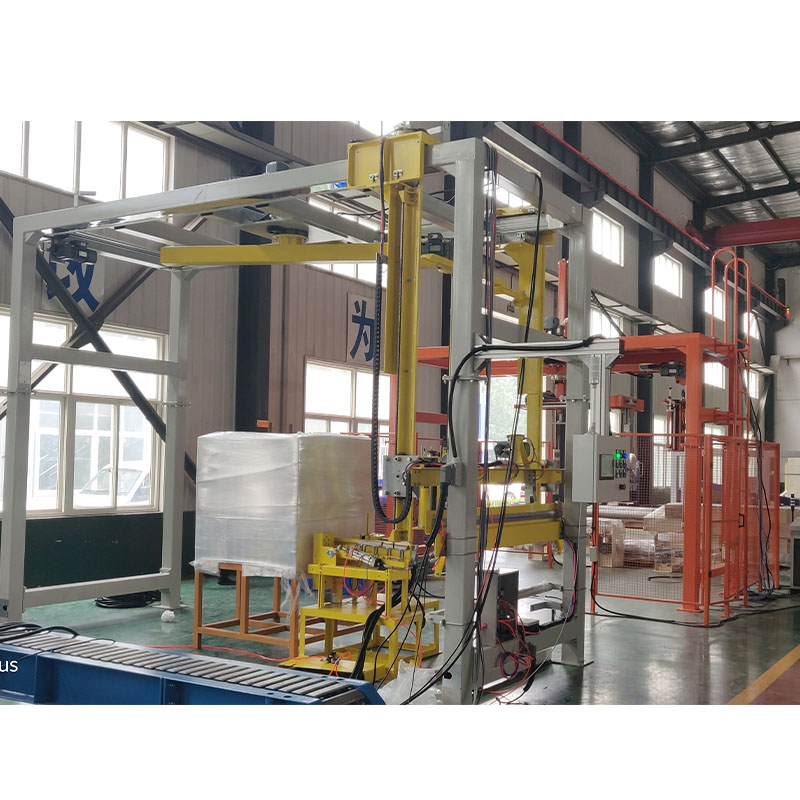

Integrated Sheet Dispenser
1. Stable performance.
2. The Max. velocity of arm rotating is 35 rpm and double rotary hands can be equipped.
3. Excellent wrapping effectiveness. Good movie clamp& cuting unit with Europe technology. Nicer movie sealing and slicing effect.
4. Top movie sealing and slicing unit will realise pleasant sealing effect, which is appropriate for storage in 3D warehouse.
5. Top platen machine will warranty the balance of merchandise for the duration of wrapping.
Technical specifications
Item | Specification |
Wrapping specifications | (500-1300)mm*(500-1200)mm. |
Packing height | 2400mm or produced based on actual conditions |
Packaging efficiency | 30-60 loads/H available. (Option: or 20-40 loads/H) |
Arm speed | 0-25rpm frequency control. (Option 15rpm, 35rpm) |
Arm performance | Precise sensitivity emergency brake system; Automatic arm reset. |
Film carriage system | Pre-stretch film carriage, stretch ratio up to 250% or 300%, automatic film feeding & cutting device, adjustable speed. |
Lifting column | Chain structure, speed variable frequency adjustable. |
Control system | PLC programmable control; Wrapping layer adjustable; Automatic height sense. |
Machine weight | 680KG (without support) |
Machine dimensions | 3440mm*1800mm*3220mm (without convey line) |
Power/ voltage | Arm 1.1/1.5kw; Film carriage 0.37kw; Lift 0.37kw/0.55kw; Conveyor 0.75kw/AC220V or 380V |
Option: Safety warning and protection fence； Photo-eye protection for infeed and outfeed goods (Conveyor line)； | |
Have stable operating performance (the system is closely related to production and requires high stability) and good viewing effects.
The automatic load equalization technology is used to ensure stable operation without dumping the goods. The strength and rigidity requirements, stability performance, and shock resistance of the racks are all implemented in accordance with customer requirements and national standards; in system design and software design, the self-recovery ability and redundant design of the system are fully considered to ensure the strong anti-interference ability of the system. The system operation fully considers all-weather operation, network security and information security.
