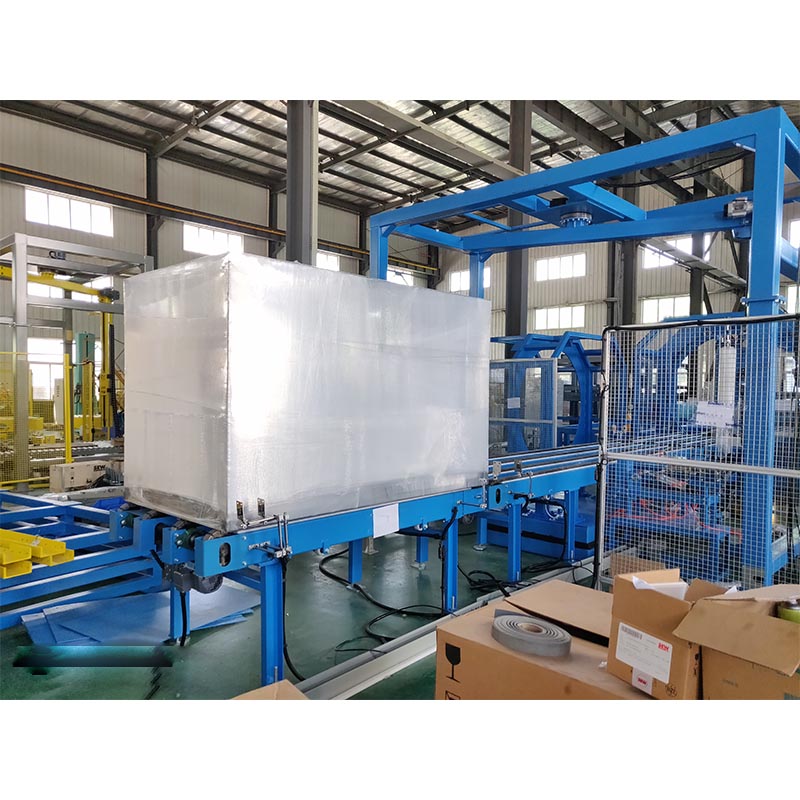

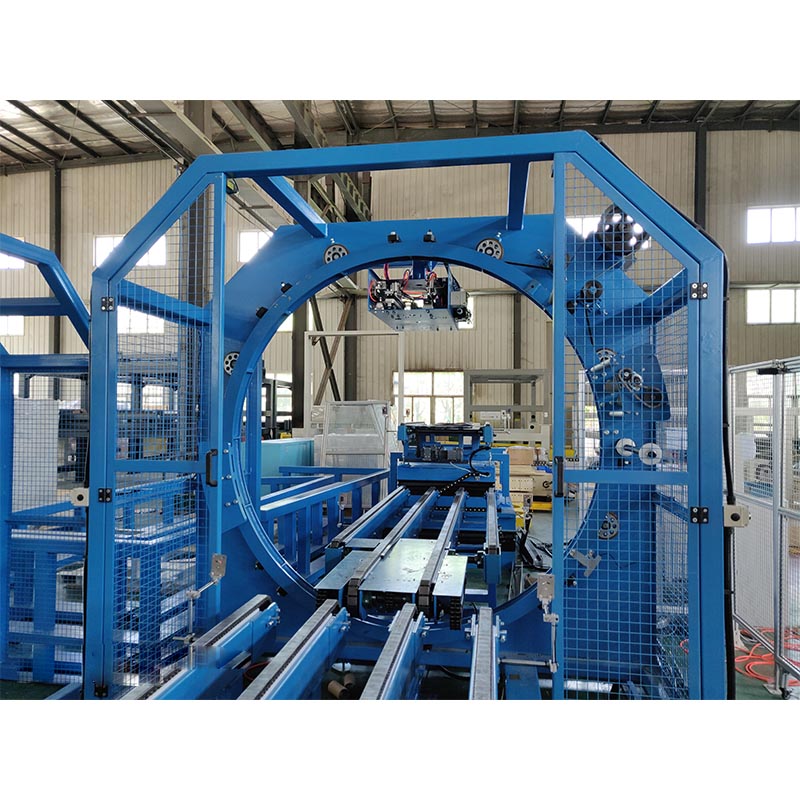

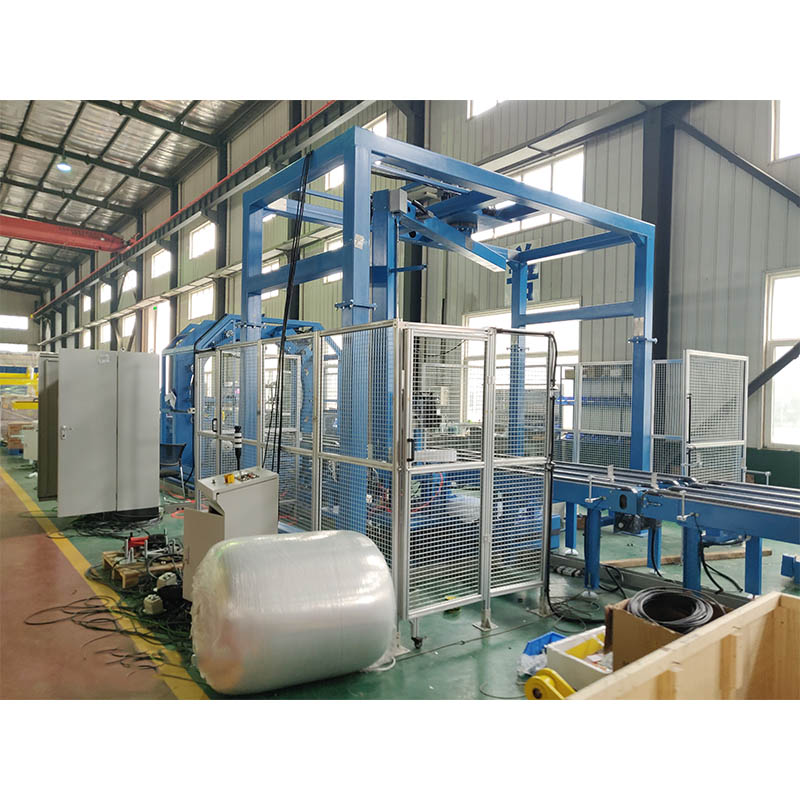

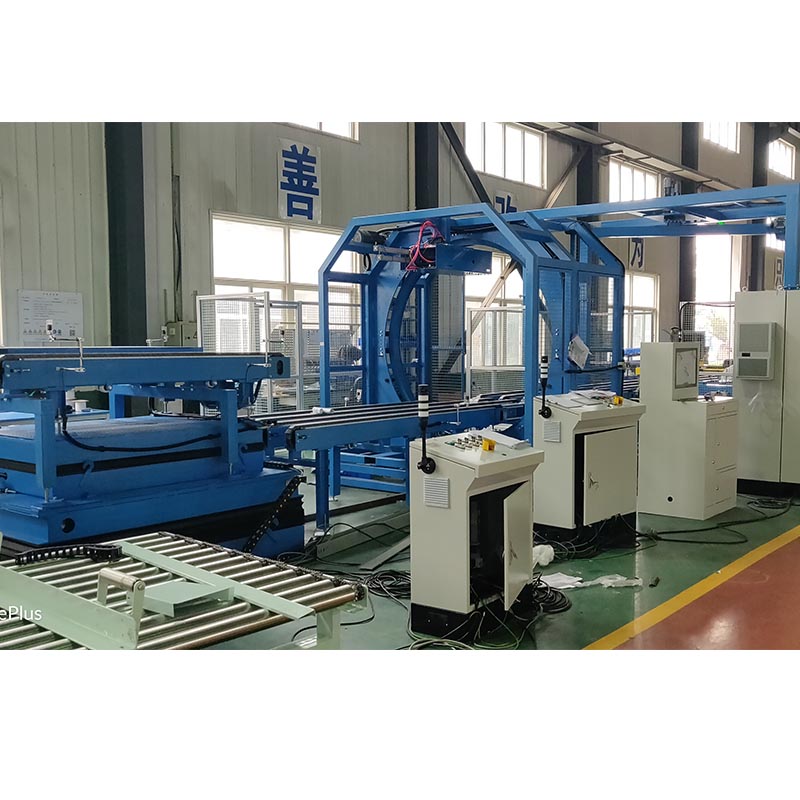

Orbital stretch wrapping machine for motor
Horizontal stretch wrapper applications motor, tube or plate that require banding, compression or more packing for shipment. It has tested files of success in many industries such as motor, profiled product, tubular product and plank stuff etc.
Item | Data |
Rotating ring inner diameter | 1800mm |
Package dimension (W*H) | 100 mm*1200 mm |
Packing length | >1200 mm |
Rotating ring speed | 20-30rpm |
Conveying speed | 5-8 m/min |
Packing material width | 200 mm- 500 mm |
Power | 2.2 Kw |
Machine Weight | 1500 kg |
Machine shape size | 2600 mm * 1650 mm *2600 mm |
Features:
Siemens PLC electric control system, touch screen panel
Ring rotating speed controlled by the inverter
In-feed & out-feed conveyor speed controlled by the inverter
Start and finish cycles are controlled by photocells
Auto film cutting and conveying unit
