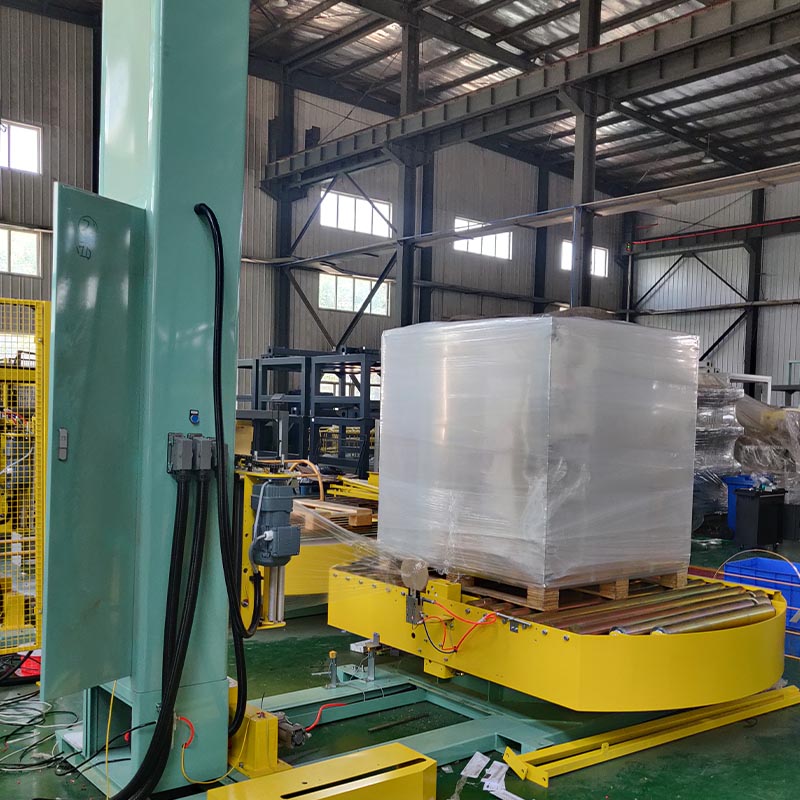

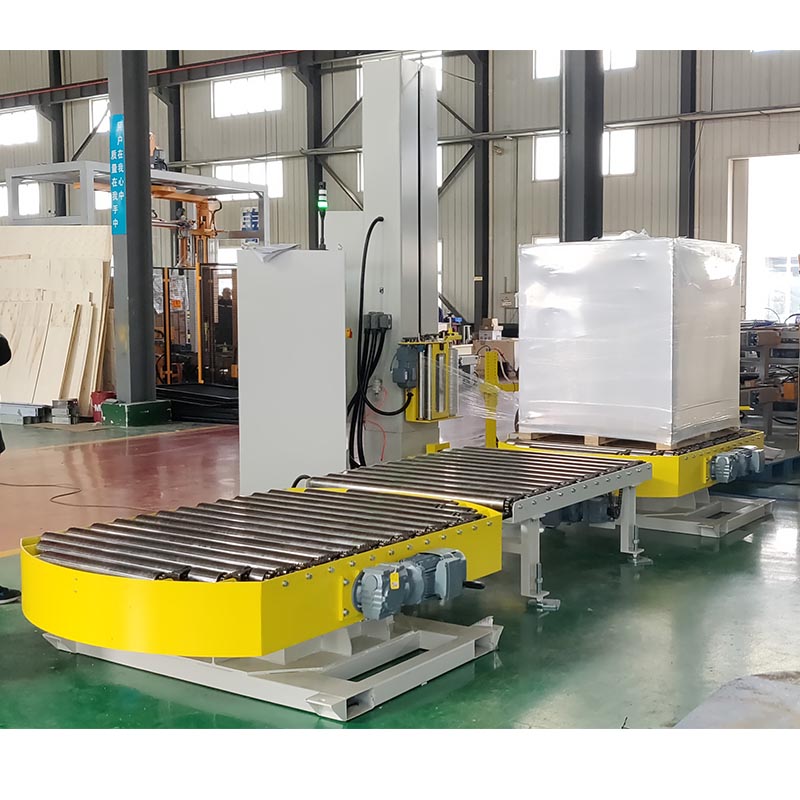

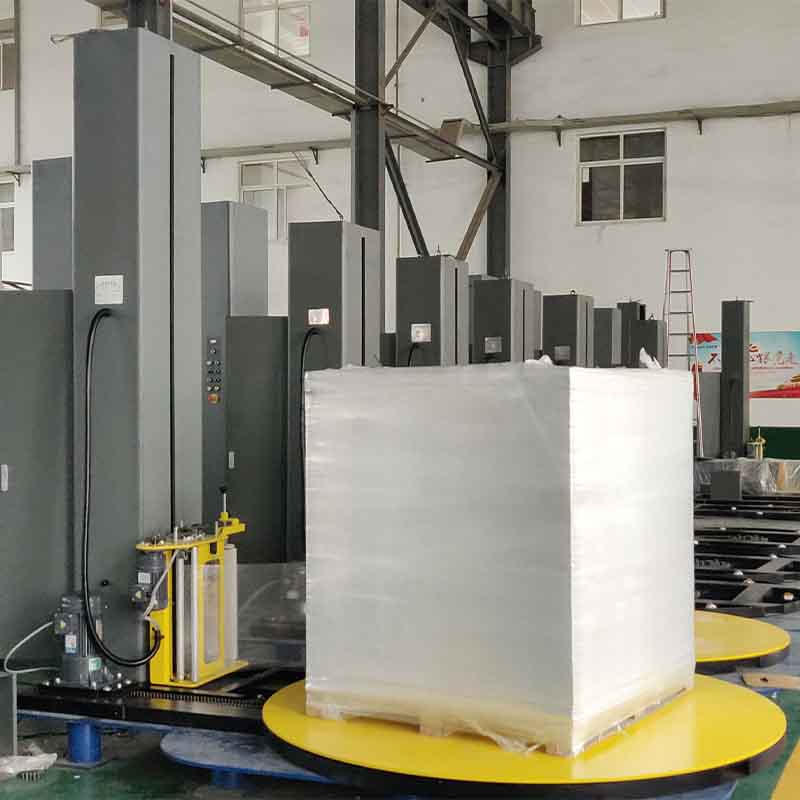

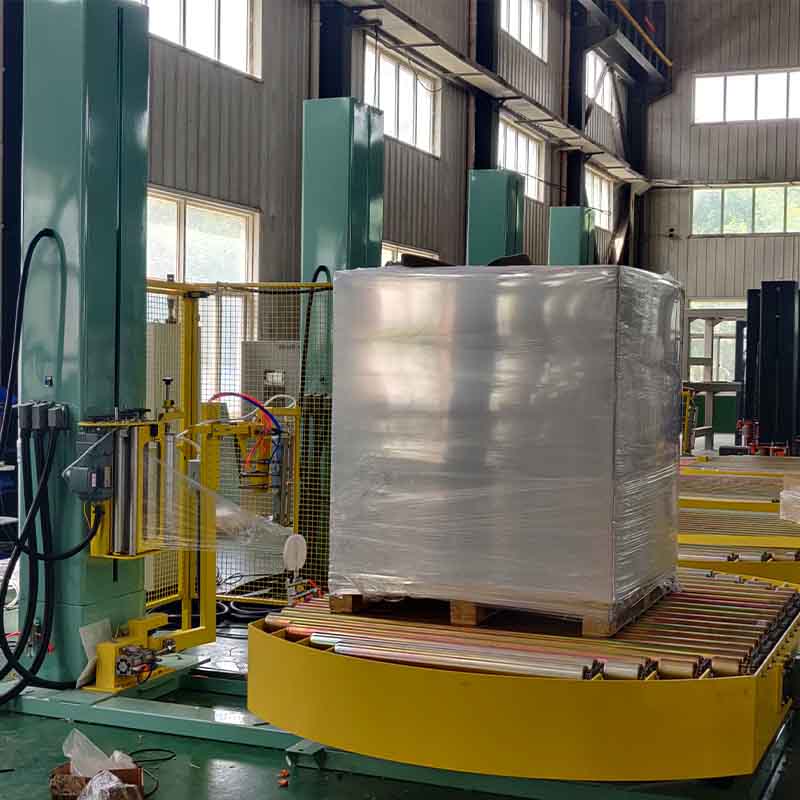

Automatic Turntable Pallet Wrapper Stretch Wrapping Machine

Conveyorized Fully Automatic Online Turntable Pallet Wrapper Stretch Wrapping Machine is Designed to be Installed with Existing Product Flow for Wrapping a Continuous Stream of Pallets or Stand-alone Using that be Operated from the Forklift with a Remote.

Contact Now E-Mail Telephone WhatsApp

Product Details

Specifications

Model	UCR-T2000A
Packing Size Max.	W 1200 mm × L 1200 mm
Wrapping Height Max.	2000 mm
Turntable Diameter	2000 mm
Load Capacity	2000 kg
Efficiency	40 - 60 loads/h
Film Delivery System	Powered Roller Pre-Stretch System Up to 250 - 300%
Turntable Height	470 mm
Turntable Rotation Speed	0 - 12 rpm, variable
Roller Table Width (BF)	1300 mm
Conveyor Speed	8 m/min, Constant
Automatic Film Clamper and Cutter	Std.
Stretch Film	LLDPE Stretch Film in 500 mm width × 15 - 35 um thickness; Film Reel in 76 mm core diameter × Max. 250 mm OD
Air Supply	6 - 8 kg/cm2
Voltage	380 VAC 3 ph 50/60 Hz
Power	3.0 kw
Machine Size	L 2950 mm × W 2000 mm × H 2950 mm
Machine Weight	1000 kg
