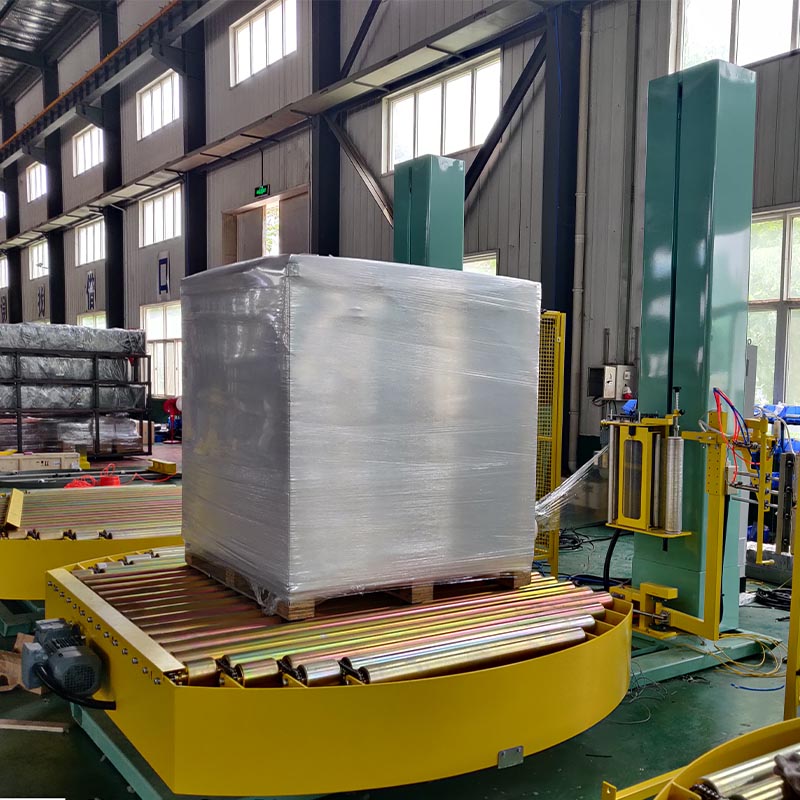

Stretch Film Machinery - Pallet Wrapping Machine

The photoelectric switch is installed on the film carriage, automatic detect the height of the pallet

Driving motor: AC motor, speed adjustable

Contact Now E-Mail Telephone WhatsApp

Product Details

Control system	PLC control system
	Touch screen allows operation easily
	Auto sensing pallet arribe&start wrap cycle
	Auto cut&grab film after wrap finished
	Film tension control adjustable
	Separate variable carriage up /down speed
	Variable T/T rotation speed
	Safety tower light alarm
Turntable	Go home position after wrap cycle finished
	Soft start/soft stop
	Turntable slew bearing drive
	Table fully shrouded for greater personnel safety
Film carriage	Powered pre-stretch system up to 300% to min film consumption(pre-stretch ratio van be specially made)
Film carriage	Carriage door opens for effortless roll change and thread film
Technology Data	Max load size(mm):1100(L)X1100(W)X2400(H)
	Turntable dia:1800mm(2000 available)
	Turntable Height:500mm(other available)
	Turntable weight capacity:2000kgs(2500,3000 available)
	Turntable speed:3-12rpm
	Electrics:220V 50HZ 1 phase
	Power:2.0 KW
	Packing efficiency:30-40 load/h base on load
	Air:0.4-0.6Mpa
	Machine weight:1000kgs
Option	Addition conveyor & other type(chain,belt) avaiable
	Safety fence
	Infed & outfeed conveyor
Conveyor	Heavy structural steel fram construction
	Heavy Duty Conveyor Guards
	Adjustable Leg Height
	Different Roller Diameters and Roll Spacing Available
	Photo-eye pallet sensing
Auto film tail cut&wipe system	Pheumatic clamps grab the film tail after the wrapping finished
	Hot wire cut film
	Pheumatic brush activate
