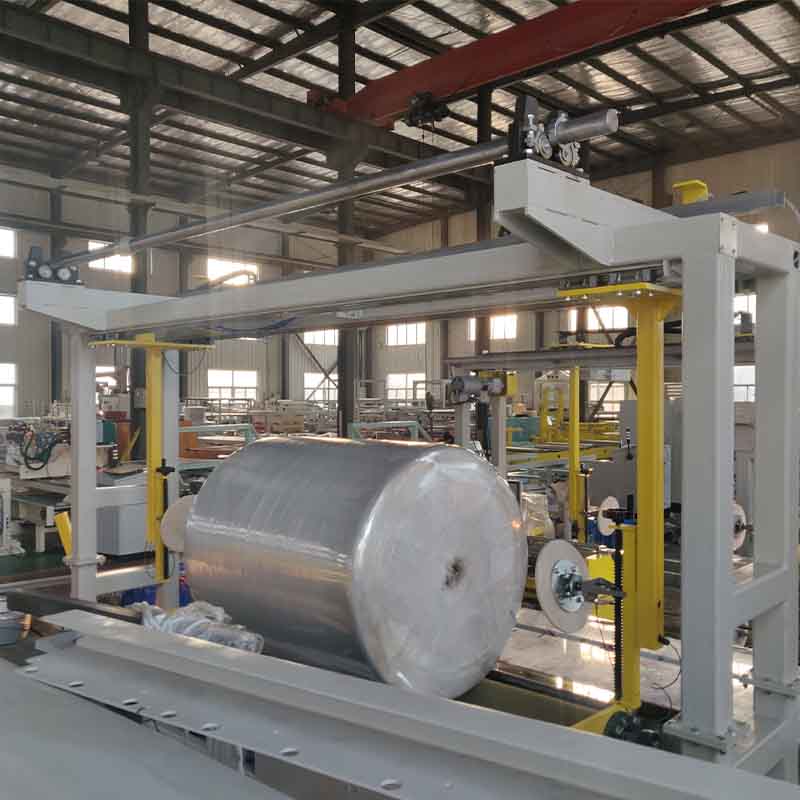

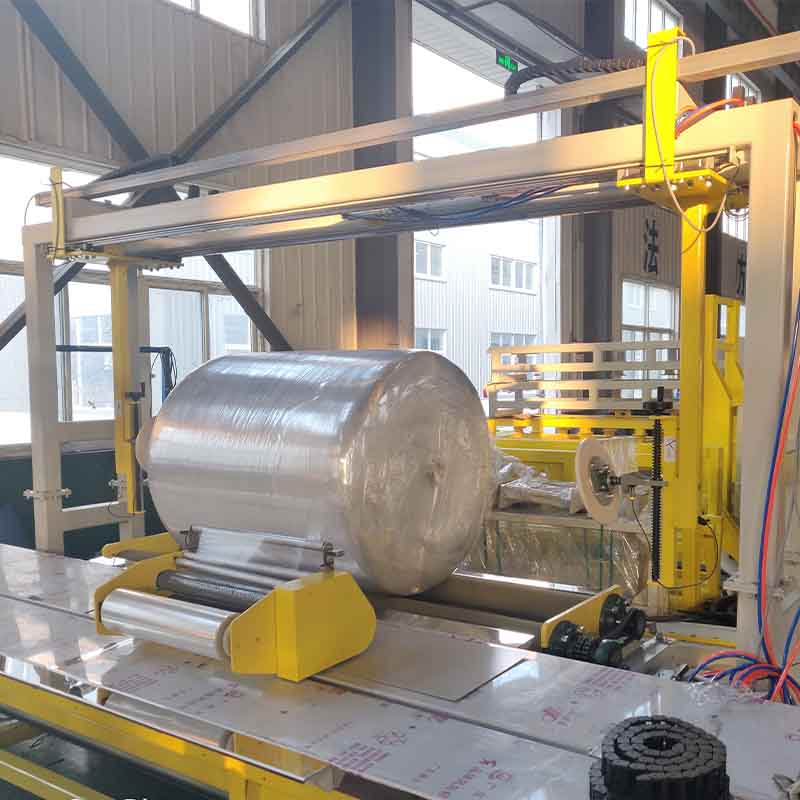

Paper reel wrapping system

The wrapping system is composed of automatic raidal wrapping machine, Semi-auto radial wrapping machine, V-slat conveying system, Stopper, weighing scale, electrical turntable and Upender, etc.

Contact Now E-Mail Telephone WhatsApp

Product Details

Wrapping speed:	30-60pallets/h
Rotating speed of the rotary arm:	0-35rpm, variable frequency control motor driving
Function of rotary arm:	automatic brake system, automatic reset
Film carriage:	pre-stretch film carriage the stretch ratio up to 250% automatic stretch film feeding
Film lifting guide rail:	double chain structure, the lifting speed adjustable
Control system:	PLC control system, wrapping layers and times adjustable Automatic height detection of the goods
Auto film feeding:	pneumatic driving, auto film feeding, auto film cutting
Overall dimension:	3000mm2000mm(2650-3650)mm
Power supply:	AC 380V/ 50HZ

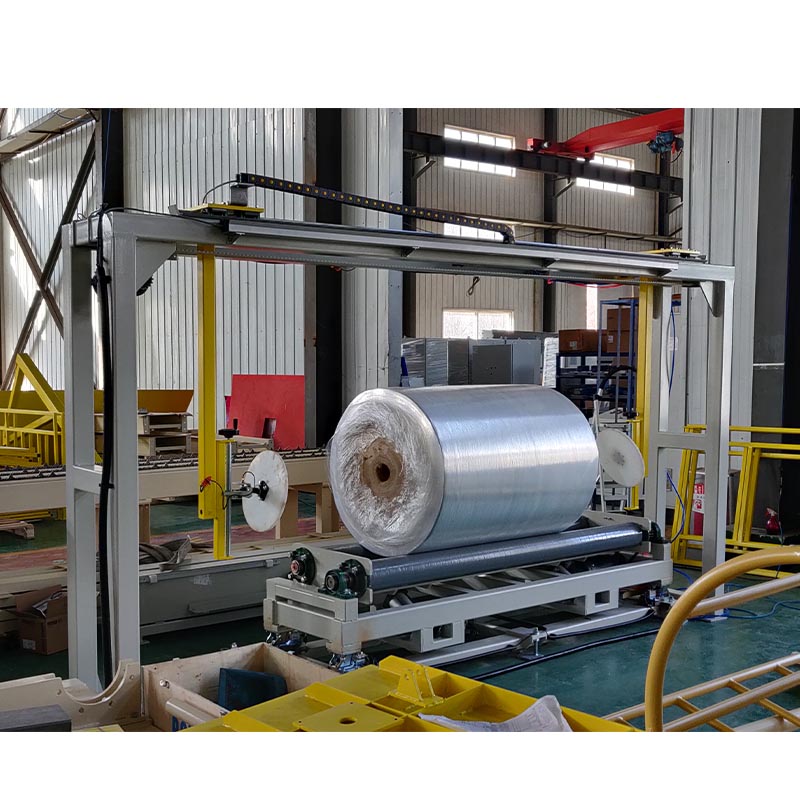

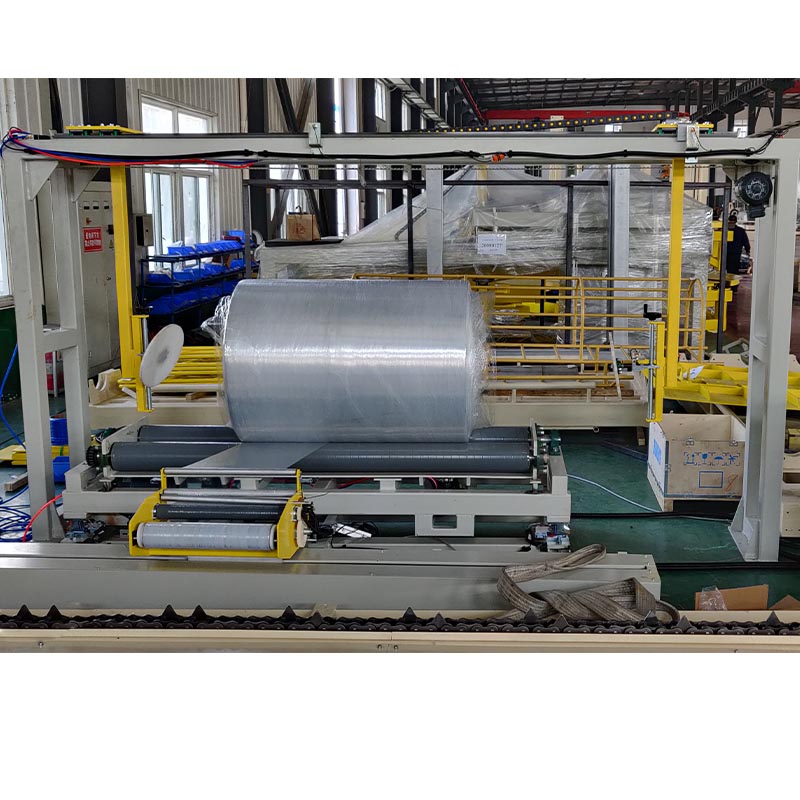

Paper Conveyor System

The turntable rotates with an external ring gear transmission mechanism, and the drive motor is frequency-controlled, with braking, and accurate positioning. The turntable is supported by a large outer ring gear slewing bearing for stable operation and durability and equipped with Electric turntable maintenance machine pit cover plate.Reel upender (Hydraulic)

L-shaped heavy duty steel structure frame, Loading max. 1500kg

V-slat conveyor for roll loading (paper roll infeed), flat plate conveyor or roller conveyor for roll out-loading (Paper roll out-feed).

Working efficiency: Max. 30-60cycles/H

Timber pallet will be loaded manually before turning 90 degree, pallet photo reference:

Equipped with pneumatic control box, pneumatic control valve installed in the control box, easy to maintain.
