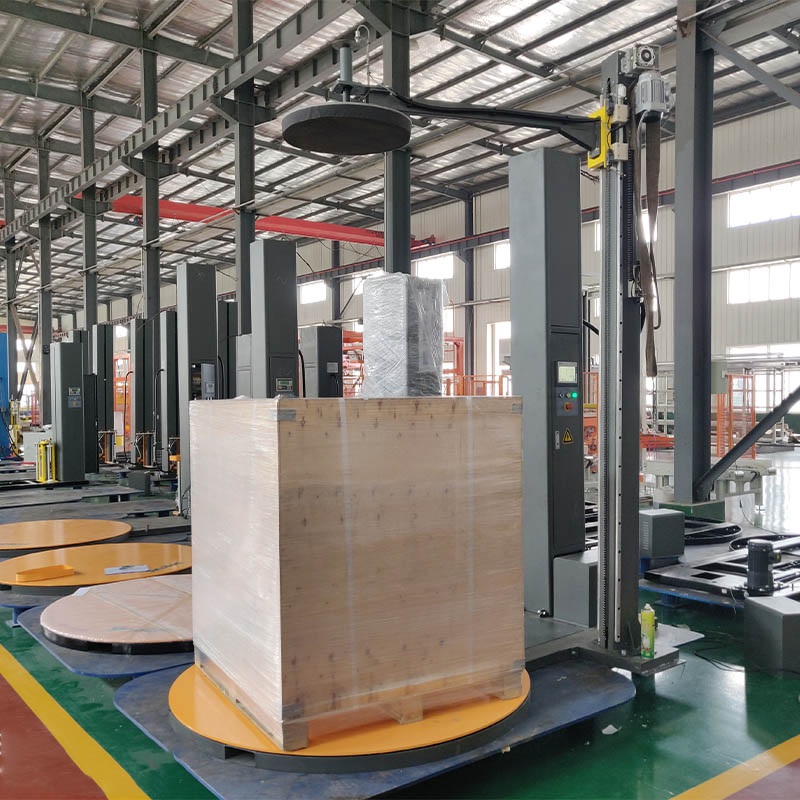

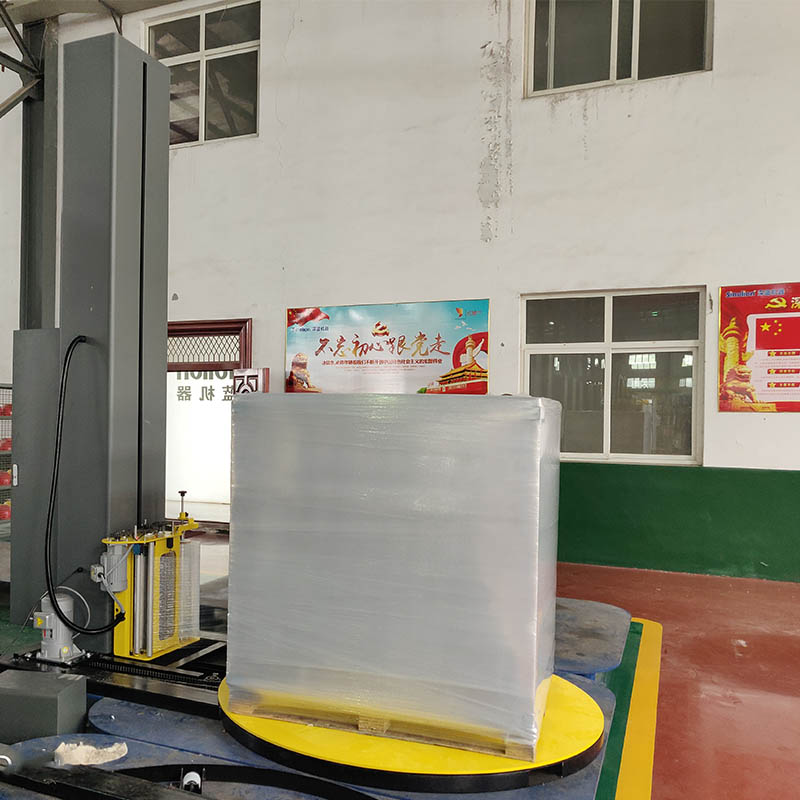

Pallet Stretch Plastic Film Wrapping Machine

Pre-stretch Pallet Wrapping Machine is the semi-automatic pallet packing machine. This packing computer can be used in many sorts of packaging conditions.

Contact Now E-Mail Telephone WhatsApp

Product Details

Technical specifications

Item	Specification
Wrapping size	500-1300mm (L) *500-1300mm (W)
Packaging height	Max.2400mm (1800/2800/3200mm available)
Work efficiency	20-40 loads/H
Turntable speed	0-12RPM (adjustable, soft start & stop)
Bearing	Max. 2000kgs
Turntable size	D=1650mm, H=78mm
Film carriage	Driven pre-stretch carriage, move up and down on side of the tower
Stretch ratio	Up to 1:2.5
Tower	Double chain design. Lifting speed adjustable
Control system	PLC
Weight	600kgs
Dimension	2745mm1650mm2860mm
Power	Turntable 0.75kw; film carriage 0.35kw; tower: 0.37kw; 220V 50HZ 1Phase
Remarks: Some parts of the machine can be exchanged according to customer requirements. Option I: Standard low profile ramp. Option II: Weight scale
