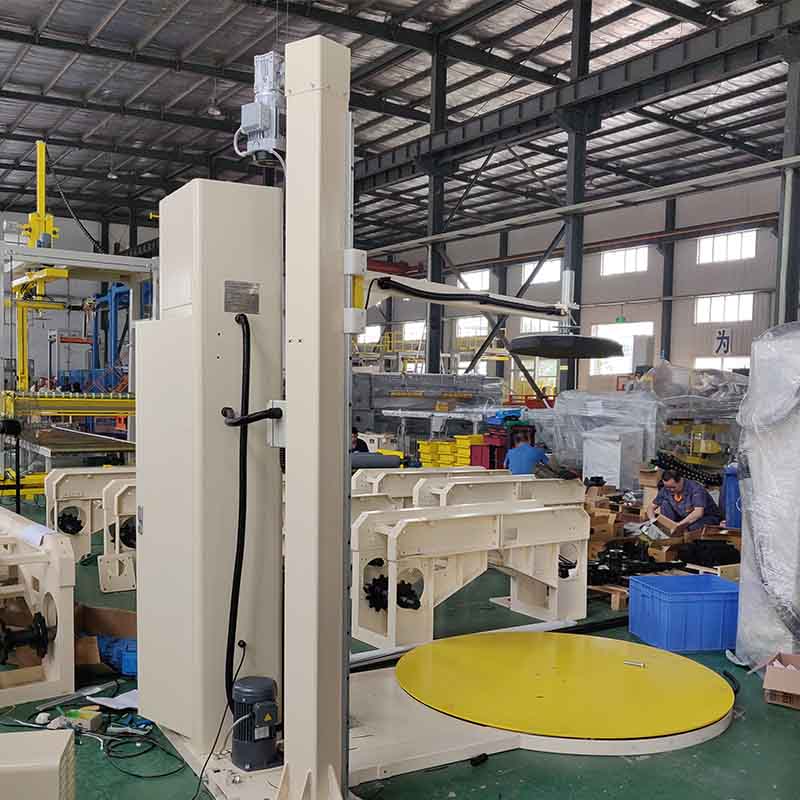

Automatic Turntable Stretch Wrapper
Reset function when wrap cycle finished
Heavy duty chain drive
Soft start/soft stop
Film carriage
Powered pre-stretch film with ratio 1: 2.5
Product Details
| Wrapping size: | L(500-1300)mm*W(500-1200)mm |
| Wrapping height: | H(1800-2600)mm |
| Wrapping speed: | 30-60pallets/h |
| Rotating speed of the rotary arm: | 0-35rpm, variable frequency control motor driving |
| Function of rotary arm: | automatic brake system, automatic reset |
| Film carriage: | pre-stretch film carriage the stretch ratio up to 250% automatic stretch film feeding |
| Film lifting guide rail: | double chain structure, the lifting speed adjustable |
| Control system: | PLC control system, wrapping layers and times adjustable Automatic height detection of the goods |
| Auto film feeding: | pneumatic driving, auto film feeding, auto film cutting |
| Overall dimension: | 3000mm*2000mm*(2650-3650)mm |
| Power supply: | AC 380V/ 50HZ |
The film delivery following up the rotary arm rotating, the proximity switch control the start/stop of film delivery motor to follow up the rotary arm
