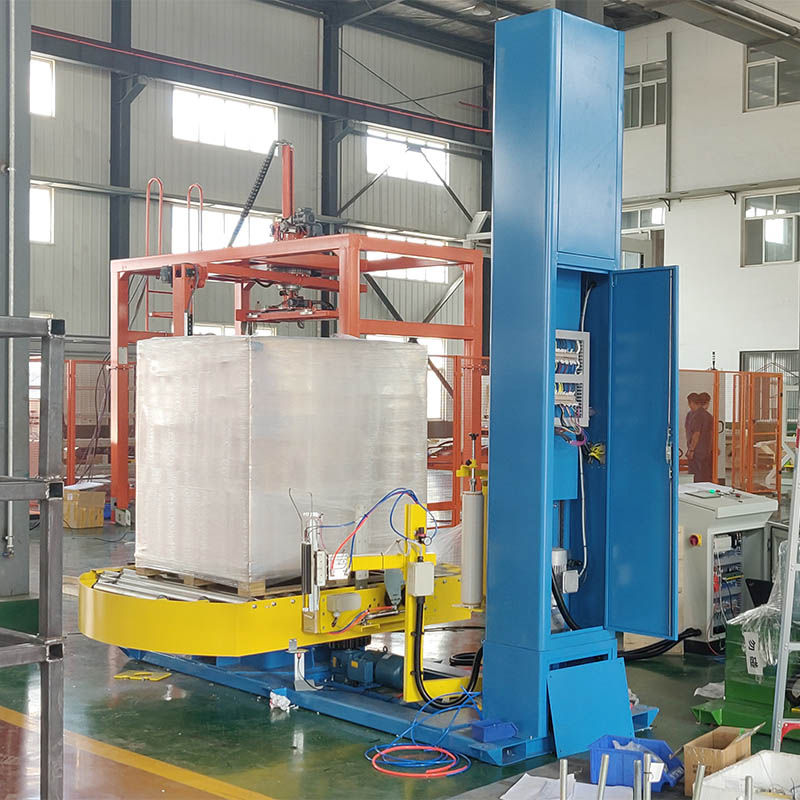

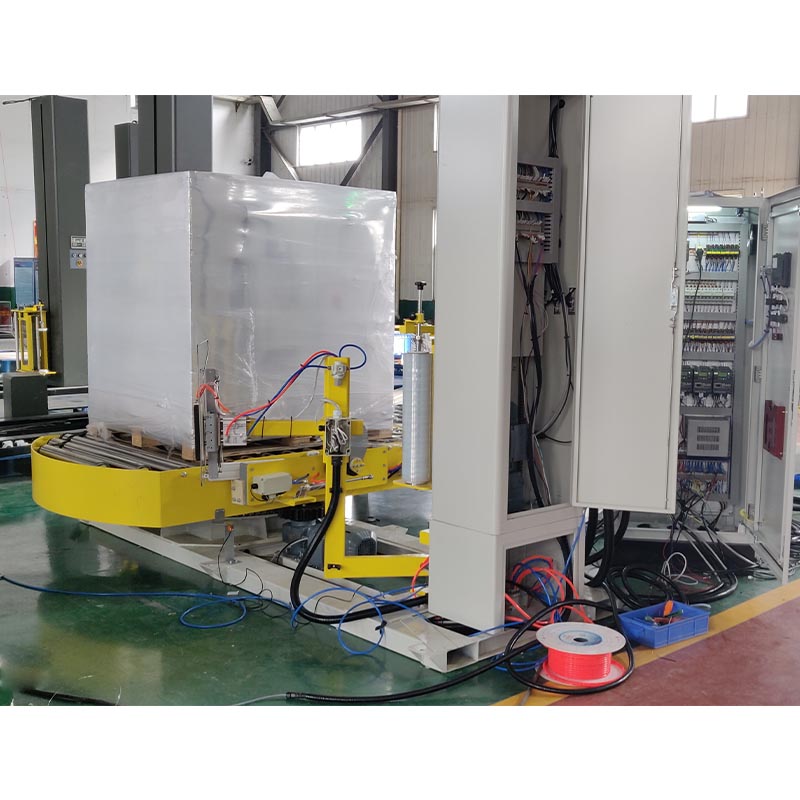

Full Auto Turntable Stretch Film Wrapping Machine with Roller Conveyor

Full Automatic turntable Wrapping machine with roller conveyor
--Integrated pallet roller conveying and film wrapping .

which is convenient for personnel to operate;

Contact Now E-Mail Telephone WhatsApp

Product Details

1. Wrapping size	500-1200mm (L) *500-1200mm (W)
2. Packaging height	Max.2400mm (1800/2800mm availiable)
3. Work efficiency	20-40 loads/H
4. Turntable speed	0-15RPM (adjustable, soft start & stop)
5. Bearing	Max. 2000kgs
6. Turntable size	D=1650mm, H=78mm
7. Film carriage	Driven pre-stretch carriage,stretch ratio up to 300%
8. Tower	Double chain design. Lifting speed adjustable
9. Control system	PLC
10. Weight	600kgs
11. Dimension	2745mm1650mm2860mm
12. Power	Turntable 0.75kw; film carriage 0.35kw; tower: 0.37kw; 220V 50HZ 1Phase
Some parts of the machine can be exchanged according to customer requirements

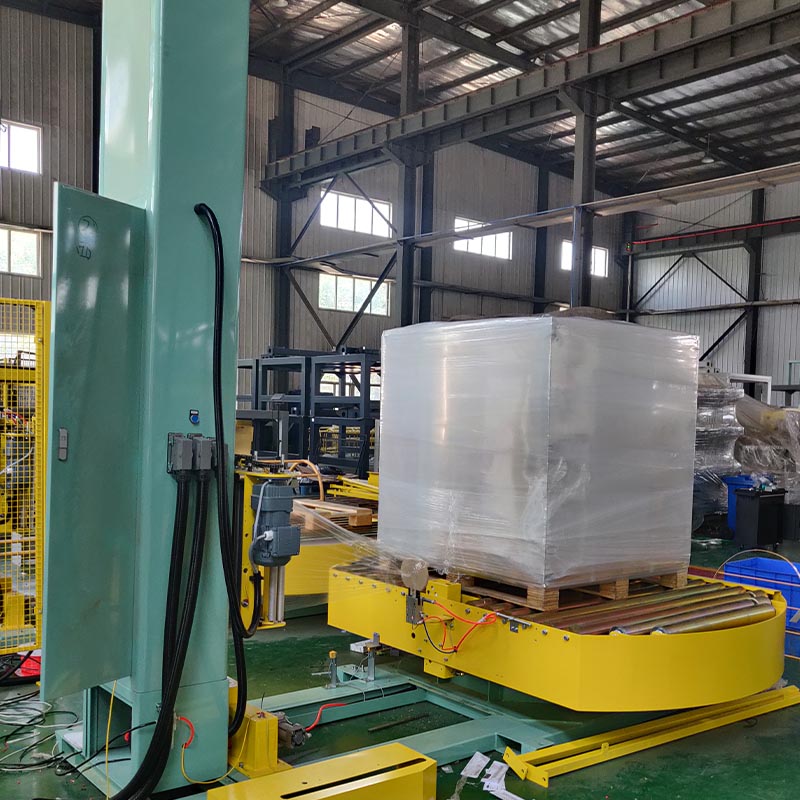

Stretch Wrapping Machine

Control system
PLC control system
Photo-eye pallet height sensor
Reinforce wrap allow more wrap on same point
Auto cut & grab film after wrap finished
Safety tower light alarm
Turntable
Reset function when wrap cycle finished
Heavy duty chain drive
Soft start/soft stop
Film carriage
Powered pre-stretch film with ratio 300%
Film feeding speed by seperate AC drive motor
Carriage door opens for effortless film change
Conveyor
Heavy structural steel frame construction
Heavy duty conveyor guards
Adjustable leg height
Different roller diameter and roll spacing available
Conveyor speed: 12m per minute
Photo-eye pallet sensor
Auto film tail cut & wipe system
Pneumatic clamp grab the film tail after the wrapping finished
Hot wire cut film
Pneumatic brush activate
Option
Addition conveyor & other (chain, belt) available

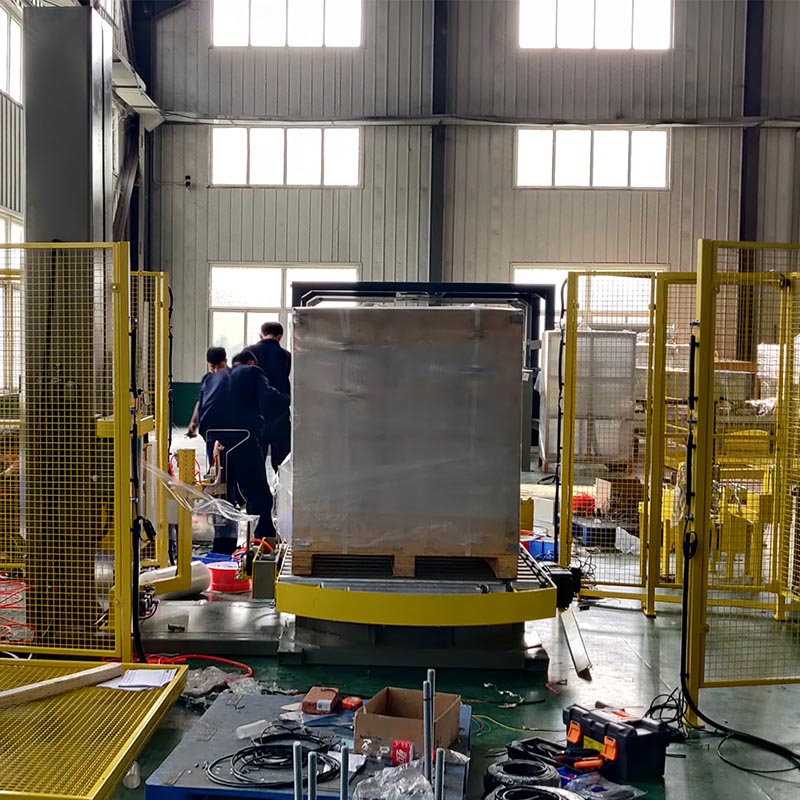

Safety fence
Infeed & outfeed conveyor
