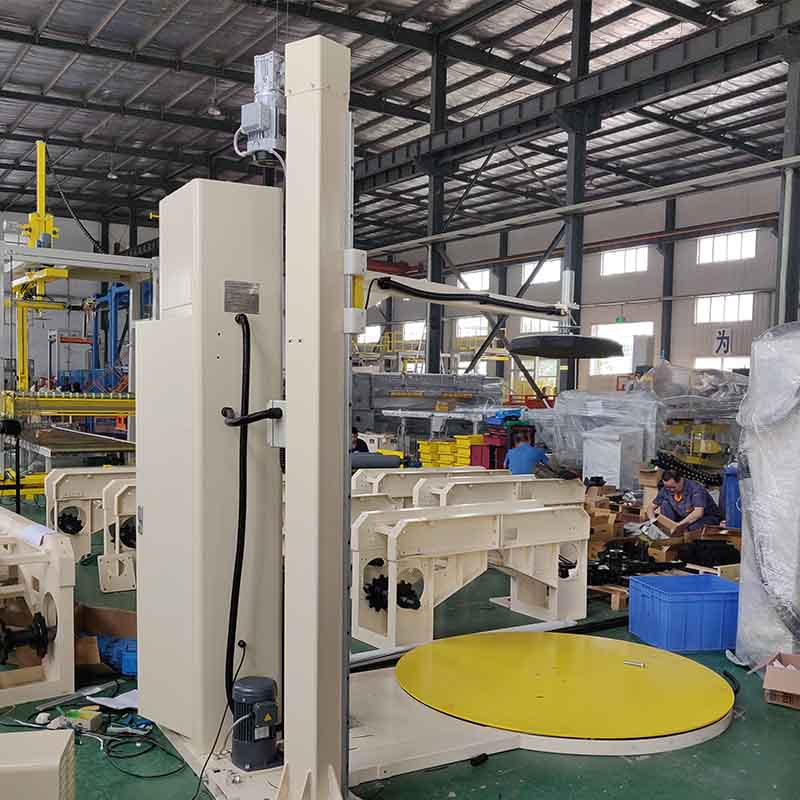

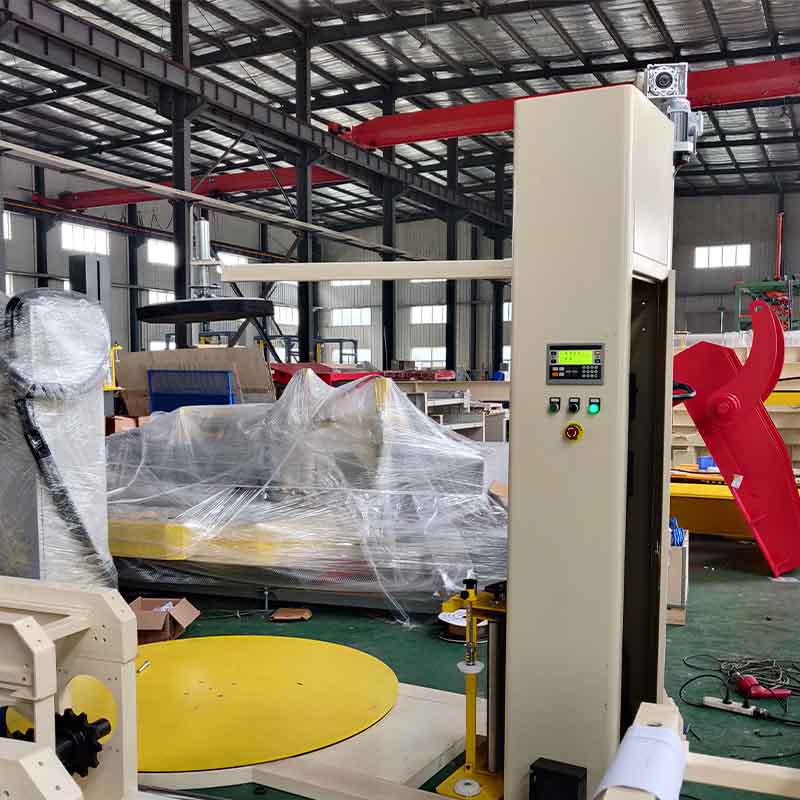

Economic Stretch Intelligent Economic Pallet Wrapping Machine
Powered with pause/manual/automatic wrapping switch function, in order to ensure the better operating.
Air source required: the compressed air shall be supplied by end user to the inlet of the stop valve.
Safety fencing, conveyor or light curtain NOT included.
Item | Specification |
Wrapping size | 500-1200mm (L) *500-1200mm (W) |
Packaging height | Max.2400mm (1800/2800mm available) |
Work efficiency | 20-40 loads/H |
Turntable speed | 0-12RPM (adjustable, soft start & stop) |
Bearing | Max. 2000kgs |
Turntable size | D=1650mm, H=78mm |
Film carriage | Driven pre-stretch carriage, move up and down on side of the tower |
Stretch ratio | Up to 150% |
Tower | Double chain design. Lifting speed adjustable |
Control system | PLC |
Weight | 600kgs |
Dimension | 2745mm*1650mm*2860mm |
Power | Turntable 0.75kw; tower: 0.37kw; 220V 50HZ 1Phase |
Remarks: Some parts of the machine can be exchanged according to customer requirements. Option I: Standard low profile ramp. Option II: weight scale | |
Photo eye will detect the height and length of the pallet automatically.
Air resource with single direction valve to stop air release when pressure not steady.
The driving speed of rotary arm, chain conveyor, film carriage lifting are adjustable individually, the film delivery speed is also adjustable, wrapper alarms when film break.
