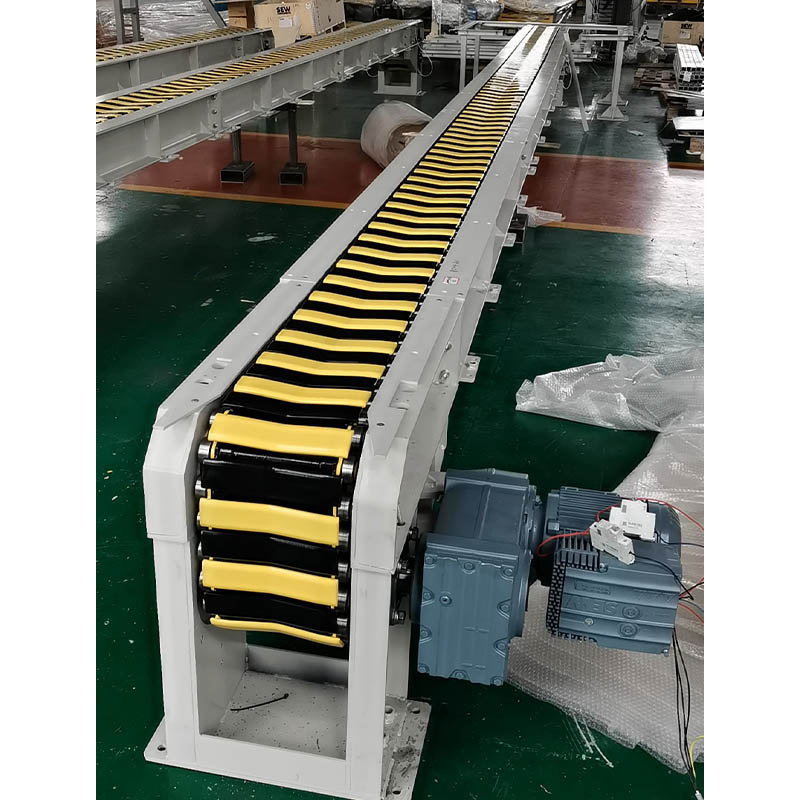

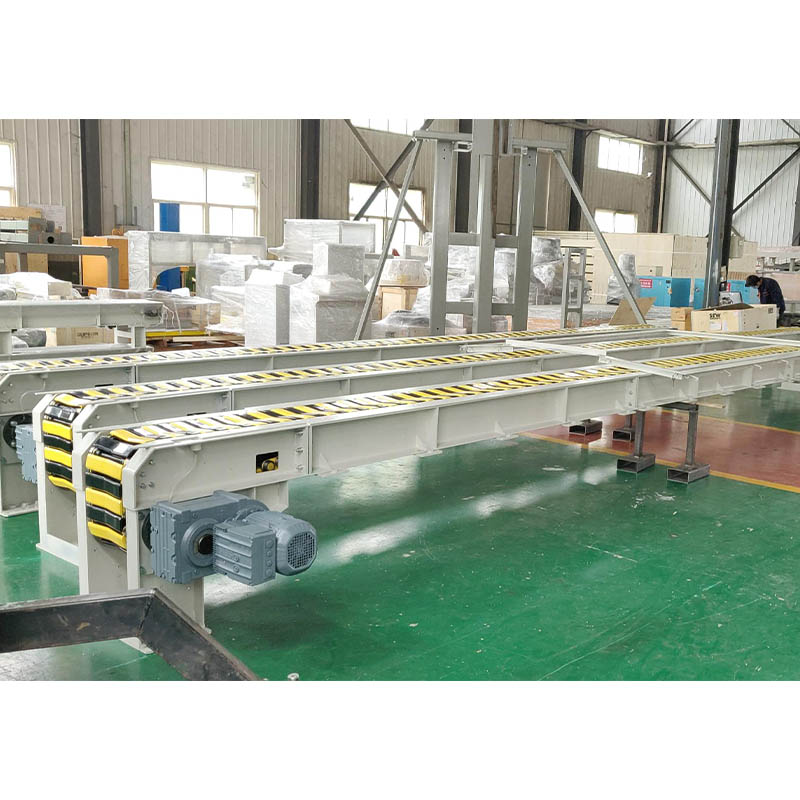

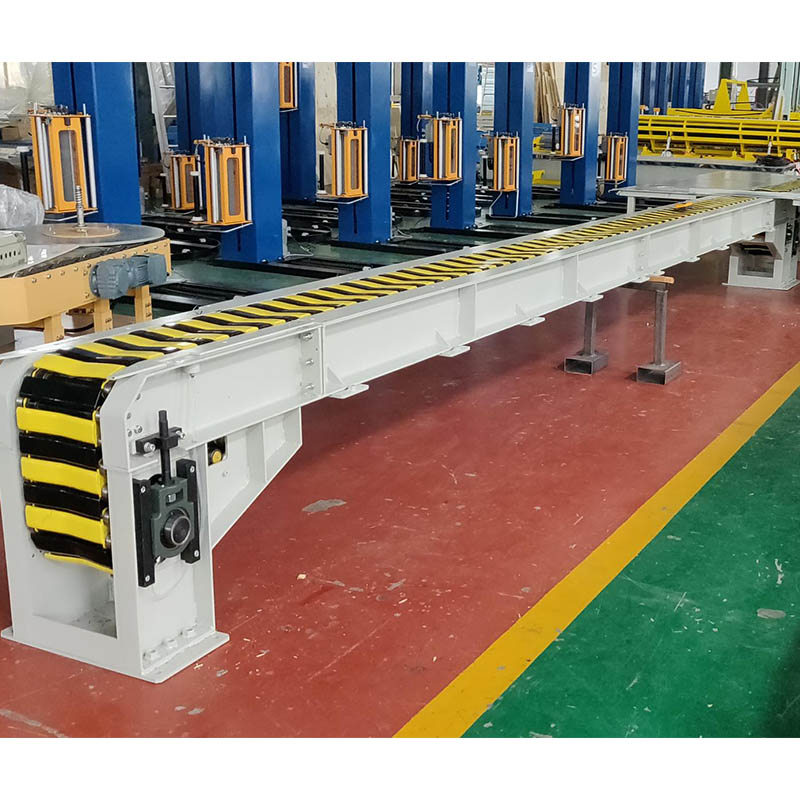

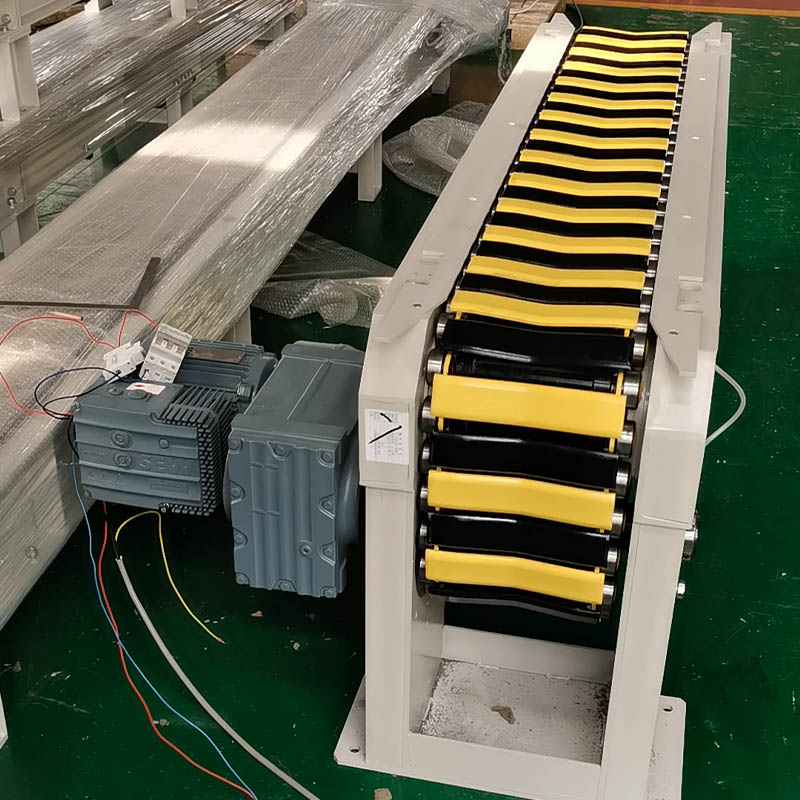

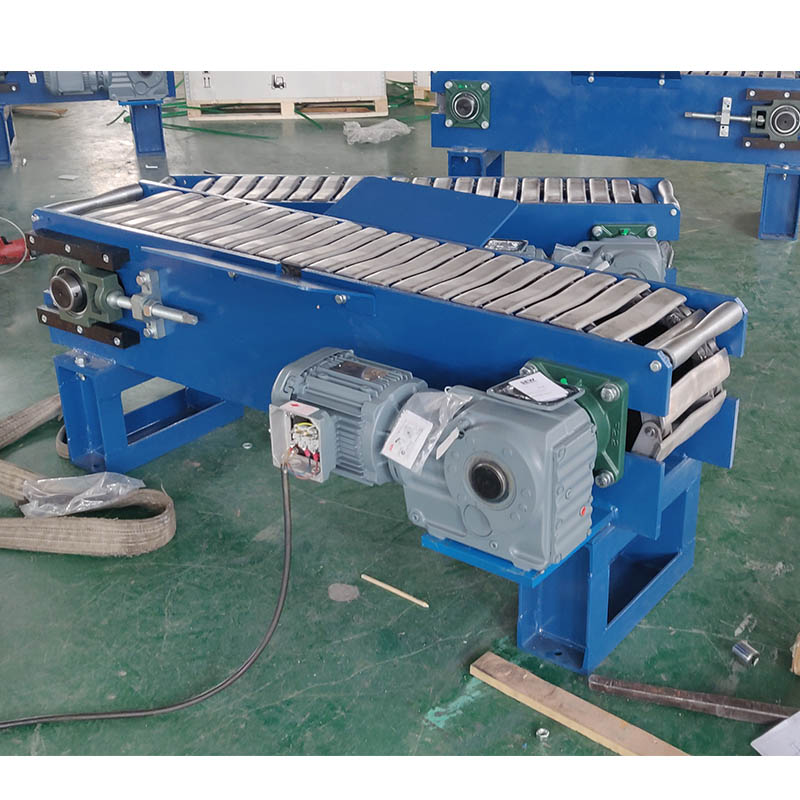

Paper Reel V-slat Chain Conveyor
The conveyor slat is made in V-Shaped, Angle: 170°.
--Loading ability of slat conveyor: 3000 kg/m .
--Chain rollers hooked up with bearing inside, No oil and No illness on paper rolls.
--Heavy obligation metal structures, modular design.
Technical specifications
Chain pitch: | P = 63.5 mm |
Slat width: | B = 55 mm |
Slat length: | L = 250 mm |
Thickness: | S = 8mm, Stainless steel, or carbon steel |
Length of conveyor | Customized |
No. Of conveyor | Customized |
Speed of conveyors | 18m/min |
Slat bearing: | HRB, China/SKF |
Gear motor: | SEW, Germany/Chinese famous motor |
Heavy duty steel structures, modular design.
--Equipped with vertical shaft driving gear reducer.
--Tensioner adjusting device & lubrication can be operated on floor level, easy for maintenance.
--Equipped with automatic control components and mounting bracket.
--Slat conveyor installed in floor level, convenient for the production operation.
--Equipped with cover plates at the head and end of transmission units easy to dismantle.
l V-shaped plate chain parameters: chain plate conveying, pitch P=63.5mm, chain plate width: B=55mm, chain plate length: B=250mm, plate thickness: S8mm, chain plate material: S304. Pin material: 40Gr. Sprocket and sprocket shaft material: 45# steel modulation treatment. The through-shaft new V6 chain plate is used to convey paper rolls, and the chain plate is processed into a V shape with a forming angle of 170°. Plate chain ultimate tensile load 170KN;
