Wrapping line for waste paper

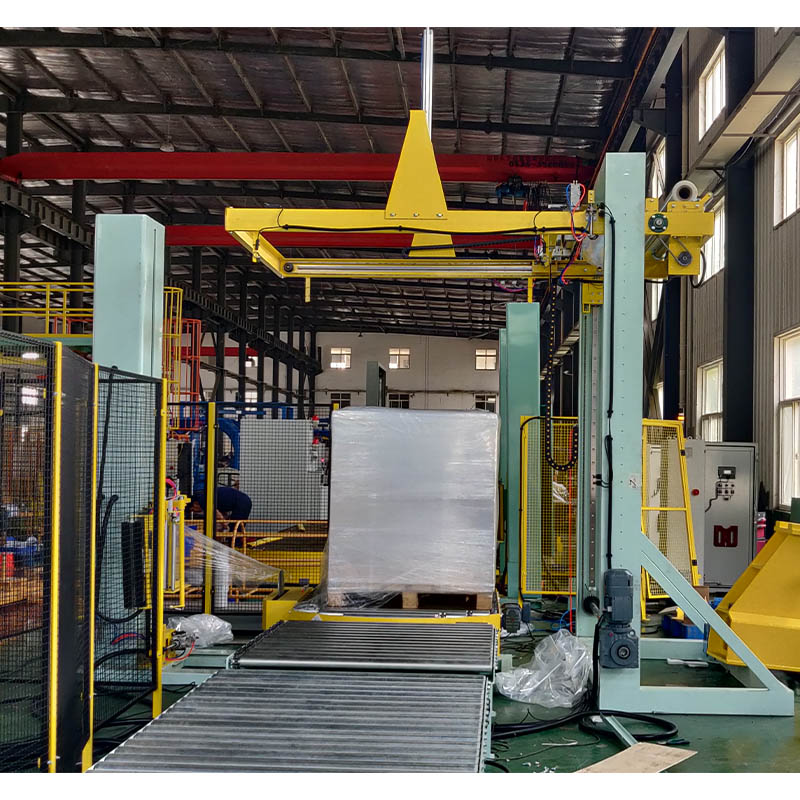

Automatic rotary arm wrapper R1800FZ-PL is the automatic on-line stretch wrapping line that can operate automatically. It is desinged for tall stacked loads that are unstable or too heavy to be rotated. It is used mainly in wrapping system of beverage, food, furnature, paper and other industries. It is easy to be installed and operated. Pre-stretch carriage will save the stretch films and protect the environment.

Contact Now E-Mail Telephone WhatsApp

Product Details

Item	Specification
Wrapping specifications	(500-1300)mm*(500-1200)mm.
Packing height	2400mm
Packaging efficiency	30-60 loads/H available. (Option: or 20-40 loads/H, 120loads/H)
Arm speed	0-25rpm frequency control. (Option 15rpm, 35rpm)
Arm performance	High sensitivity emergency brake system, the arm automatically reset.
Film carriage system	Pre-stretch film carriage, stretch ratio up to 300%, automatic film feeding & cutting device, adjustable speed.
Lifting column	Chain structure, speed variable frequency adjustable.
Control system	PLC programmable control, wrapping layer adjustable, automatic height sense.
Machine weight	680KG (without support)
Machine dimensions	3440mm1800mm3220mm (without convey line)
Power/ voltage	Arm 1.1/1.5kw, Film carriage 0.37kw, lift 0.37kw/0.55kw, conveyor 0.75kw/AC220V
Option: Safety warning and protection fence, Photo-eye protection for infeed and outfeed goods (Conveyor line)

Wrapping Machine

The concept of Horizontal wrapper S1800 is the packaging material through the rotating arm system around the average forward rotation of the goods, at the same time by stretch film institutions to adjust the tension of packaging materials, put into fastening the whole packing of the goods and the rules of the surface to form a spiral packing.
