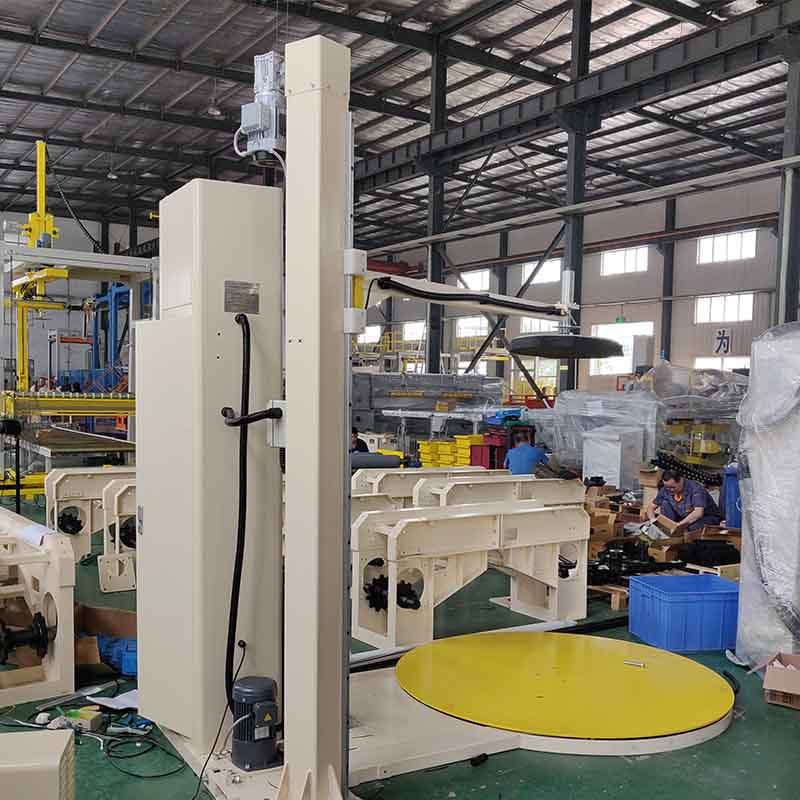

Turntable Automatic Stretch Wrapping Film Wrap Machine
This type of packaging machine has been used in various packaging areas widely. It is used for wrapping the stretch film around a loaded pallet to provide protection when the products are being transported& stored.
Product Details
| Item | Specification |
| Wrapping size | 500-1200mm (L) *500-1200mm (W) |
| Packaging height | Max.1800mm (2400/2800mm available) |
| Work efficiency | 20-40 loads/H |
| Turntable speed | 0-12RPM (adjustable, soft start & stop) |
| Bearing | Max. 2000kgs |
| Turntable size | D=1650mm, H=78mm |

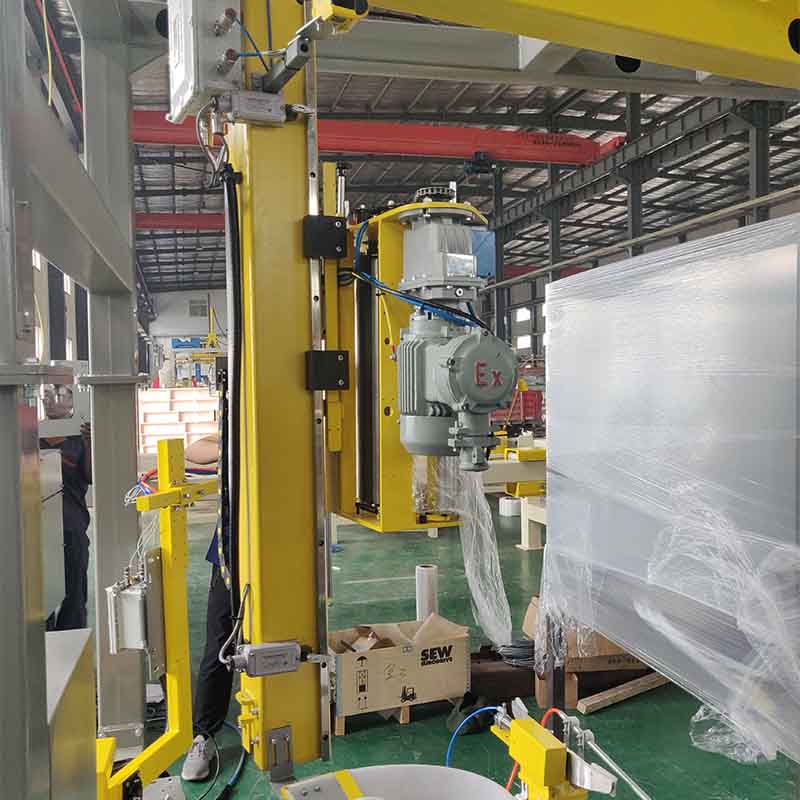

| Film carriage | Driven pre-stretch carriage, move up and down on side of the tower |
| Stretch ratio | Up to 1:3.5 |
| Tower | Double chain design. Lifting speed adjustable |
| Control system | PLC |
| Weight | 600kgs |
| Dimension | 2745mm*1650mm*2860mm |
| Power | Turntable 0.75kw; film carriage 0.35kw; tower: 0.37kw; 220V 50HZ 1Phase |
| Remarks: Some parts of the machine can be exchanged according to customer requirements. Option I: Standard low profile ramp. Option II: Weight scale | |

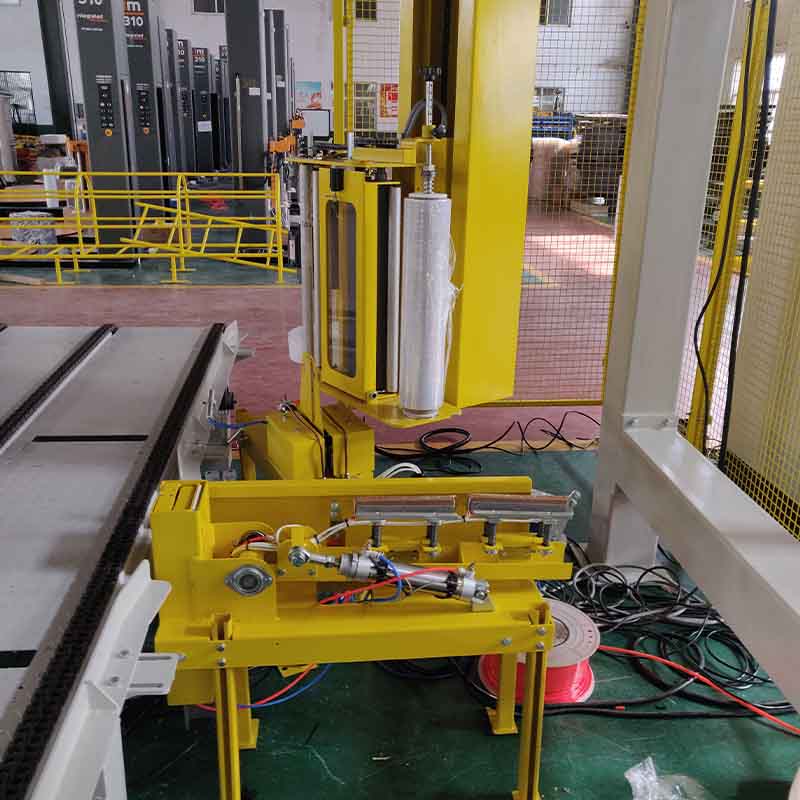

After finishing stretch wrapping, the film tail will be cut and next film head is clamped automatically.
Air blowing to wrap film head into pallet.
Hot cutting wire to cut the film after wrapping, and then wiper arm brush against film tail.
