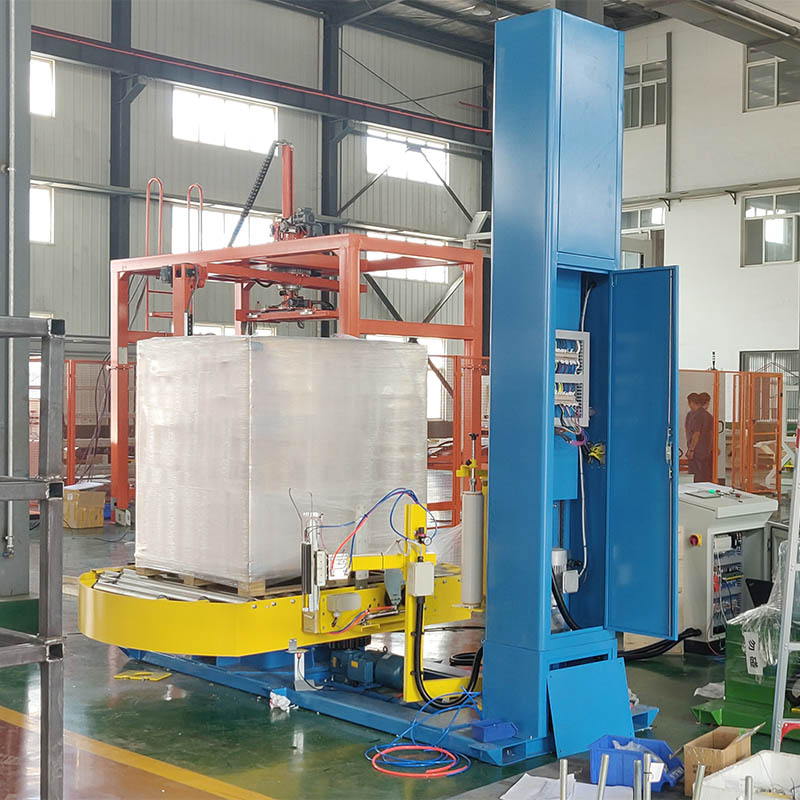

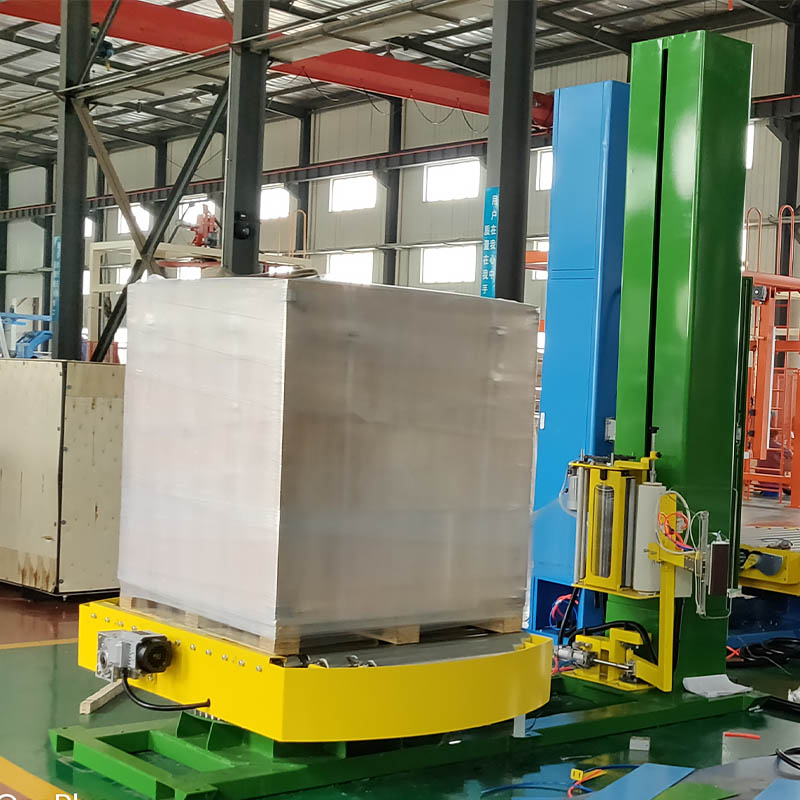

Automatic Online Pallet Wrapping Machine

Pallet packaging computing device is used to wrap stretch movie round a loaded pallet. Stretch movie affords safety whilst the merchandise are being transported&storaged. Application: drinks, meals and beverage, beer industry, paper industry, chemical packaging, animal feed enterprise and many others

Contact Now E-Mail Telephone WhatsApp

Product Details

1. Wrapping size	500-1200mm (L) *500-1200mm (W)
2. Packaging height	Max.2400mm (1800/2800mm availiable)
3. Work efficiency	20-40 loads/H
4. Turntable speed	0-15RPM (adjustable, soft start & stop)
5. Bearing	Max. 2000kgs
6. Turntable size	D=1650mm, H=78mm
7. Film carriage	Driven pre-stretch carriage,stretch ratio up to 300%
8. Tower	Double chain design. Lifting speed adjustable
9. Control system	PLC
10. Weight	600kgs
11. Dimension	2745mm1650mm2860mm
12. Power	Turntable 0.75kw; film carriage 0.35kw; tower: 0.37kw; 220V 50HZ 1Phase
Some parts of the machine can be exchanged according to customer requirements

Specification:

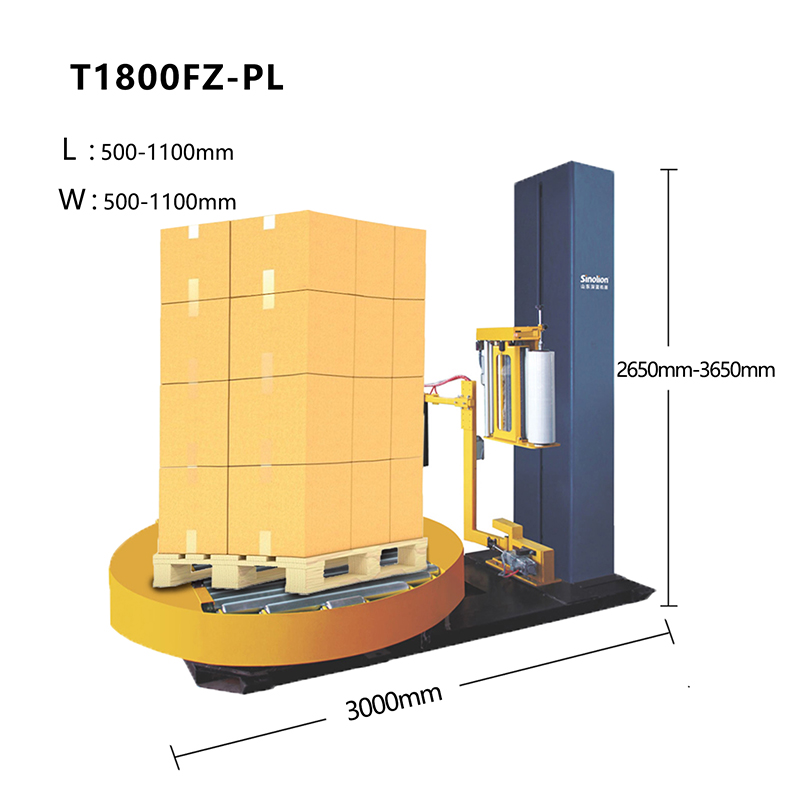

Wrapping size: (800-1200)mm*(800-1200)mm*(1800-2800)mm
Rotating speed of the turntable: 1-15rpm, variable frequency control motor driving
Size of the turntable: diameter 2000mm, Height: 490mm
Loading capacity: 3000kg
Film carrier: pre-stretch film carrier, the stretch rate up to 250%,
automatic film feeding
Film lifting mast: double chain structure, the lifting speed adjustable
Control system: PLC control system
Auto film feeding: pneumatic driving, auto film feed, auto film cutting
Total weight: 1000kg
Overall dimension: 3000mm*2000mm*(2650-3650)mm
Power supply: AC 380V/ 50HZ

Control system
PLC control system
Photo-eye pallet height sensor
Reinforce wrap allow more wrap on same point
Auto cut & grab film after wrap finished
Safety tower light alarm
Turntable
Reset function when wrap cycle finished

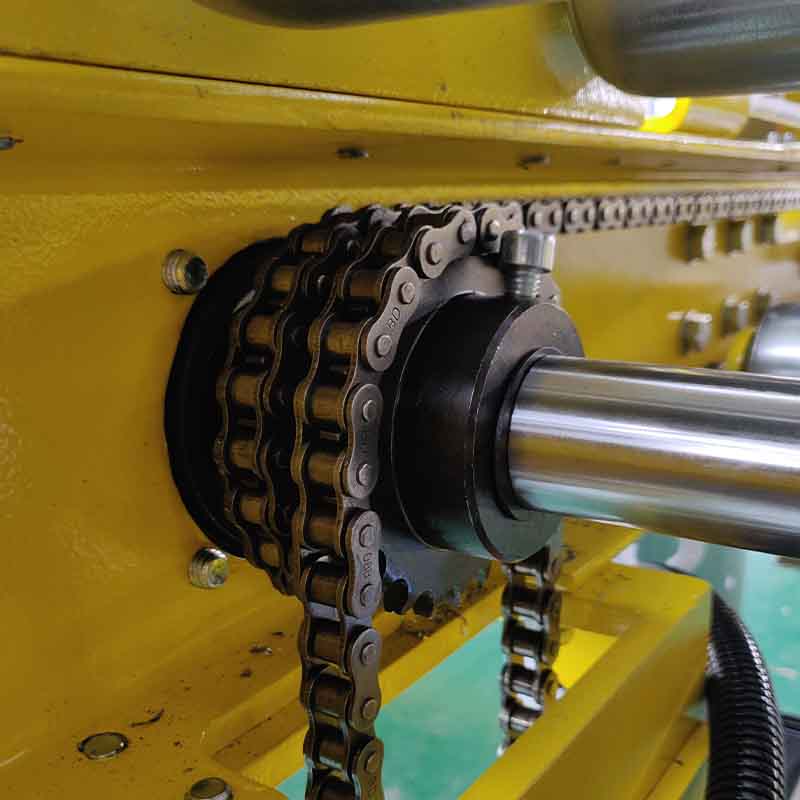

Heavy duty chain drive
Soft start/soft stop
Film carriage
Powered pre-stretch film with ratio 300%
Film feeding speed by seperate AC drive motor
Carriage door opens for effortless film change

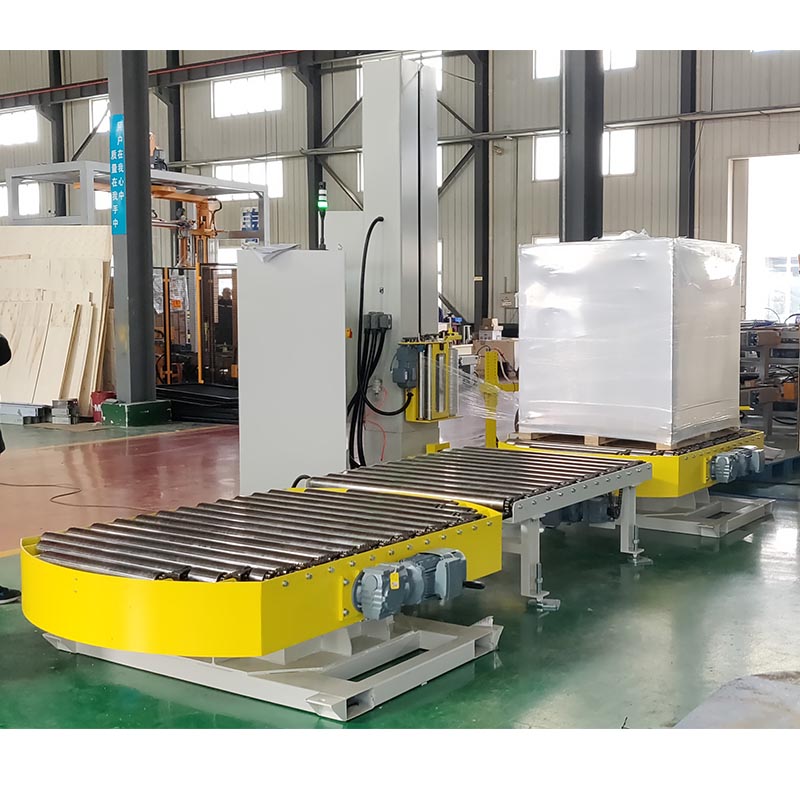

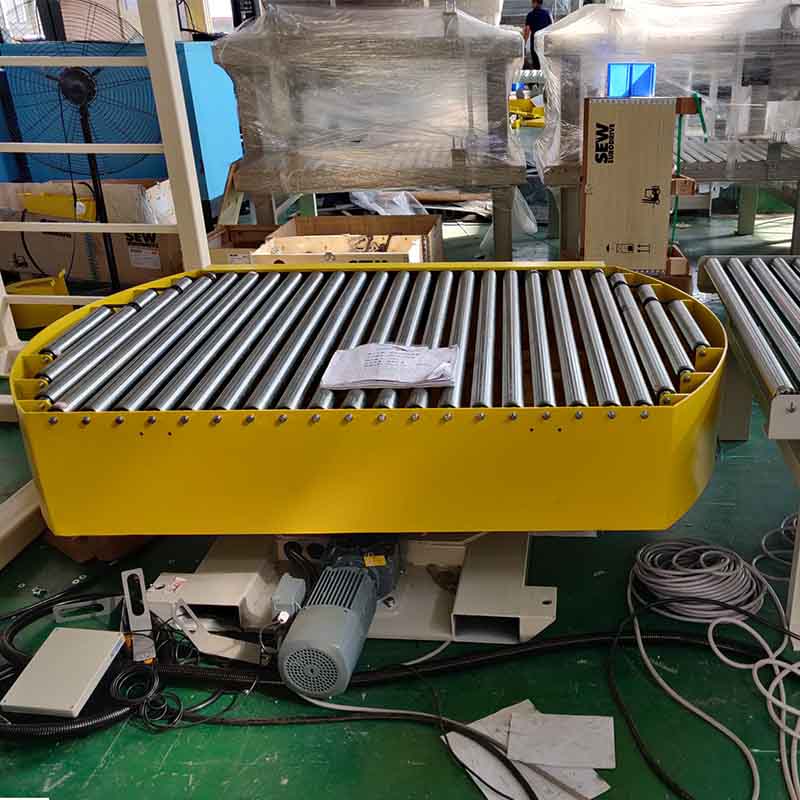

Conveyor
Heavy structural steel frame construction
Heavy duty conveyor guards

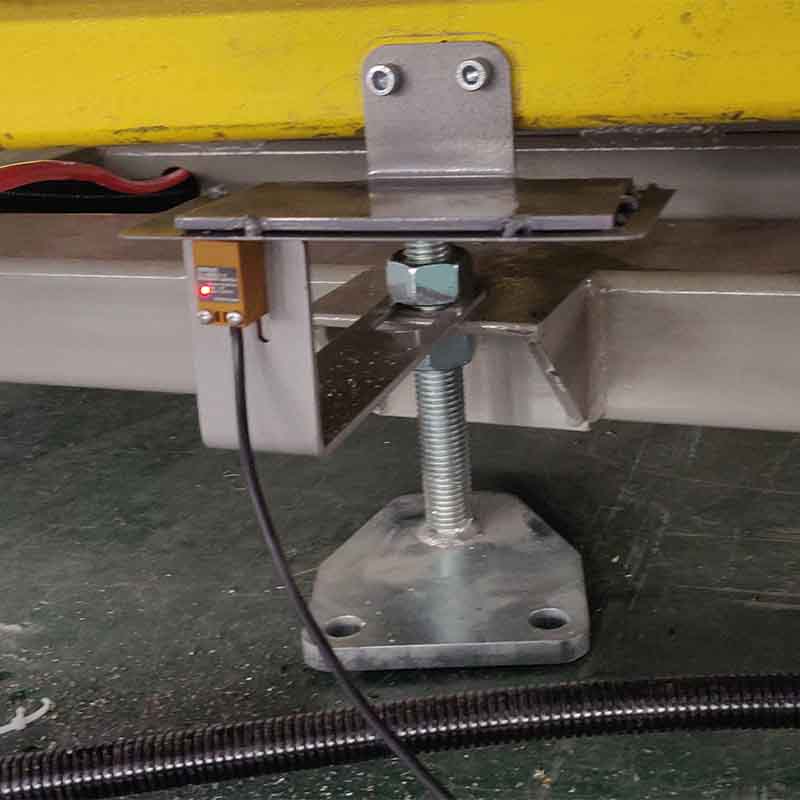

Adjustable leg height
Different roller diameter and roll spacing available
Conveyor speed: 12m per minute
Photo-eye pallet sensor
Auto film tail cut & wipe system
Pneumatic clamp grab the film tail after the wrapping finished
Hot wire cut film
Pneumatic brush activate
