Auto cutter pre-stretch turntable front film carriage wrapping machine
Pallet packaging computing device is used to wrap stretch movie round a loaded pallet. Stretch movie offers safety whilst the merchandise are being transported& stored. Stretch wrapper is extensively used in chemical industry, digital industry, domestic appliances, nutrients etc.
Technology specification
Item | Specification |
Wrapping size | 500-1300mm (L) *500-1300mm (W) |
Packaging height | Max.2800mm (2400/1800mm available) |
Work efficiency | 20-40 loads/H |
Turntable speed | 0-12RPM (adjustable, soft start & stop) |
Bearing | Max. 2000kgs |
Turntable size | D=2000mm, H=78mm (Diameter 1650mm, 1800mm Available) |

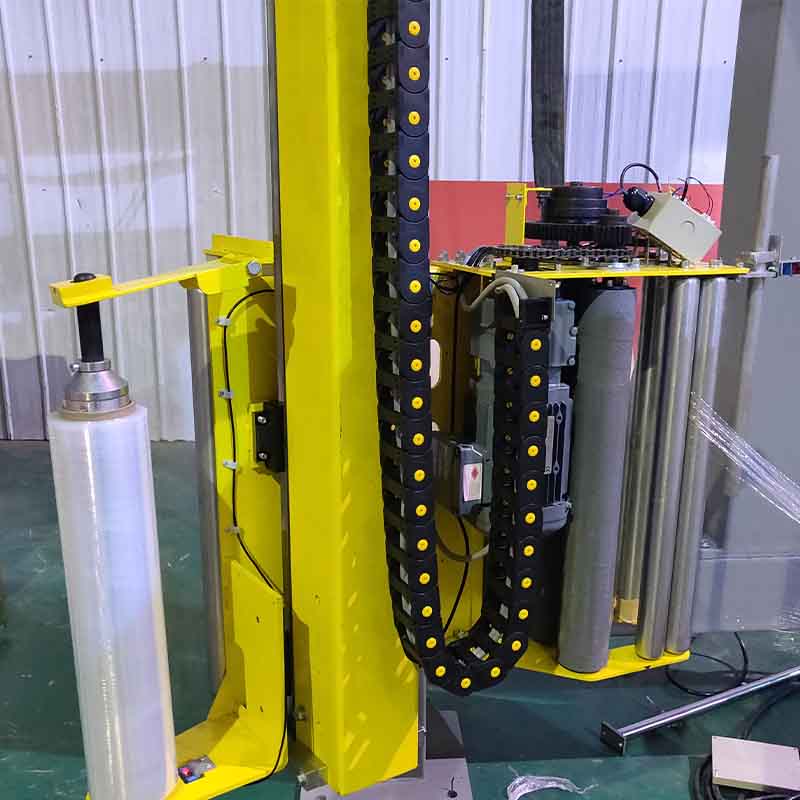

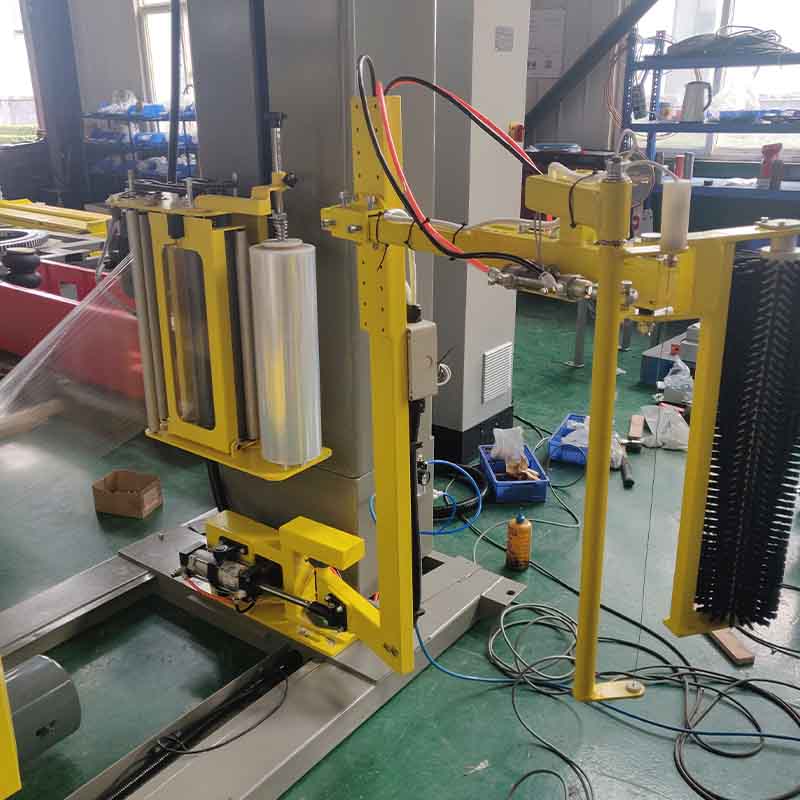

Film carriage | Driven pre-stretch carriage, move up and down on side of the tower |
Stretch ratio | Up to 1:3.5 (1:1.5, 1:2.5 Available) |
Tower | Double chain design. Lifting speed adjustable |
Control system | PLC |
Weight | 600kgs |
Dimension | 2745mm*1650mm*2860mm |
Power | Turntable 0.75kw; film carriage 0.35kw; tower: 0.37kw; 220V 50HZ 1Phase |
Remarks: Some parts of the machine can be exchanged according to customer requirements. Option I: Standard low profile ramp. Option II: Weight scale | |
Pallet with goods
Pallet material: timber
Goods on pallet: to be determined
Size of pallets (Length* width): 1200mm × 1000mm × 2300mm (with timber pallet)
Weight: max. 2000kgs
Conveying direction: to be determined
