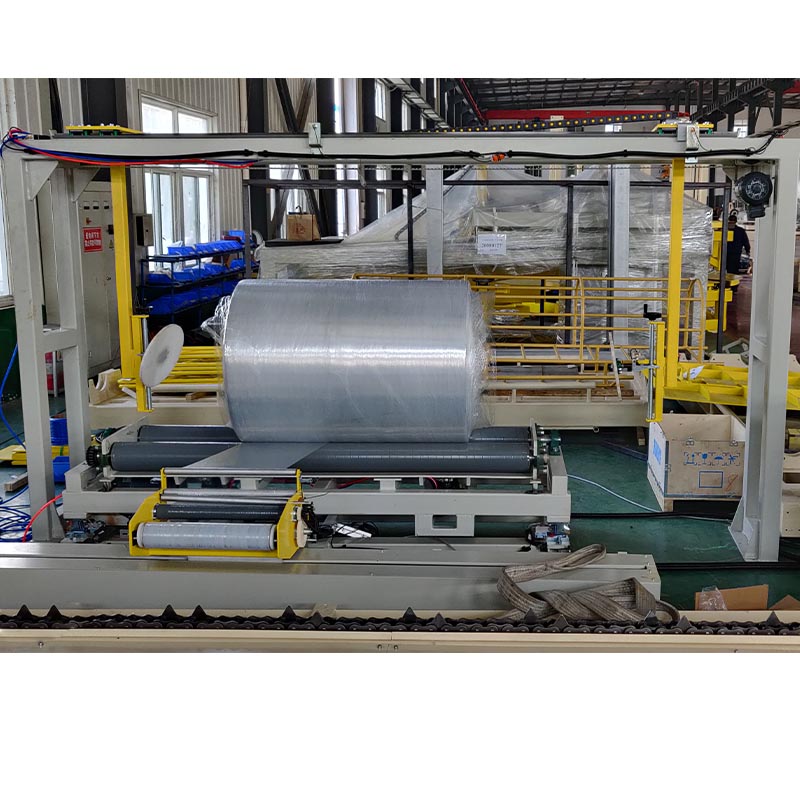

Horizontal Paper Roll Strapping Machine
Description and electric powered brand. The total desktop is outfitted with automated swords threading system. With the feature of auto tape threading.
The lifting of strapping heading is pushed by means of equipment motor SEW to make certain secure operation and dependable braking.With the strapping head of mannequin VK10 K120-16 of TITAN Germany. The inner of each strapping is 15s.
The PLC is SmartS7-200 manipulate device (SIEMENS). The client can v set the instances and distance as per the requirement.
Material: | |
Width: | 500mm |
Thickness: | 17-35μm |
Inner Core: | 76.2mm |
Outer-Dia.: | ≤260 mm |
Specification
2.1 Strapping specification:
Size of pallet: 1300mmx1300mmx2000mm
2.2 Requirement for the placing of the pallets.
The paper roll is laid on the conveyor with the center line parallel with the ground surface
2.3 Strapping head:
Feeding speed of the belt: 2.5-4.5m/s
Tension force, infinite regulation: 200-2500N
Hot melting sealing, length of sealing head: 27mm
Material of belt: PET
Width of belt: 9-16mm (Recommend 12mm )
Thickness of belt: 0.6-0.8mm
2.4 Strapping efficiency: 15 seconds/strapping
2.5Power: 380V/3P/50Hz
Control Voltage: 24V
Power:3Kw
