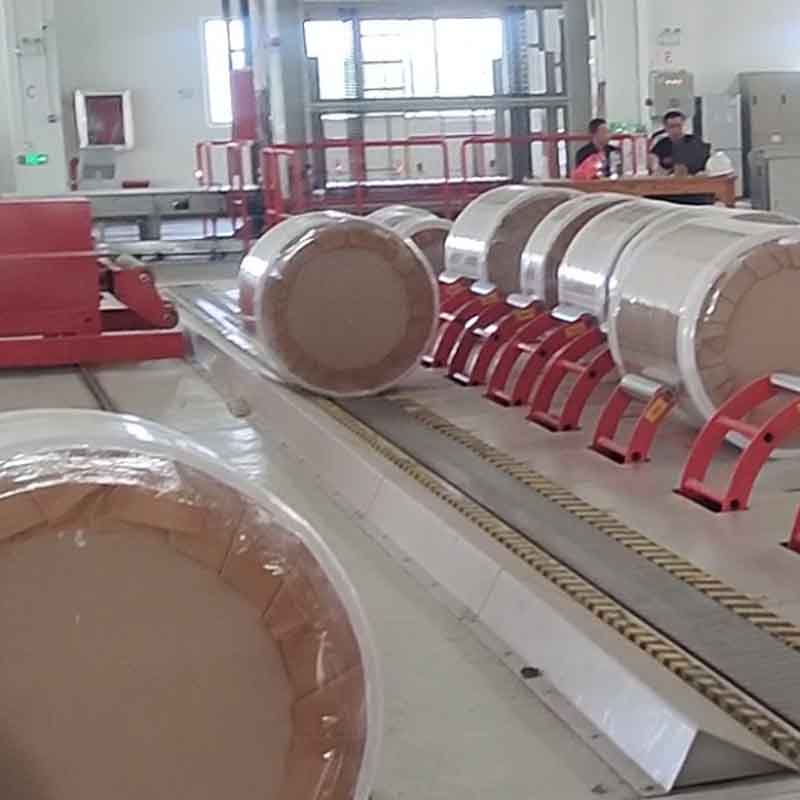

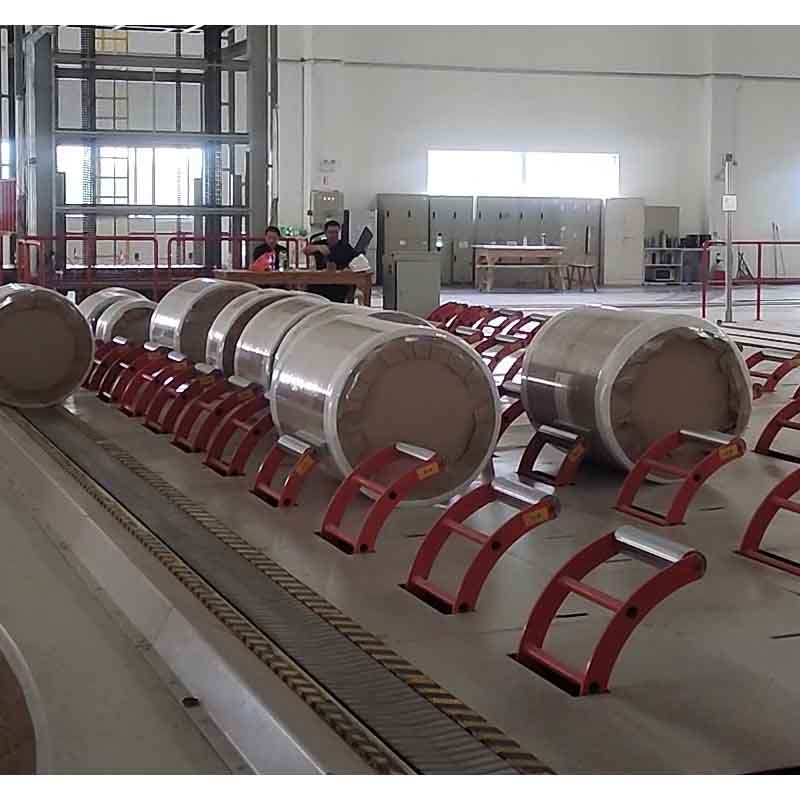

Paper Roller V-Salt Conveyor

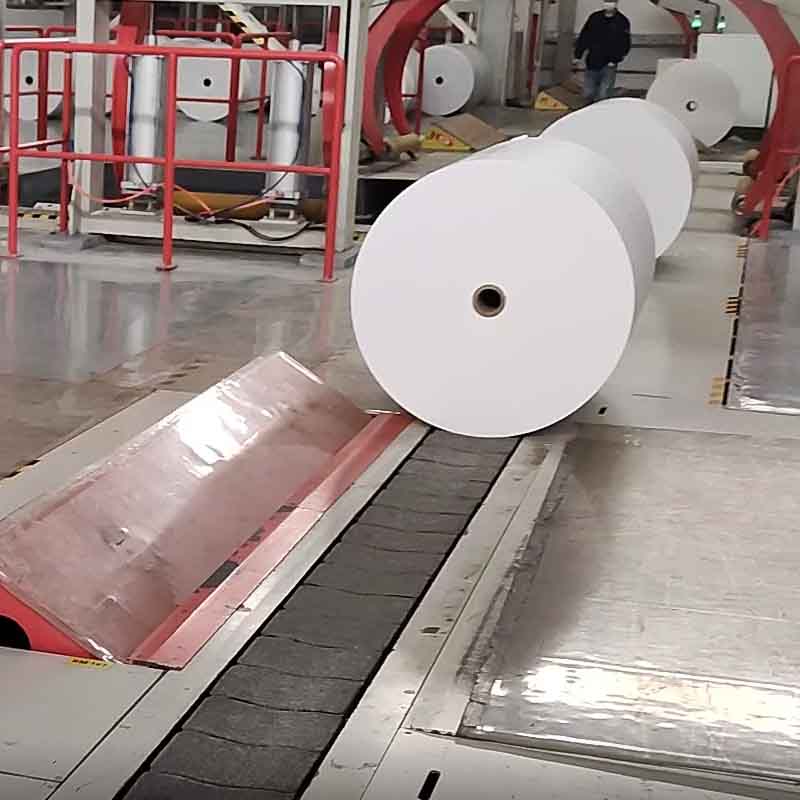

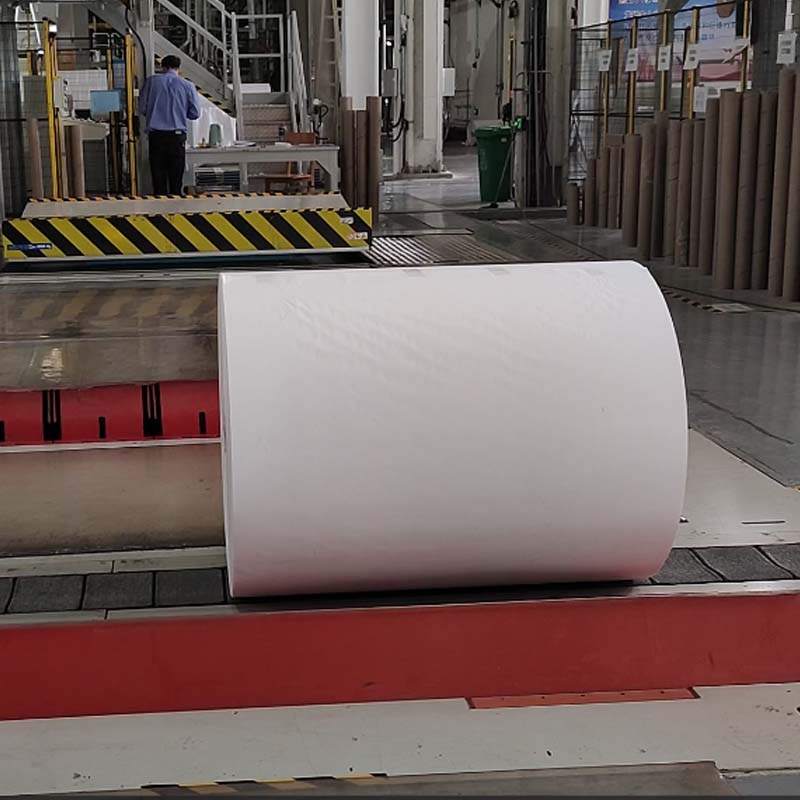

1. the V type is especially made for the paper roll..
2. the v-slat conveyor is usually used in the paper roll packing and transporting system.
3. Automatic conveying the finishing rolls in Paper making tactory,also can be used to convey other products with roll shape.
Chain pitch: | P = 63.5 mm |
Slat width: | B = 55 mm |
Slat length: | L = 250 mm |
Thickness: | S = 8mm, 16 Mn Steel |
Conveyor height | 12000mm*5 sets+17500mm*1 set |
Conveyor height | 800mm |
Speed of conveyors | 18m/min (Can be adjusted or as required) |
Slat bearing,Gear motor | Chinese brand |
Power | 3kW+4kW (or as required) |
chain conveyer, chain pitch P=63.5mm,V-slat width:B=50mm,slat length:B=250mm,Thickness:S=8 mm,Material 16 manganese.
2. Slat are being made V type to transport paper rolls with a 170-degree angle.
3. Slat conveyor weight capacity:3000kg/m.
4. Bearings in roller of conveyor chain for running flexible and being greased through the space of the chain roller. Not often and no pollution.
5. Steel structure burden machine frame, cell design applying.
6. Vertical shaft mounted gear motor applied for driving.
7. Required controlled components and mounting bracket equipped.
8. Slat conveyor pit mounted to min space occupation and no effect to other operation in workplace.
9. Repair and maintenance pit and cover at head and tail driving parts and convenient for assembling and disassembling.
