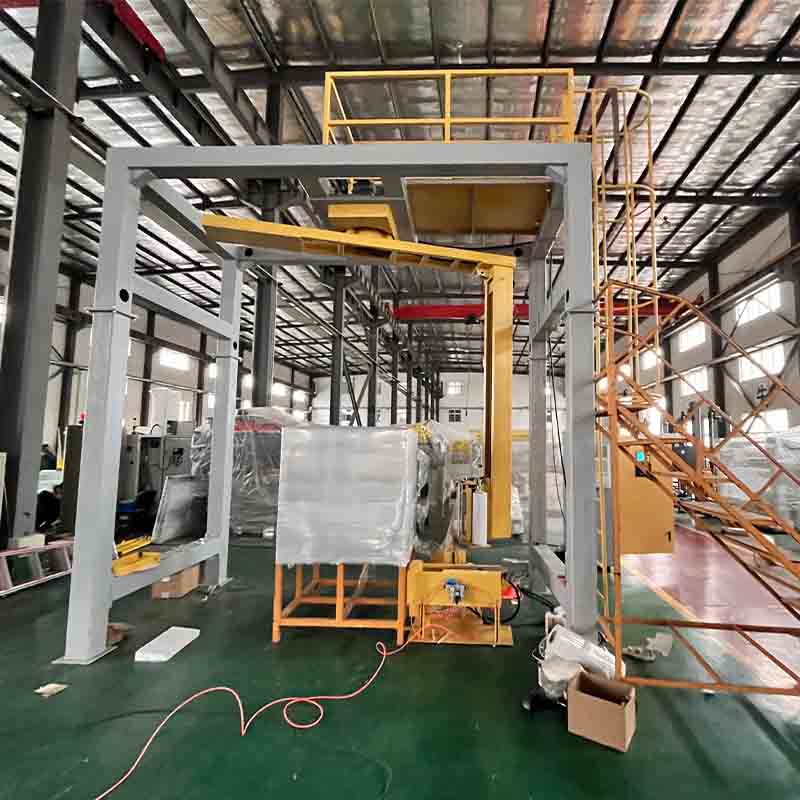

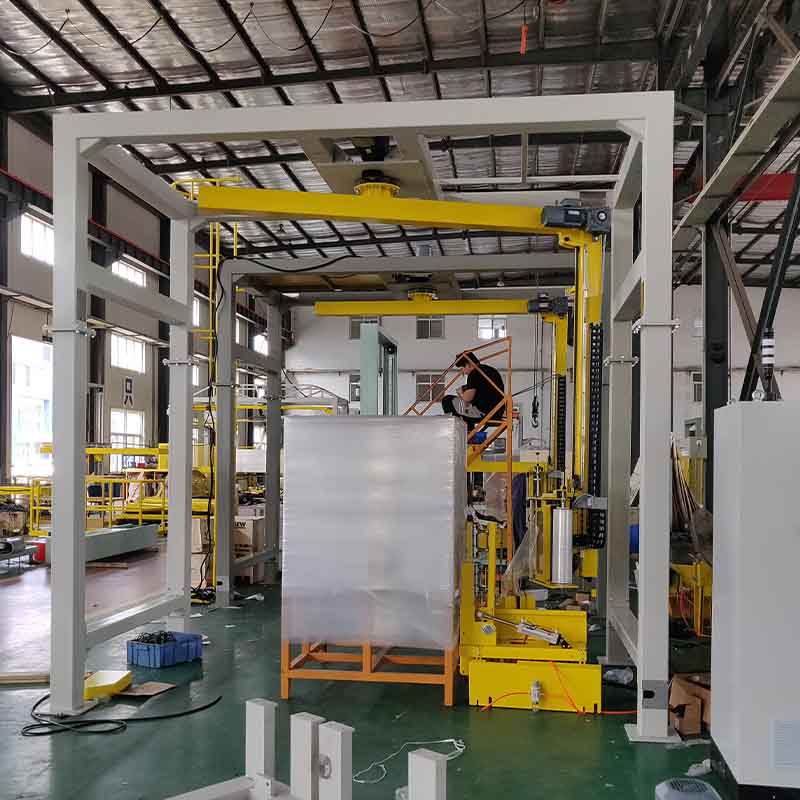

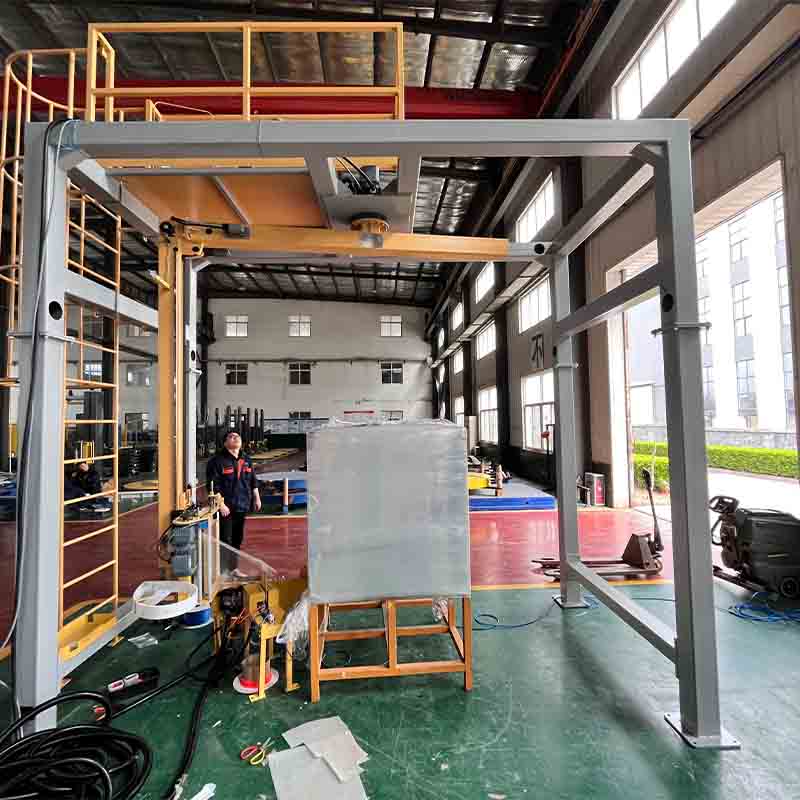

Pre-stretch film pallet rotary arm wrapper

Automatic rotary stretch film wrapper R1800FZ-PL-CS is a fully automatic stretch wrap system with top platen. It can be connected on-line with other automatic equipment. It is designed for tall stacked loads that are unstable or too heavy to rotate. It is suitable in the wrapping of beverage, food and other industries widely. It is easy to be set up and used. Pre-stretch carriage can save the stretch film and protect the environment.

The maximum rotary speed of arm can up to 35 rpm. It will save labour cost obviously.

The top platen will keep the stability of the pallet to ensure excellent wrapping results.

Contact Now E-Mail Telephone WhatsApp

Product Details

Item	Specification
Wrapping specifications	(500-1300)mm*(500-1200)mm.
Packing height	2400mm
Packaging efficiency	30-60 loads/H available. (Option: or 20-40 loads/H)
Arm speed	0-35rpm frequency control. (Option 15rpm, 25rpm)
Arm performance	High sensitivity emergency brake system, the arm automatically reset.
Film carriage system	Pre-stretch film carriage, stretch ratio up to 300%, automatic film feeding & cutting device, adjustable speed.
Lifting column	Chain structure, speed variable frequency adjustable.
Control system	PLC programmable control, wrapping layer adjustable, automatic height sense.
Machine weight	680KG (without support)
Machine dimensions	3440mm1800mm3220mm (without convey line)
Power/ voltage	Arm 1.1/1.5kw, Film carriage 0.37kw, lift 0.37kw/0.55kw, conveyor 0.75kw/AC220V
Option: Safety warning and protection fence, Photo-eye protection for infeed and outfeed goods (Conveyor line)

Packing Machine

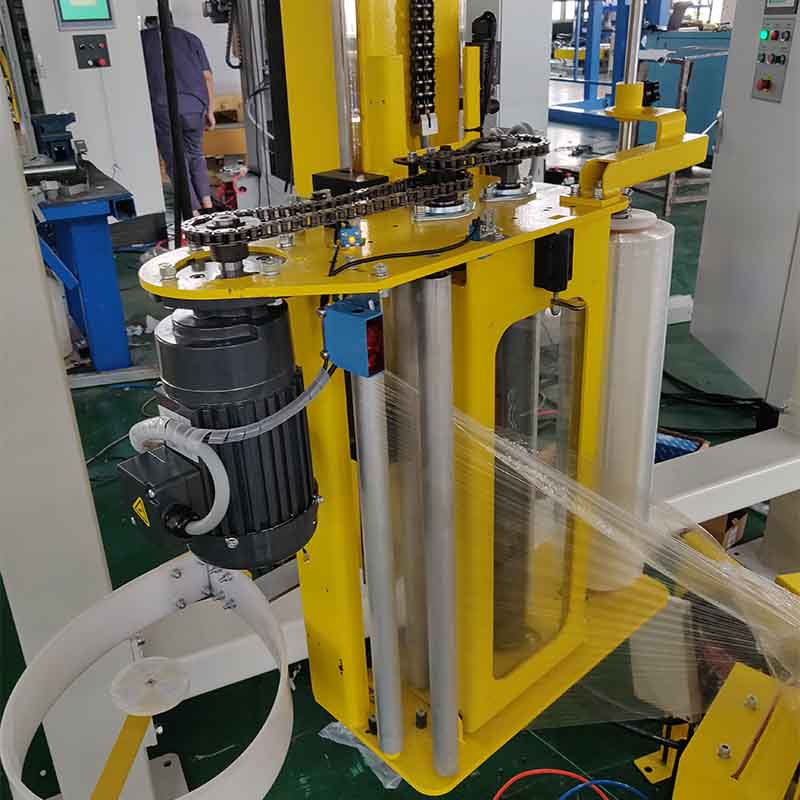

Film Carriage

--Powered pre-stretch system up to 300% to min film consumption(Prestretch ratio can be specially made according your requirements.)
--Film delivery variable speed by separate AC Drive Motor
--Film dancer-bar with variable speed output
--Rotating Power slip ring provide power required for carriage drive on rotary arm.
