Online Rotary Arm Stretch Wrapper for Food Beverages Chemicals Bottle Bag Barrels Carton Box Pallet Mechanical Palletizer Packing Line

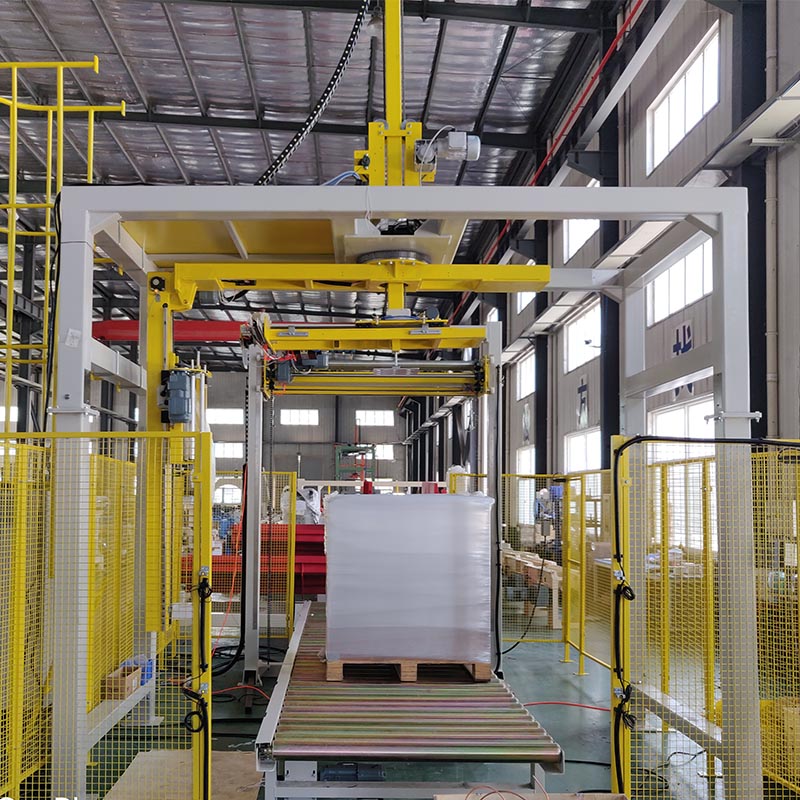

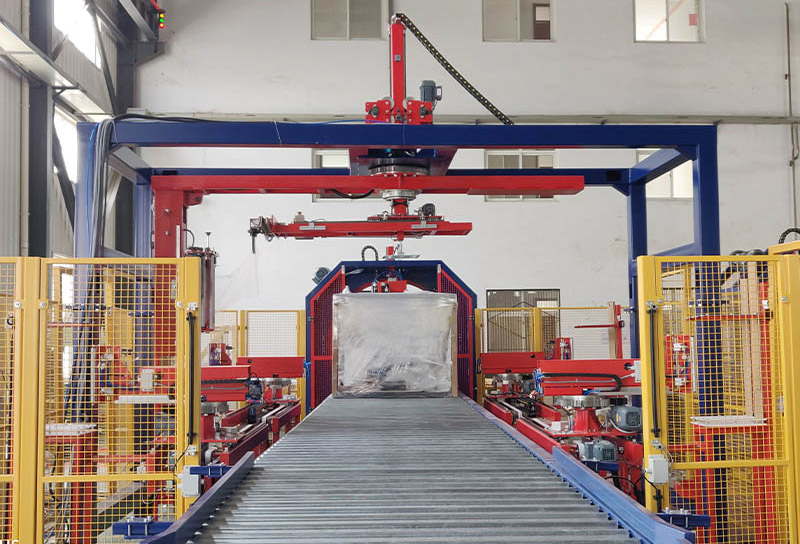

Product Feature -Rotary Arm Wrapping Machine
The working principle of the rocker winding machine is that the cargo is kept stopped, and the cantilever is wound around the outside of the cargo, which is suitable for large volume and heavy cargo. The rocker-arm winding machine is equipped with an automatic up-and-break film structure, which can be loaded on the conveyor line for online use without manual labor. Suitable for online operations.
Technical specifications:
Machine size: | L5530×W2645×H3900 (mm)(max) |
Work efficiency: | 30 loads/H (wrapping and top-sheeting) |
Rotary speed: | 15rpm |
Power supply: | 380Vac/3phases/50Hz, Air supply:0.5-0.6Mpa, |
Rotary arm stop by safety bumper and reflection photo eye sensing and obstacle in the rotating area.
Powered pre-stretch system up to 250% to min film consumption
Lifting unit in wrapping field will lift pallet up to 150mm above the roller conveyor
Full auto feeding film and cutting film
