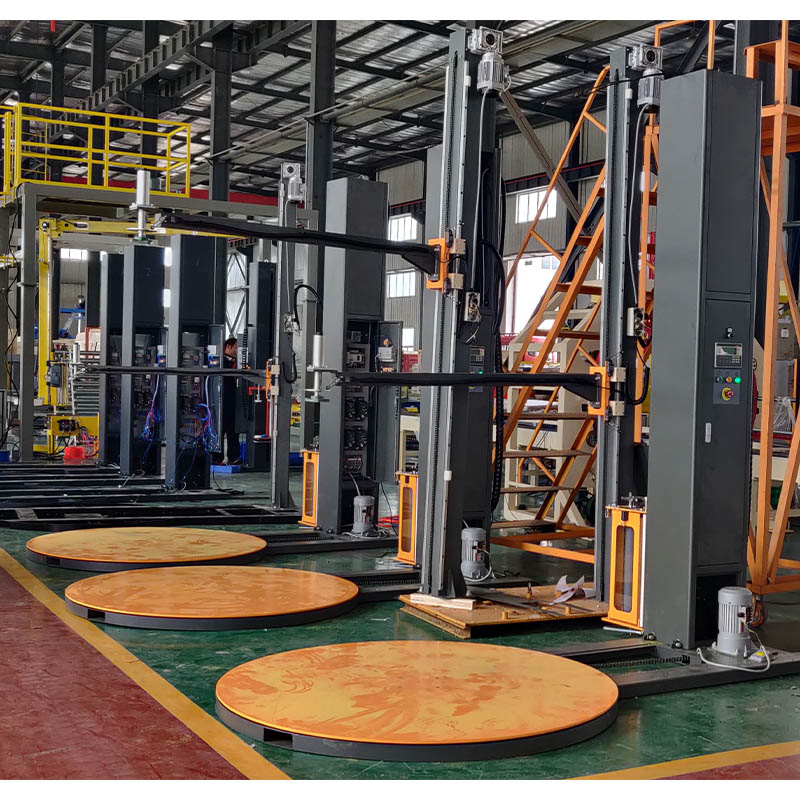

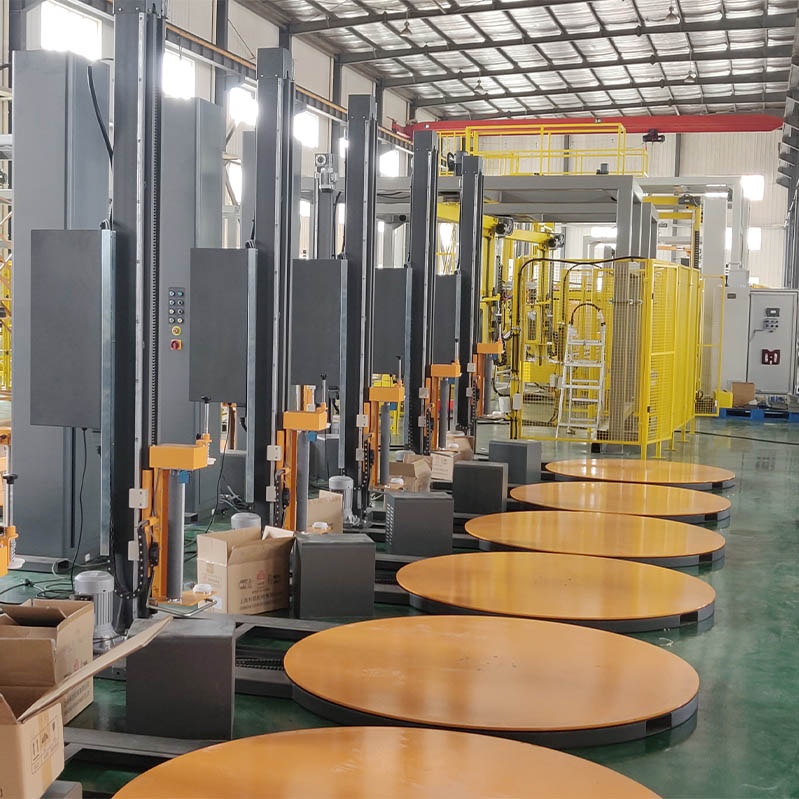

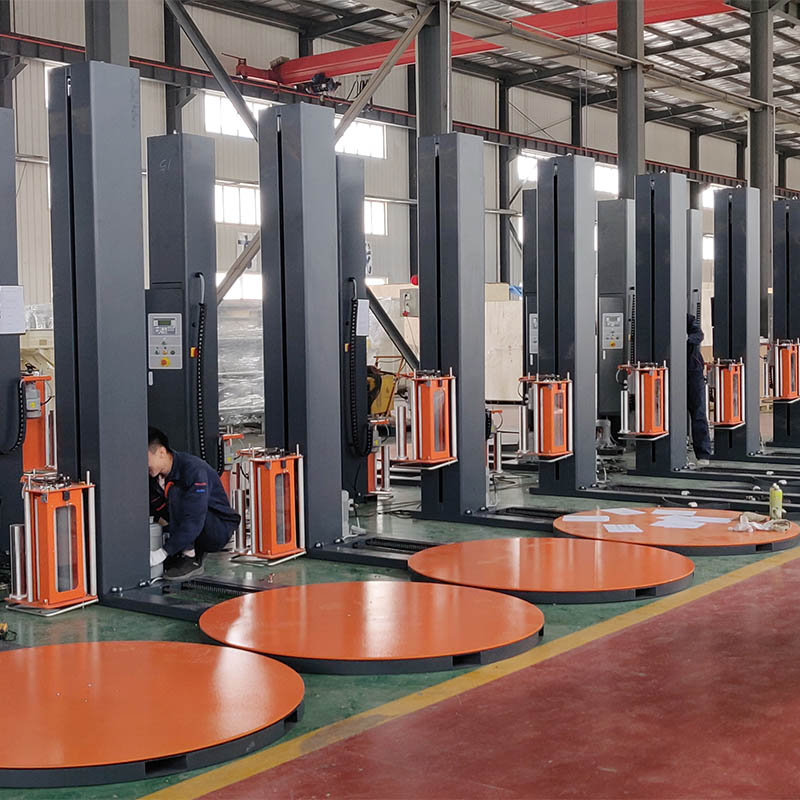

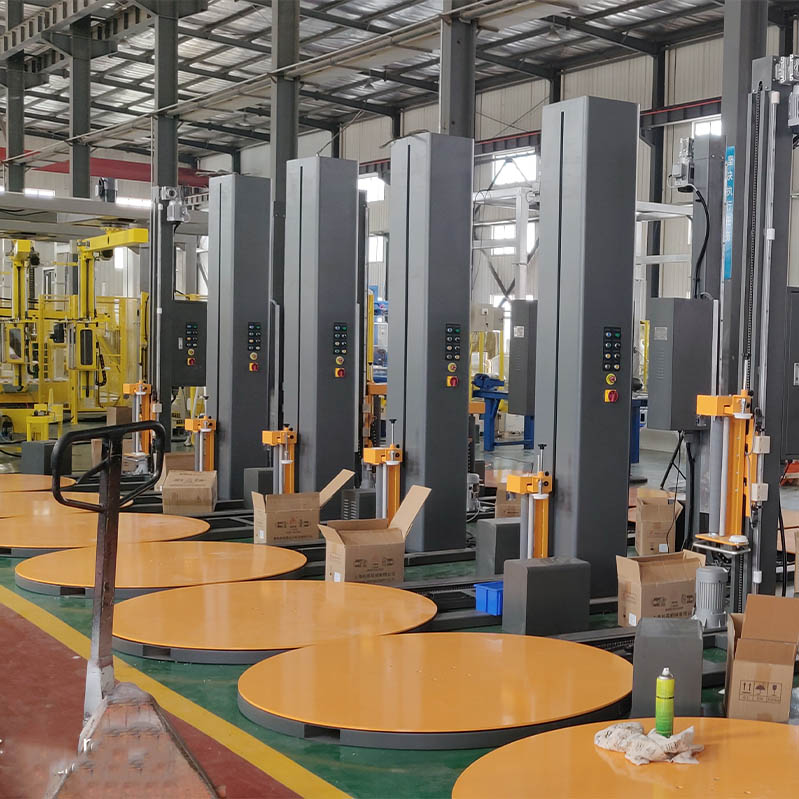

Full Automatic Stretch Auto Pallet Strech Wrap Machine
Turntable
Reset function when wrap cycle finished
Heavy duty chain drive
Soft start/soft stop
Film carriage
Powered pre-stretch film with ratio 1: 2.5
Film feeding speed by seperate AC drive motor
Carriage door opens for effortless film change
Product Details
| Control system | PLC control system |
| Photo eye pallet height sensor | |
| 3-12 RPM variable turntable speed by frequency changer | |
| Turntable | Go home position after wrap cycle finished |
| Soft start/soft stop | |
| Heavy duty chain drive | |
| Film carriage | Powered pre-stretch system to 300% to min film consumption |
| Film delivery barlable speed by spparate AC Drive Motor | |
| Heavy duty double-chain carriage lift, calm and safety | |
| Technology Data | Max load size(mm): 1200(L)X1200(W)X2400(H) |
| Turntable dia: 1650mm | |
| Turntable Height: 77mm | |
| Turntable weight capacity: 2000kgs | |
| Turntable speed: 3-12rpm | |
| Electrics: 220V 50HZ 1 phase | |
| Power: 1.5KW |
Conveyor
Heavy structural steel frame construction
Heavy duty conveyor guards
Adjustable leg height
Different roller diameter and roll spacing available
Conveyor speed: 12m per minute
Photo-eye pallet sensing
Auto film tail cut & wipe system
Pneumatic clamp grab the film tail after the wrapping finished
Hot wire cut film
Pneumatic brush activate
