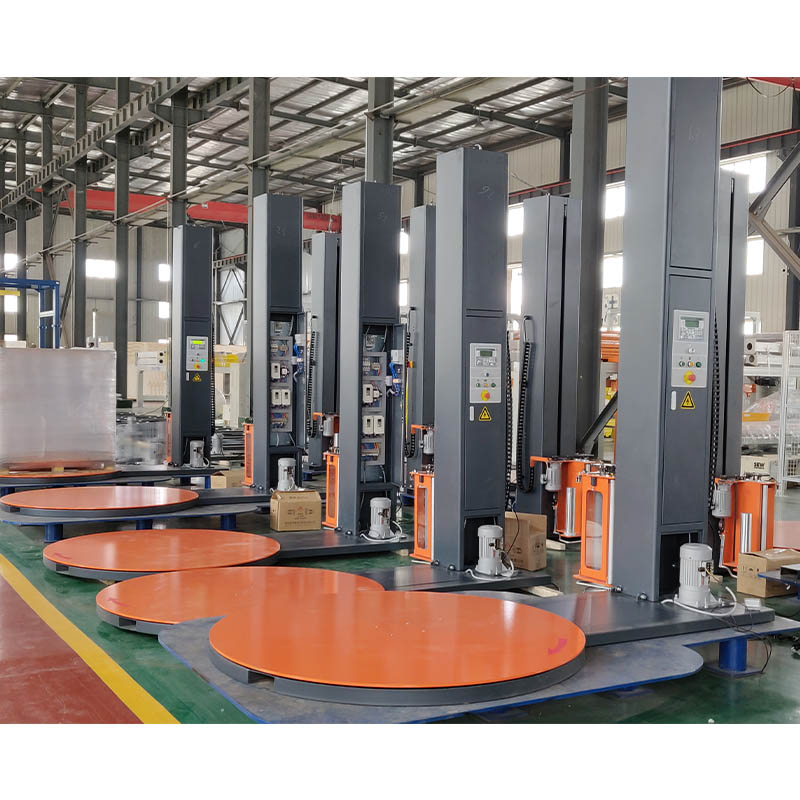

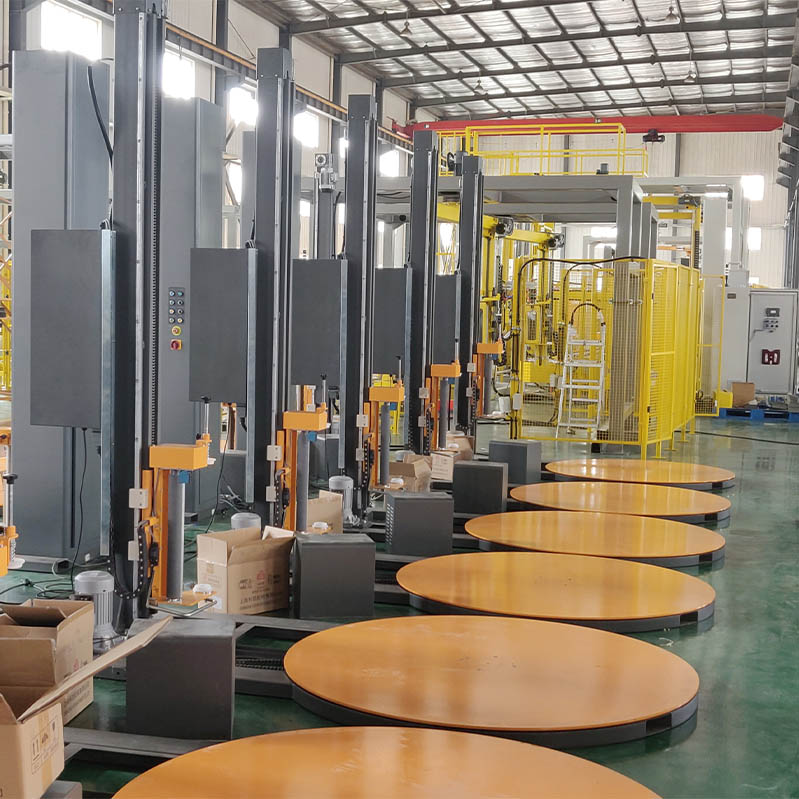

Shrinkage Film Utomatic Stretch Wrapping Machine
The wrapping realize dust-proof, moisture-proof, less packaging cost, improve packing efficiency, and reduce product loss in transportation.
Item | Specification |
Wrapping size | 500-1300mm (L) *500-1300mm (W) |
Packaging height | Max.2400mm (1800/2800mm available) |
Work efficiency | 20-40 loads/H |
Turntable speed | 0-12RPM (adjustable, soft start & stop) |
Bearing | Max. 2000kgs |
Turntable size | D=1800mm, H=78mm |
Film carriage | Driven pre-stretch carriage, move up and down on side of the tower |
Stretch ratio | Up to 250% |
Tower | Double chain design. Lifting speed adjustable |
Control system | PLC |
Weight | 600kgs |
Dimension | 2745mm*1800mm*2860mm |
Power | Turntable 0.75kw; tower: 0.37kw; Film carriage 0.35kW, 220V 50HZ 1Phase |
Remarks: Some parts of the machine can be exchanged according to customer requirements. Option I: Standard low profile ramp. Option II: Weight scale | |
Rotary ring pallet wrapper has a big ring to carry film carriage rotates around pallet. Film carriage rotates in very high speed and very smooth movement. This is ideal equipment for high speed production line.
