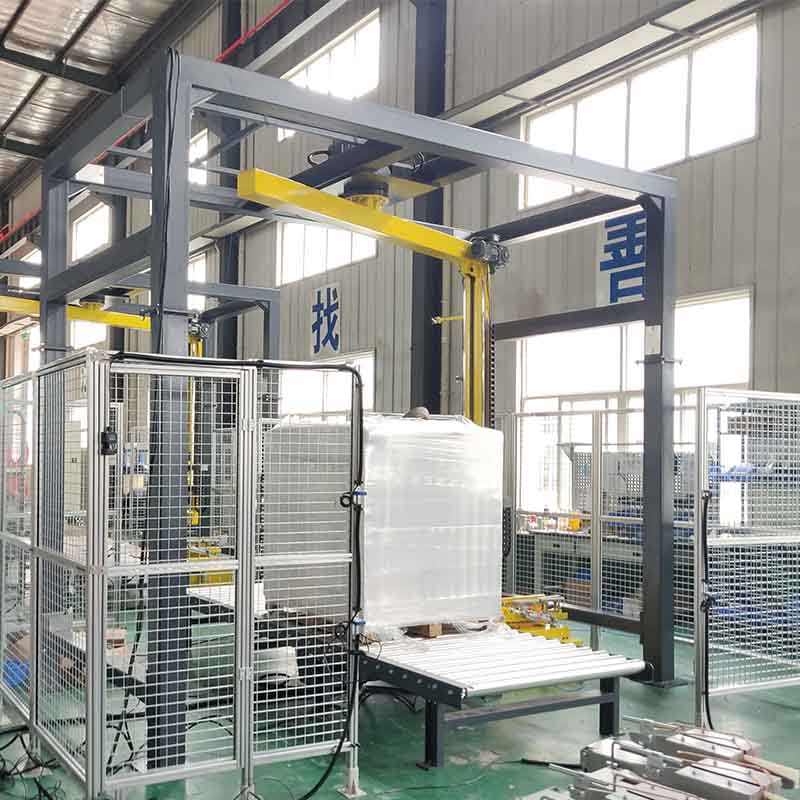

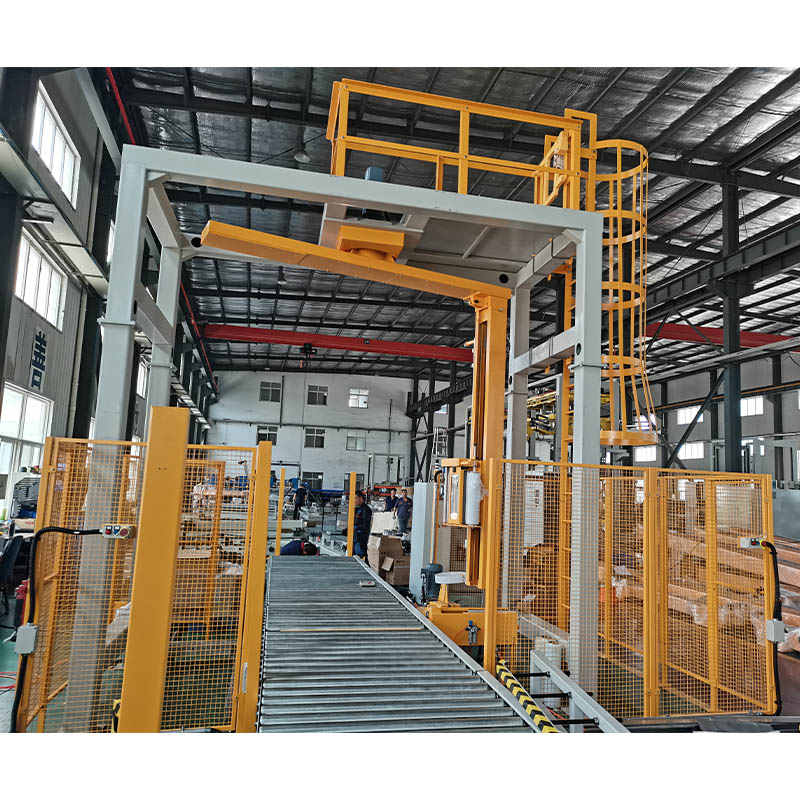

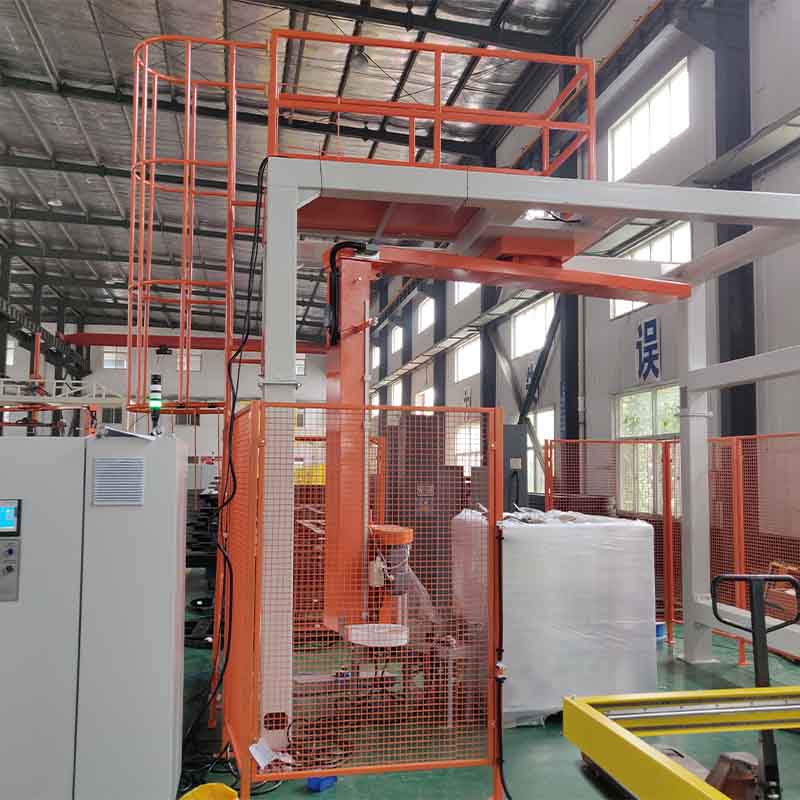

Rotary Arm Wrapping Machine with Top Sheet Dispenser

PLC control, the width can be set on the HMI;
Auto sense the height of the pallet width;

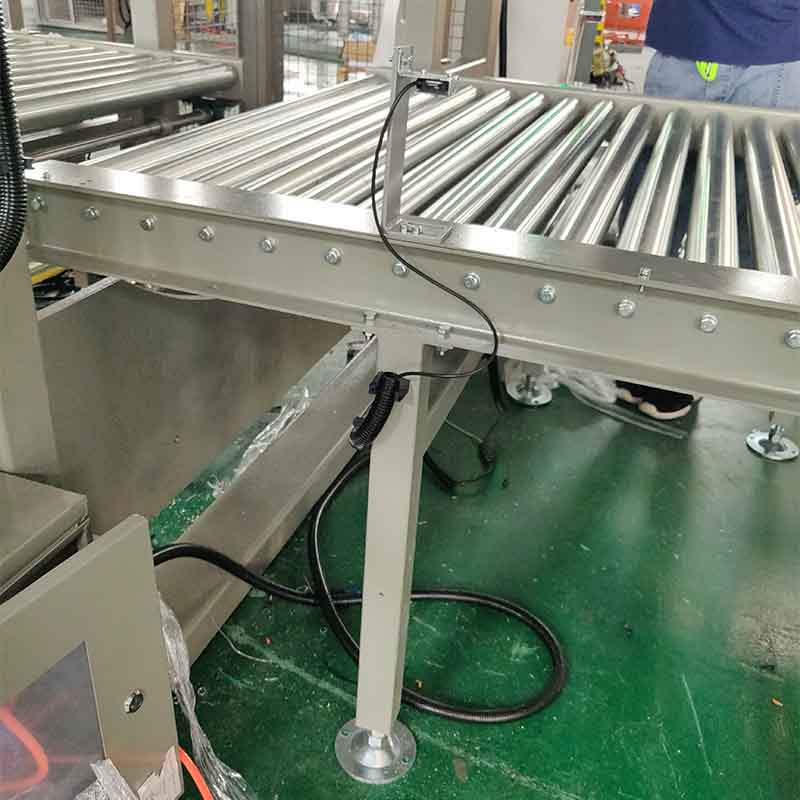

Chain drive, positioning the pallet precisely;
Frequency inverter adjust the speed;
Manual or auto mode are available.

Contact Now E-Mail Telephone WhatsApp

Product Details

Item	Specification
Wrapping specifications	(500-1300)mm*(500-1200)mm.
Packing height	2400mm
Packaging efficiency	20-40 loads/H available. (Option: or 30-60 loads/H)
Arm speed	0-15rpm frequency control. (Option 25rpm, 35rpm)
Arm performance	High sensitivity emergency brake system, the arm automatically reset.
Film carriage system	Pre-stretch film carriage, stretch ratio up to 300%, automatic film feeding & cutting device, adjustable speed.
Lifting column	Chain structure, speed variable frequency adjustable.
Control system	PLC programmable control, wrapping layer adjustable, automatic height sense.
Machine weight	680KG (without support)
Machine dimensions	3440mm1800mm3220mm (without convey line)
