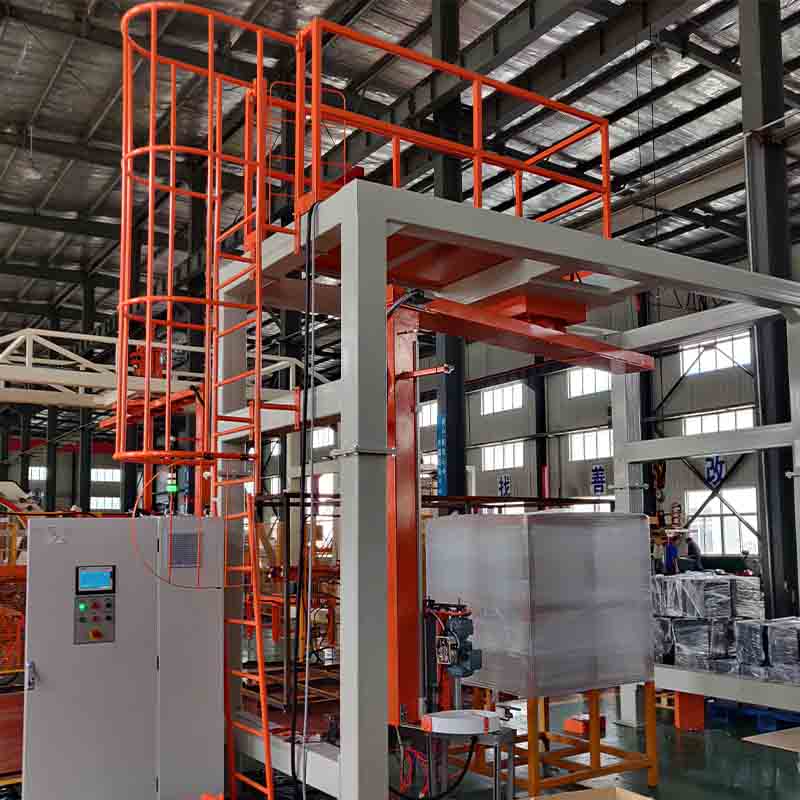

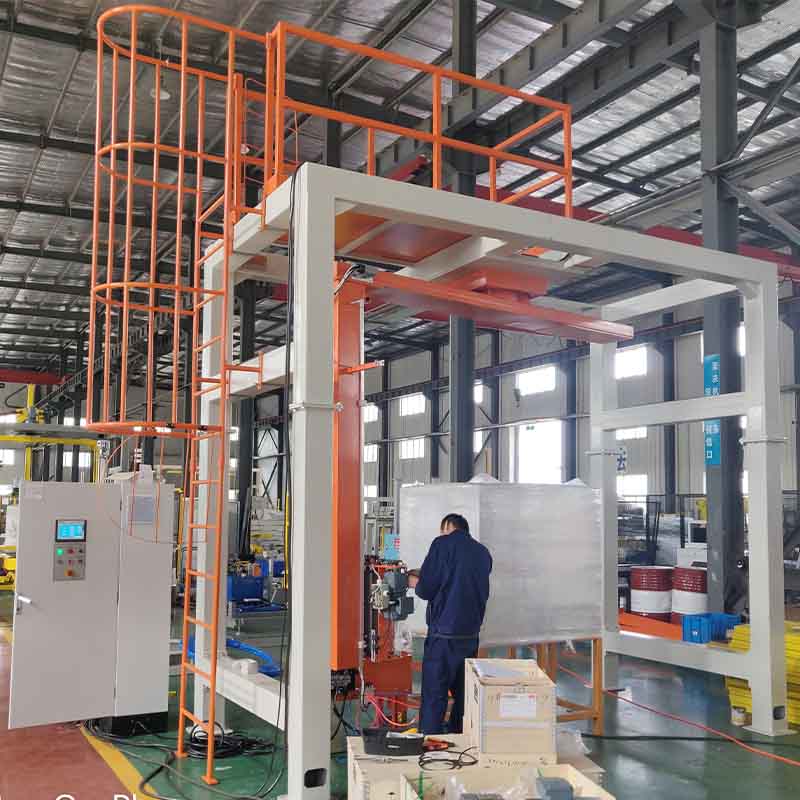

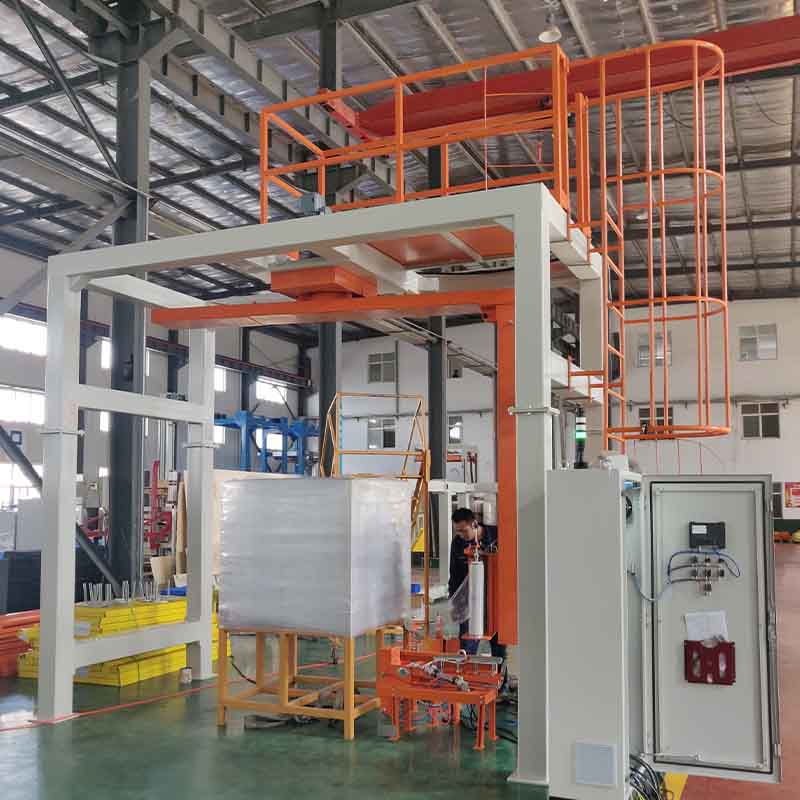

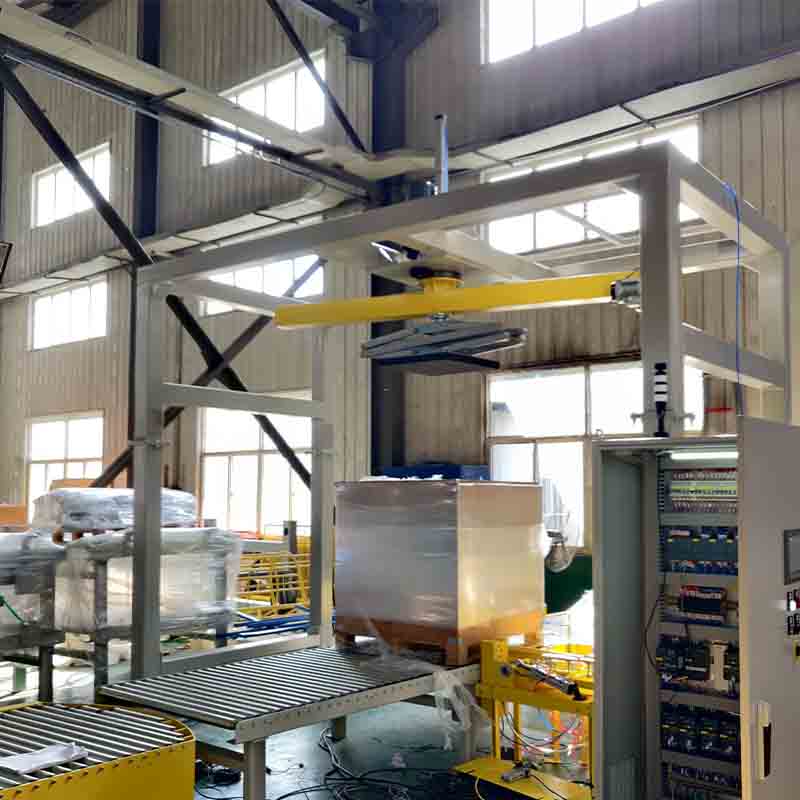

Rotary Arm Pallet Stretch Wrapping Machine for Packaging Line

The photoelectric switch is installed on the film carriage, automatic detect the height of the pallet

Driving motor: AC motor, speed adjustable

Contact Now E-Mail Telephone WhatsApp

Product Details

Item	Specification
wrapping size(mm)	500-1300mm (L)×500-1200(W)
Wrapping height (mm)	2200mm
Packing efficiency	20-40 loads / hour
Turntable turning speed	0-15rpm (Adjustable, soft start&stop)
Roller conveying speed:	18mpm adjustable
Turntable diameter	2000mm
Height of turntable	To be designed based on customer requirements
Power supply	2.0KW 380V 50HZ 3Phase
Max. load capacity	3000kgs

LLDPE Film Packaging Device

Power rated of film delivery driving motor: 0.37KW

Film delivery following up mechanism

The film delivery following up the rotary arm rotating, the proximity switch control the start/stop of film delivery motor to follow up the rotary arm
