High Quality Grade High Speed Fully-Automatic Online Rotary Arm Wrapper Pallet Wrapping Machine

Control System --PLC control
--Reinforce wrap allow more wrap on same location
--Film Tension Control adjustment on the panel
--0-35RPM arm variable speed by frequency changer
--Separate variable carriage up/down speed
--Cycle pause capability
--Separate start, reset and emergency stop buttons
--Manual carriage up/down switch
--Turntable jog button
--Flash light for machine in operation
--Rotary arm stop by safety bumper and reflection photoeye sensing and obstacle in the rotating area

Contact Now E-Mail Telephone WhatsApp

Product Details

Wrapping product size	(500~1300)mm×(500~1200)mm
Wrapping height	1800/2600mm
Wrapping efficiency	30-60 piece/h
Rotary arm speed	0~15rpm,0~25rpm,0~35rpm transducer adjustable
Rotary arm capacity	high sensitive emergency stop system, rotary arm automatic re-back
Carriage system	Pre-stretch film carriage, up to 250%, automatic transporting film, speed is adjustable
Automatic install and cut film device	Automatic clamping, cut film, automatic without worker
Control system	PLC programme, wrapping layer & times is adjustable, automatic sensor goods height
Safety protect	Alarm and protect net, electric safety device

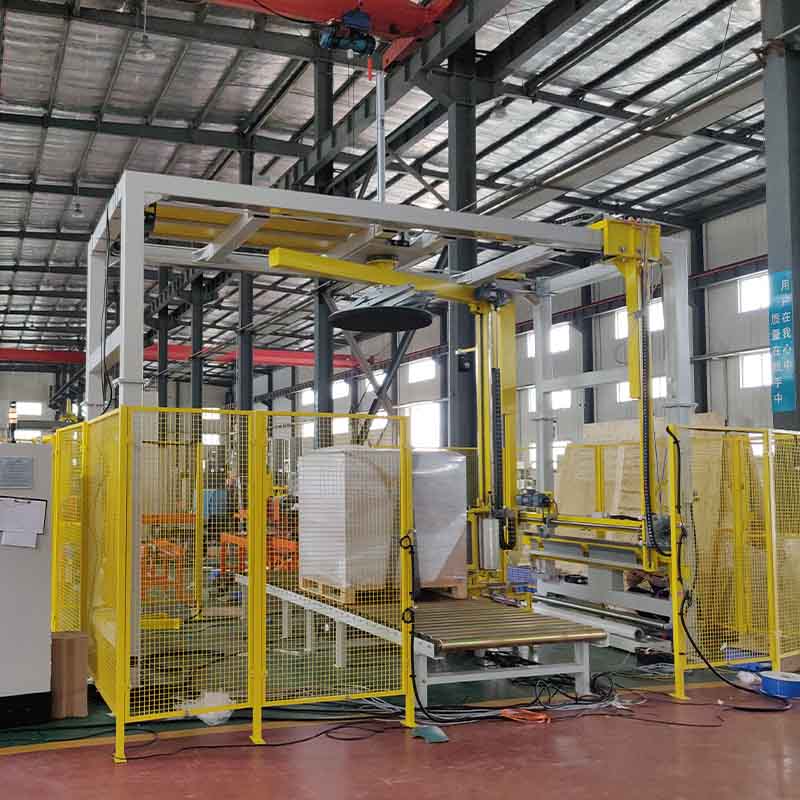

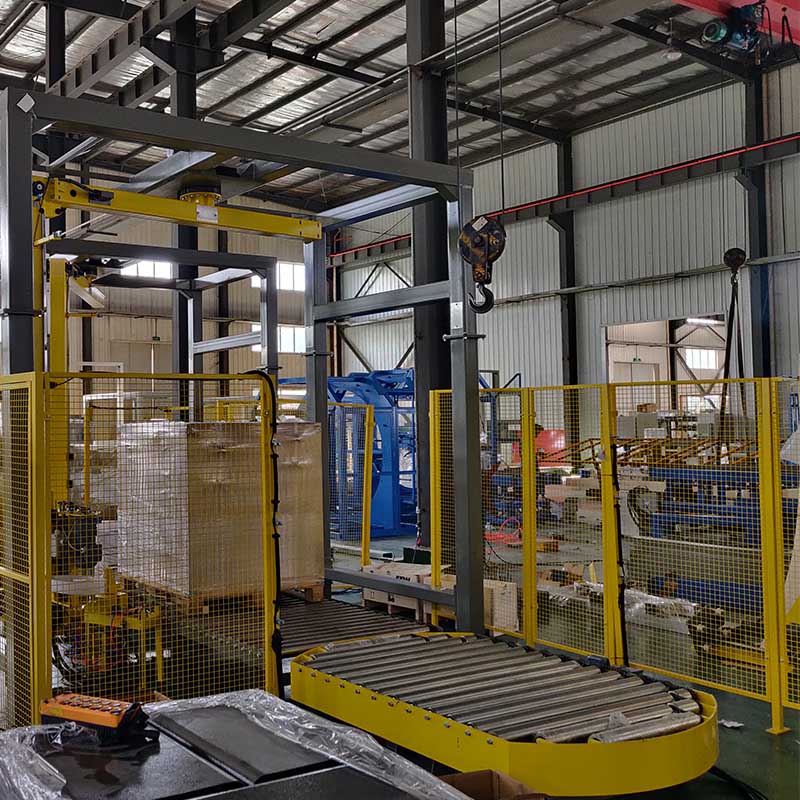

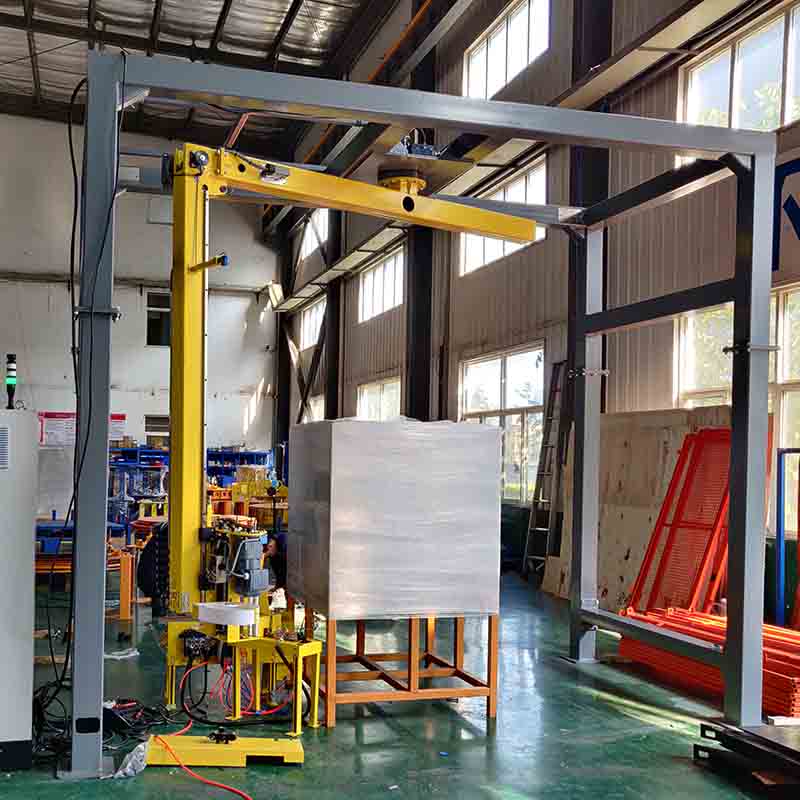

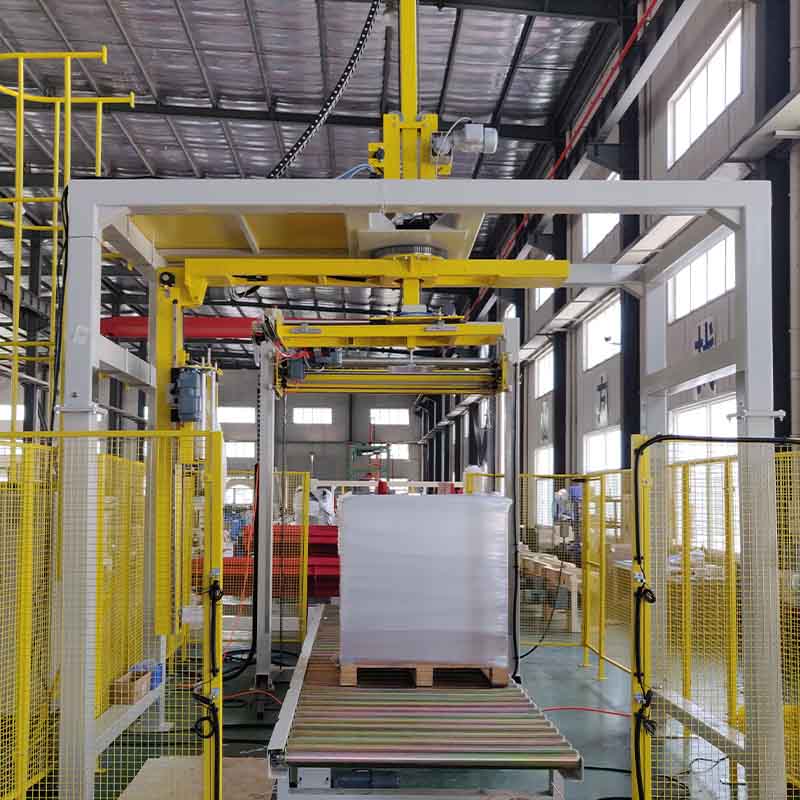

Stretch Film Pallet Stretch Wrapper

Touch screen, PLC easy operation control; Pre-stretch system up to 300% (customized); Auto
cut &grab film after wrap finished; Flash light for machine in operation.

Stretch Film Pallet Stretch Wrapper
