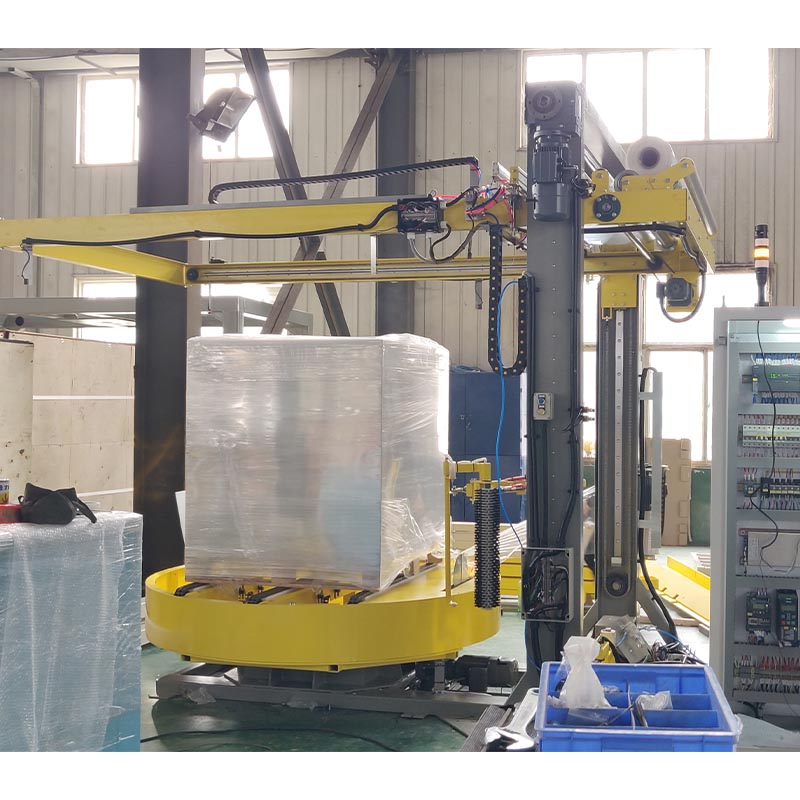

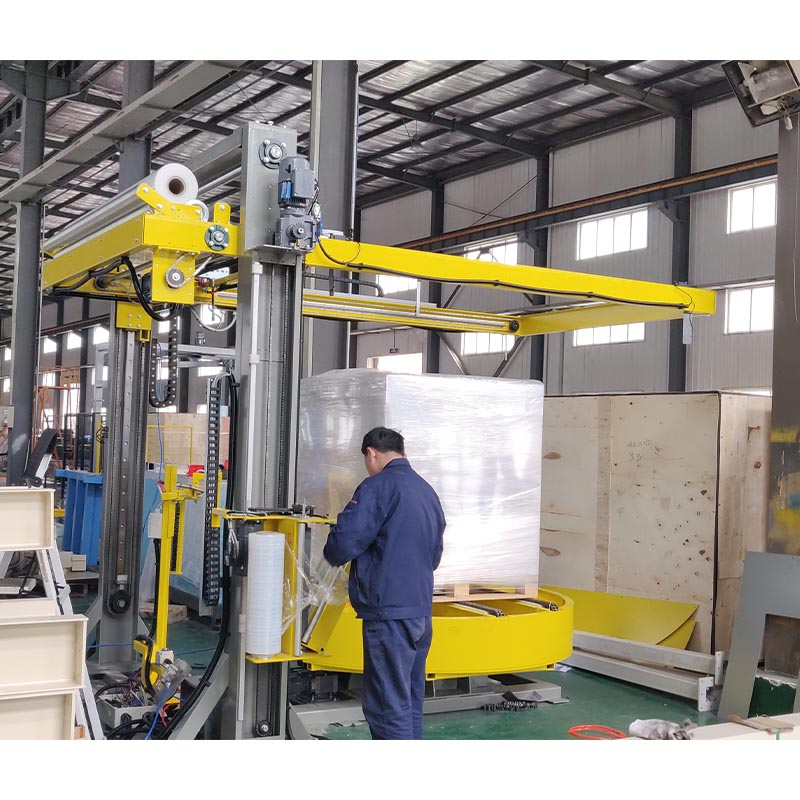

Fully automatic pallet Wrapping Machine

After finishing stretch wrapping, the film tail will be cut and next film head is clamped automatically.

Air blowing to wrap film head into pallet.

Hot cutting wire to cut the film after wrapping, and then wiper arm brush against film tail.

(Film welding unit as option to weld film against pallet)

Contact Now E-Mail Telephone WhatsApp

Product Details

Item	Specification
wrapping size(mm)	500-1300mm (L)×500-1200(W)
Wrapping height (mm)	2200mm
Packing efficiency	20-40 loads / hour
Turntable turning speed	0-15rpm (Adjustable, soft start&stop)
Roller conveying speed:	18mpm adjustable
Turntable diameter	2000mm
Height of turntable	To be designed based on customer requirements
Power supply	2.0KW 380V 50HZ 3Phase
Max. load capacity	3000kgs

All equipment has high maintainability. There should be enough space for operation where the parts such as the motor and gearbox may be disassembled. Moving washer and protective cover.

Shrinkage Film Wrapper
