Full automatic pre-stretch wrapping machine

PLC control system with touch screen, 8 sets of parameter settings available

Cutting wire to cut film automatically after wrapping finished.

Film tension control adjustable; Carriage up/down speed adjustable

Safety tower light alarm

Contact Now E-Mail Telephone WhatsApp

Product Details

Item	Specification
wrapping size(mm)	500-1200mm (L)×500-1100(W)
Wrapping height (mm)	2200mm
Packing efficiency	20-40 loads / hour
Turntable turning speed	0-15rpm (Adjustable, soft start&stop)
Roller conveying speed:	20mpm adjustable
Turntable diameter	1800mm
Height of turntable	To be designed based on customer requirements
Power supply	2.4KW 380V 50HZ 3Phase
Max. load capacity	1500kgs

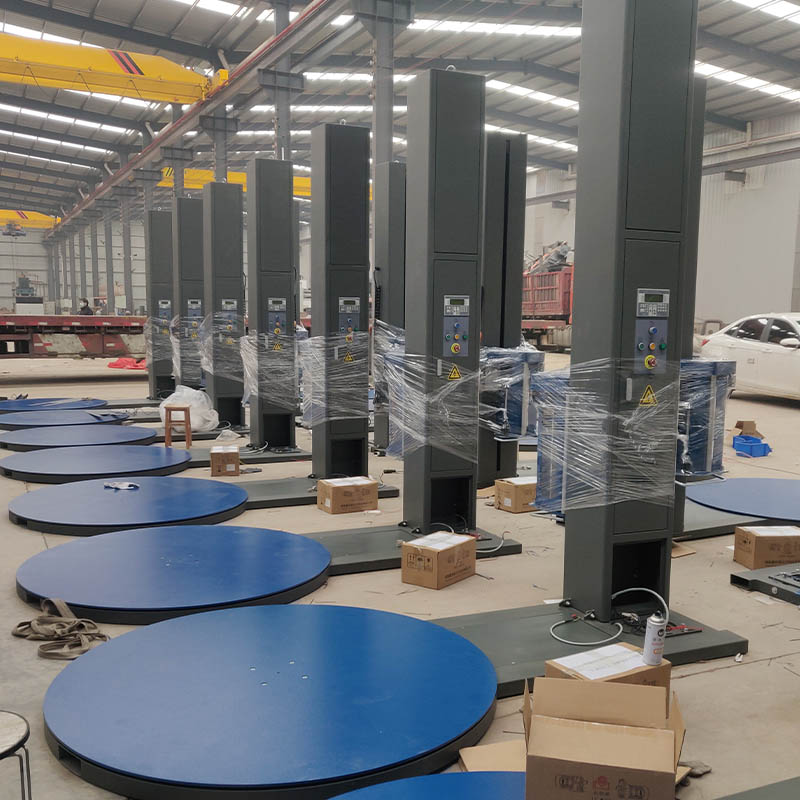

Pallet Chain Wrapping Machine

Powered pre-stretch system up1:3.5 to min film consumption(Pre-stretch ratio can be specially made )
Carriage door opens for effortless roll change and thread film
Film delivery variable speed by separate AC Drive Motor.
Heavy duty double-chain carriage lift, calm and safety.

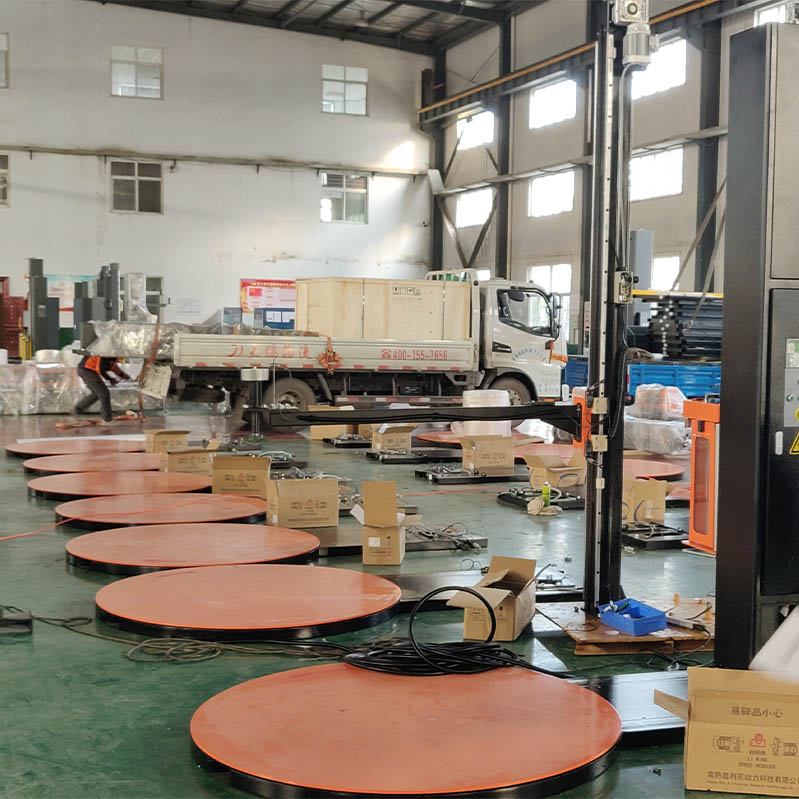

Pallet Chain Wrapping Machine
