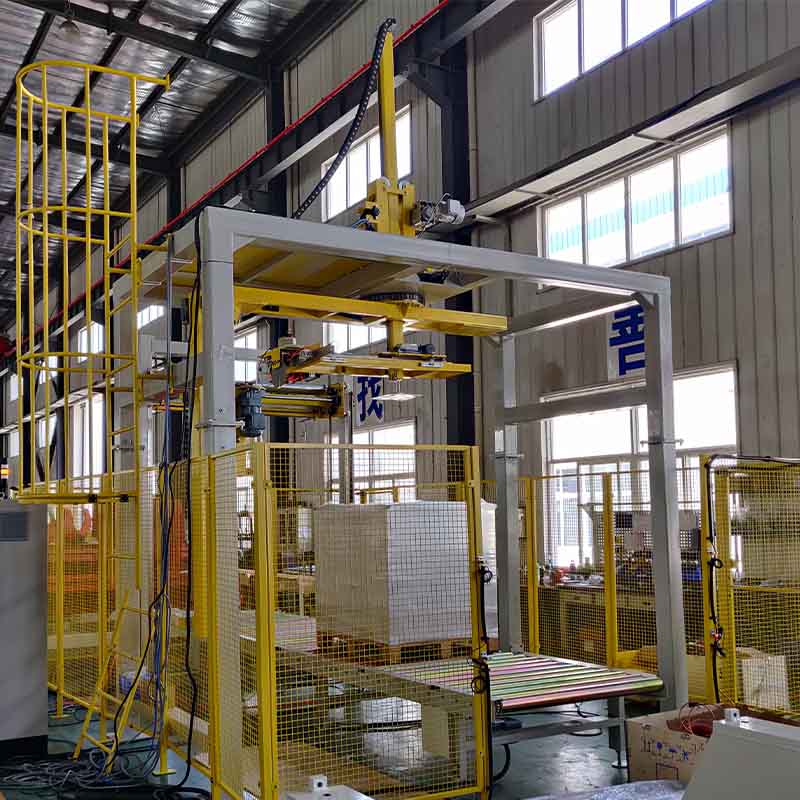

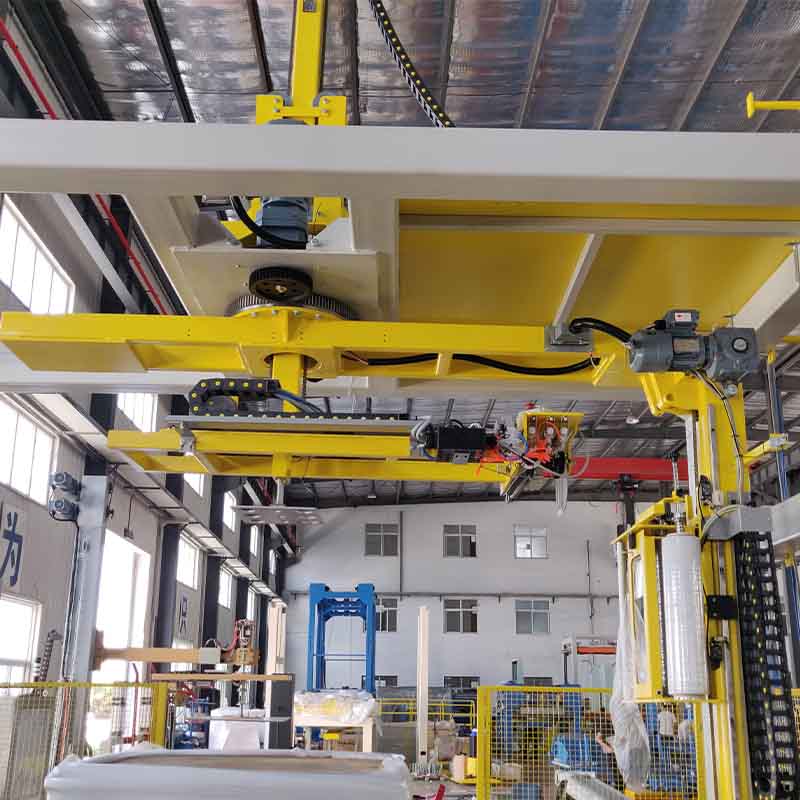

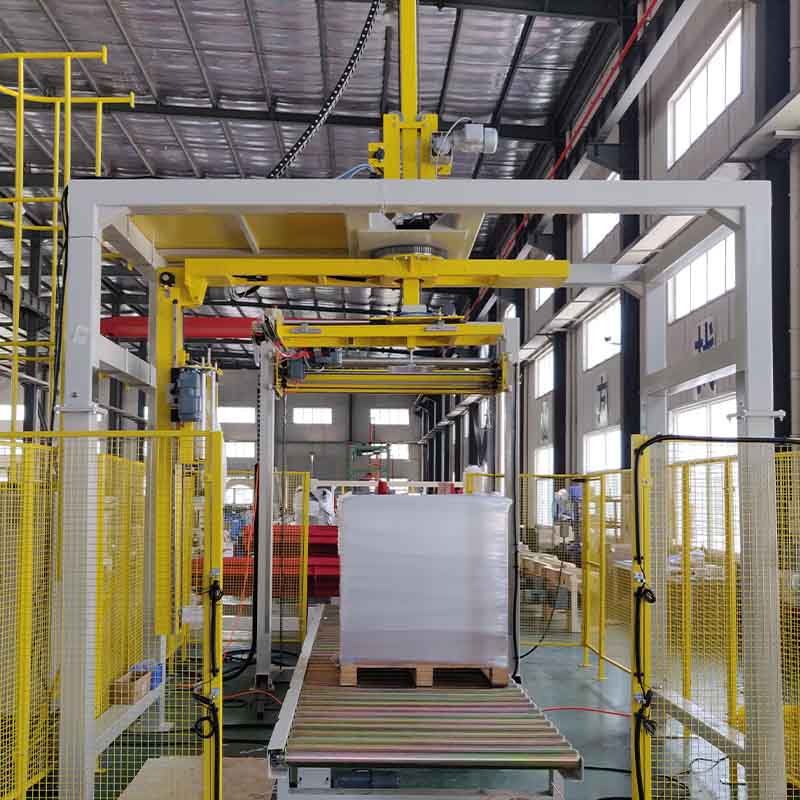

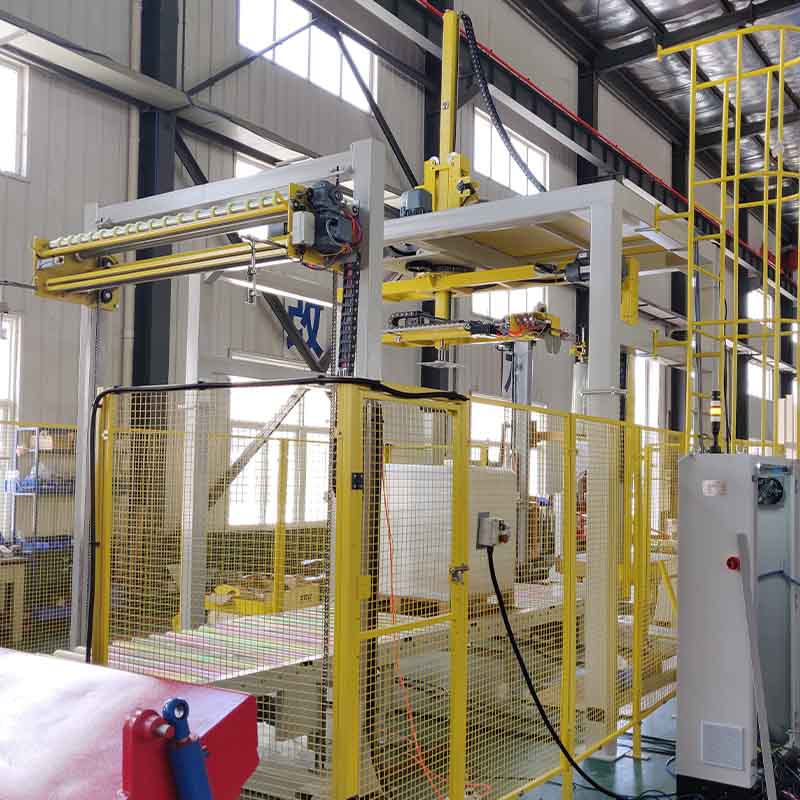

Full Automatic Arm Rotating Film Wrapping Machine

Rotary arm stop by safety bumper and reflection photo eye sensing and obstacle in the rotating area.
Powered pre-stretch system up to 250% to min film consumption
Lifting unit in wrapping field will lift pallet up to 150mm above the roller conveyor
Full auto feeding film and cutting film

Contact Now E-Mail Telephone WhatsApp

Product Details

Item	Specification
Wrapping specifications	(500-1300)mm*(500-1200)mm.
Packing height	2400mm
Packaging efficiency	20-40 loads/H available. (Option: or 30-60 loads/H)
Arm speed	0-15rpm frequency control. (Option 25rpm, 35rpm)
Arm performance	High sensitivity emergency brake system, the arm automatically reset.
Film carriage system	Pre-stretch film carriage, stretch ratio up to 300%, automatic film feeding & cutting device, adjustable speed.
Lifting column	Chain structure, speed variable frequency adjustable.
Control system	PLC programmable control, wrapping layer adjustable, automatic height sense.
Machine weight	680KG (without support)
Machine dimensions	3440mm1800mm3220mm (without convey line)

Wrapping Machine

Siemenz PLC, programmable
Photo-eye pallet height sensor.
0-9 separate top ,bottom & up-down wrap count selectors.
Reinforce wrap allow more wrap on same location.
Film Tension Control adjustment on the panel.
25 RPM arm variable a speed by frequency changer
Separate variable carriage up/down speed
