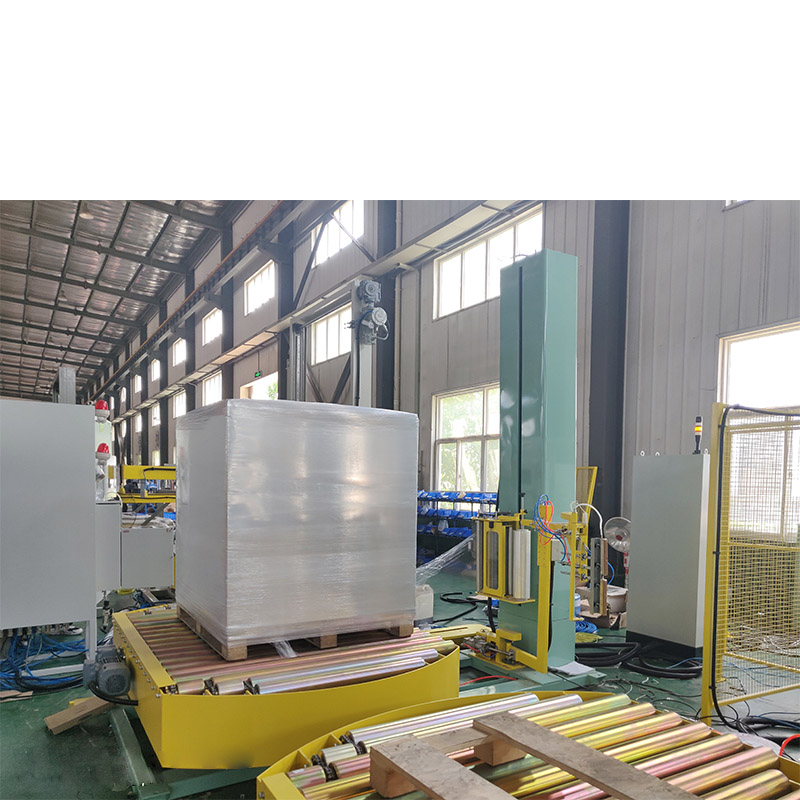

Customized Stretch Film Pallet Wrap Packing Machine
Film carriage
Mechanical stretch film carriage
Stretch film thickness: 20-30μm
Film roll width: 200mm;
Film roll inner diameter: 76mm; outer diameter: max 240mm
Auto film feeding and cutting unit
Clamp the film head for feeding, to be installed under outfeed roller conveyor
Automatically cut the film after wrapping and hold film for the next pallet;
Air consumption: 1000ml, Air pressure: 0.4-0.6Mpa
| Rotating ring inner diameter | 1200-2000mm |
| Wrapping dimension | Width: 500-1100mm; Height: 500-1000mm; Length: 500-2000mm |
| Rotating ring speed | Max. 30rpm |
| Compressed air pressure | 0.5Mpa |
| Air consumption | 10L/M |
| Motor power | rotating ring: 2.2kw 380V, 60HZ, 3phase |
Wrapper main frame with rotating ring
Orbital ring inner diameter: 1200mm.
Orbital ring height adjust by motor, to fit for different pallet height.
Infeed & outfeed top press rollers to hold pallet when wrapping.
Rotating speed: max. 30RPM, inverter adjustable.
Gearbox motor: Nord brand, 2.2kw.
