Product Details

Max load size(mm)	1200 (L)×1200(W) ×2000(H)mm
Packing efficiency	0-60 loads / hour
Rotary arm speed	0-25rpm
Power supply	4.0KW 380V 50HZ 3Phase
Max load capacity	2000kgs
Wrapping requirement	Bottom wrapping up to 2/3 of pallet, top wrapping 15cm higher than the height of pallet
Working ambiance	Indoor, normal temperature

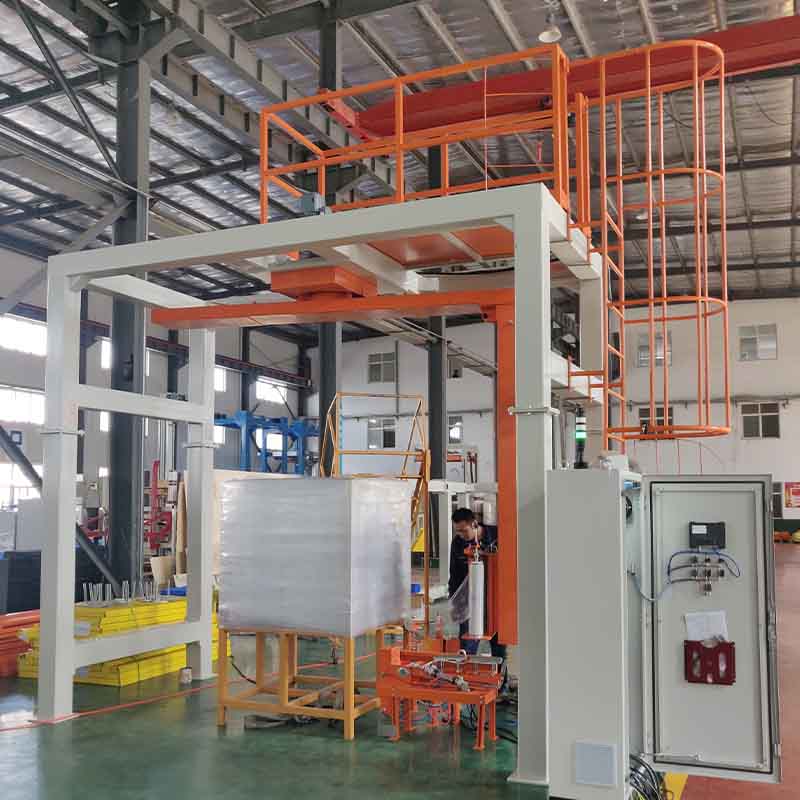

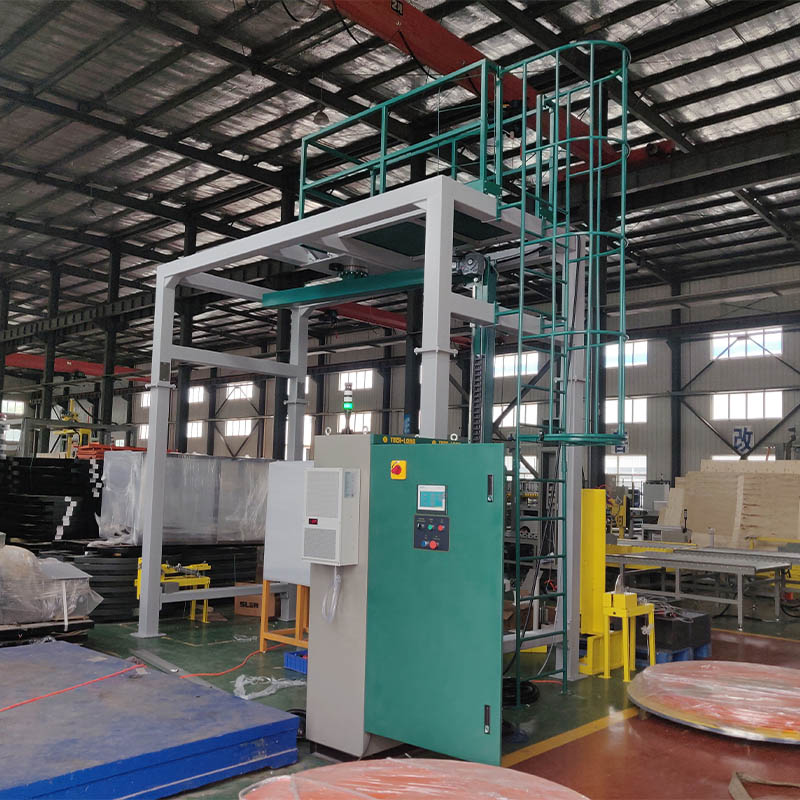

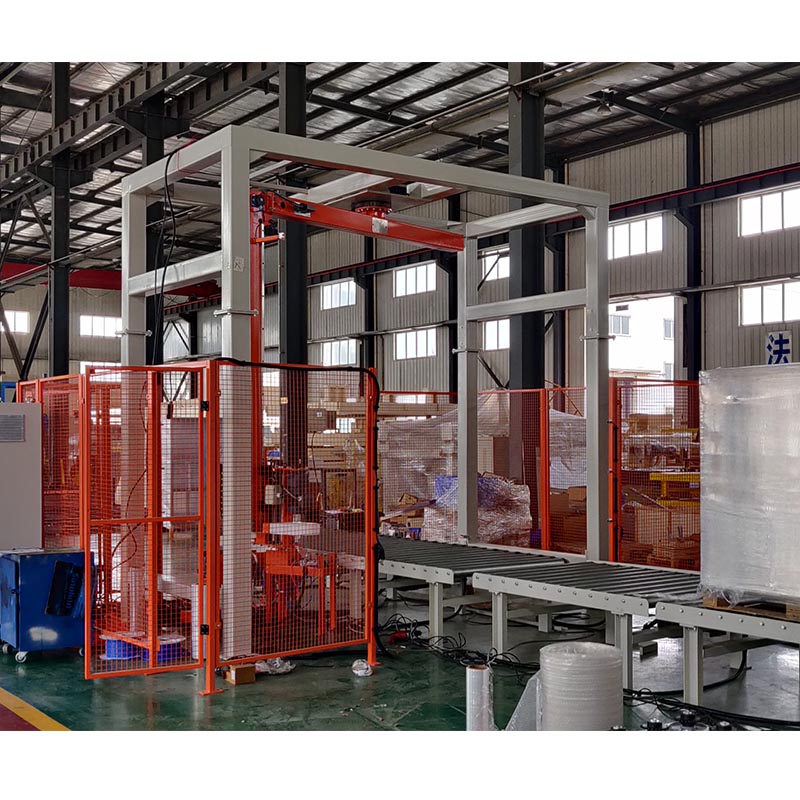

Stretch Wrapping Machine

When stretch wrapping finish, the film will be cut and clamped automatically.
When the film tail is released from the clamp, the air shooter will blow the film tail up, then the film tail will be wrapped by stretch film and keep it tightly with the pallet to ensure no film tail produced.
Film hot melt cutting adopts electrical heating wire to cut the film.
After film being cut, the hot sealer will seal the film tail automatically to ensure no film tail come out.

Stretch Wrapping Machine
