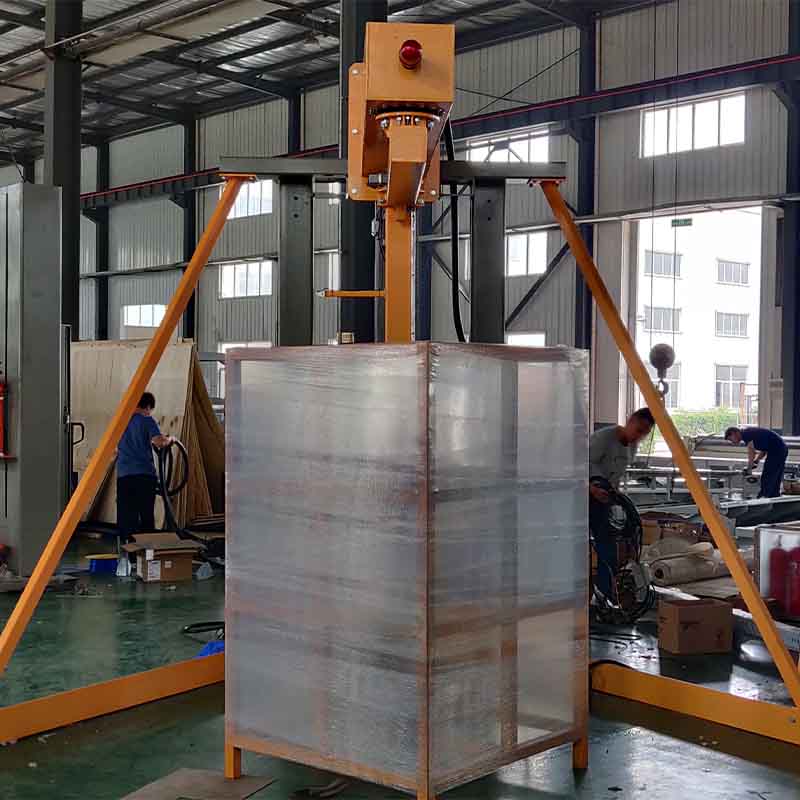

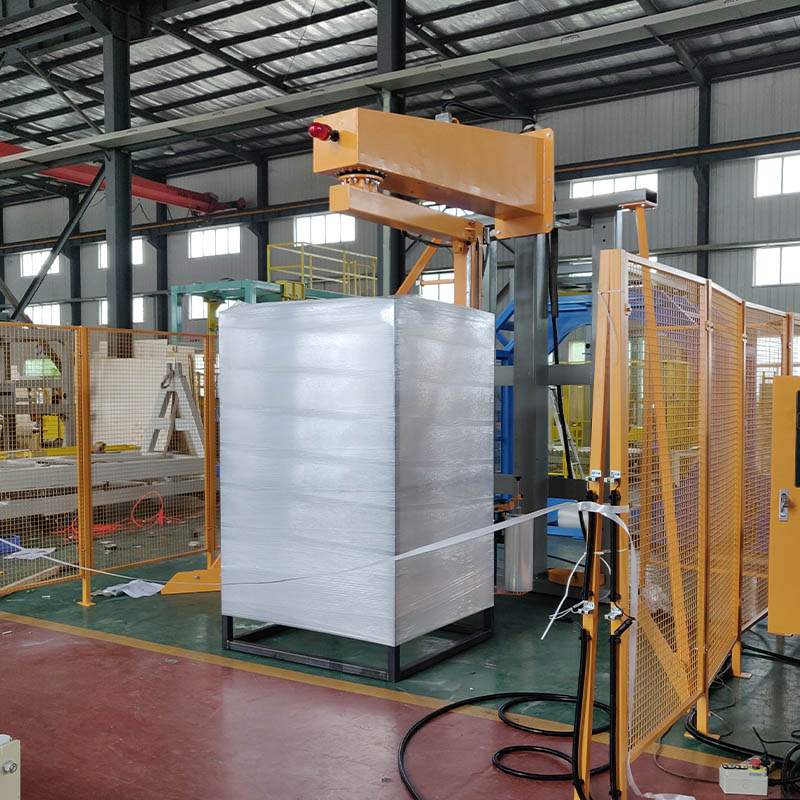

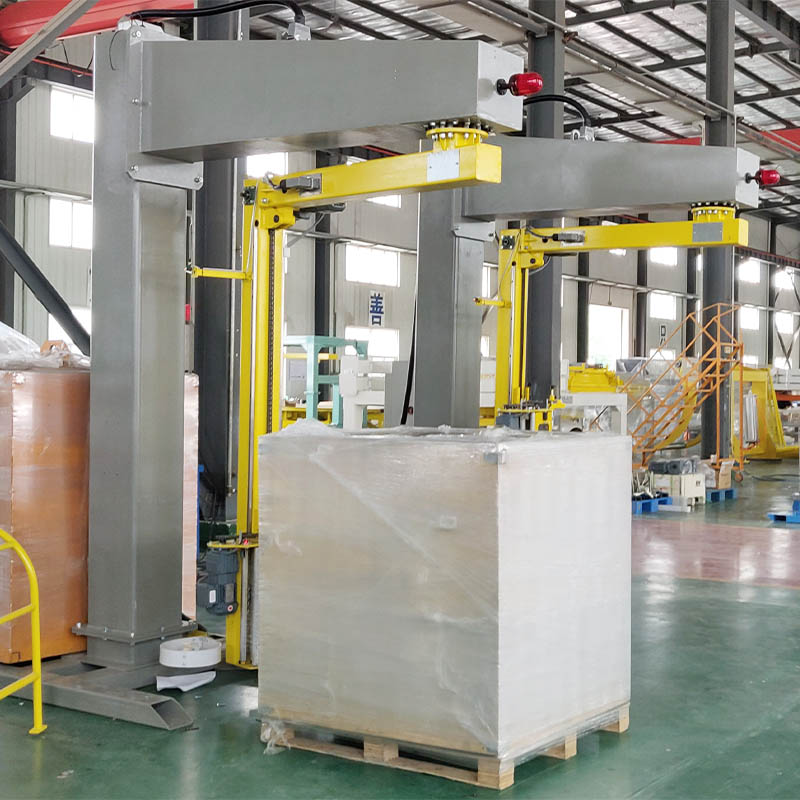

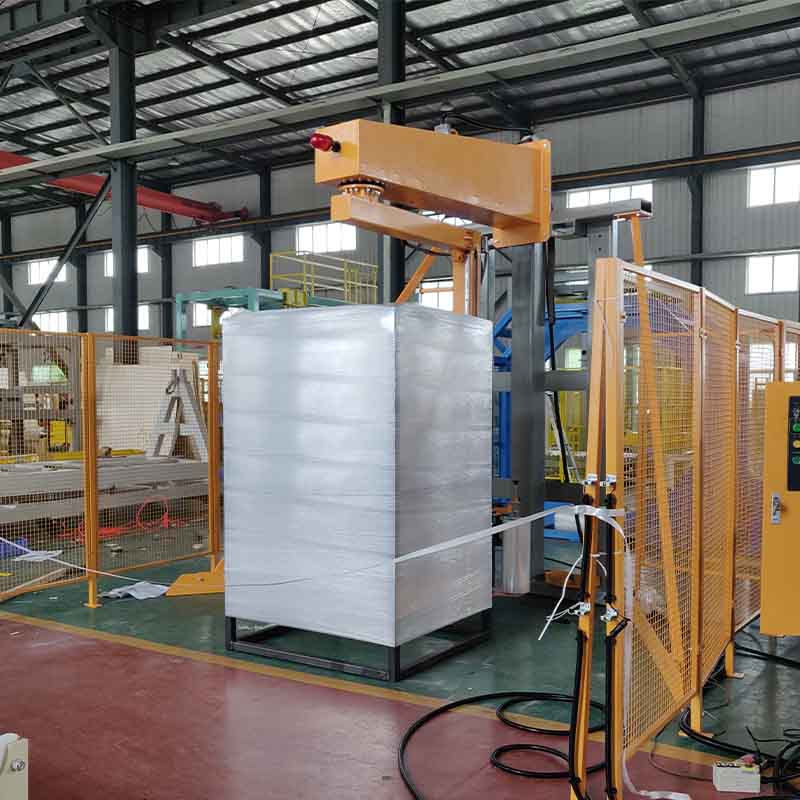

Automatic Rotary Arm Shrinking Machine Stretch Film Wrapping Machine (triangle type)
Technology data
Max load size(mm) 1200(L)X1300(W)X2200(H)
Packing efficiency 20-40load/h base on load
Arm speed 3-15rpm
Machine weight 680kgs(not include bracket)
Power 1.3kw 220V 50Hz 1Phase
Max load capacity floor capacity
Controls
PLC control system
Photo-eye pallet height sensor
0-7 separate top, bottom&up-down wrap count selectors
Reinforce wrap allow more wrap on same location
Film Tension Control adjustment on the panel
3-15RPM variable arm speed by frequency changer
Separate variable carriage up/down speed
Cycle pause capability
Flash light for machine in operation
Rotary arm stop by safety bumper and reflection photoeye sensing and obstacle in the rotating area
Arm(Mast)drive
Slewing Bearing drive system
Soft start/soft stop
Go home position after wrap cycle finished
| Max load size(mm) | 1200 (L)×1200(W)×1600(H)mm |
| Packing efficiency | 20-40 loads / hour |
| Rotary arm speed | 3-15rpm |
| Height of turntable | 500mm±100mm |
| Power supply | 380V 60HZ 3Phase |
| Max load capacity | 2000kgs |
| Wrapping requirement | Bottom wrapping up to 2/3 of pallet, top wrapping 15cm higher than the height of pallet |
| Working ambiance | Indoor, normal temperature |
| Turntable | Diameter: 2000mm |
| Mast height | According to the pallet and turntable height |
Film carriage
Powered pre-stretch system up to 300% to min film consumption(Prestretch ratio can be specially made)
Carriage door opens for effortless roll change and thread film
Film delivery variable speed by separate AC Drive Motor
Rotating Power slip ring provide power required for carriage drive on rotary arm
