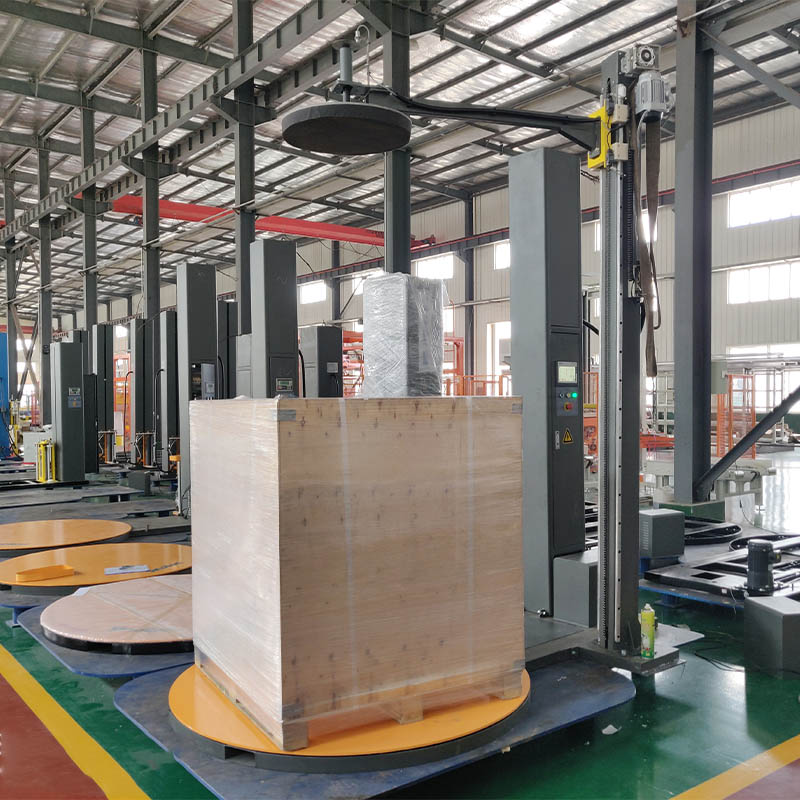

Simple Turntable Pallet Wrapper Machine

Stretch wrapping equipment are used to wrap stretch movie round a loaded pallet. Film gives more guide whilst the merchandise are being transport & storage to shield them from tip, spill or end up damaged. Additionally, wrapped masses can without difficulty be separated and identified.

Stretch pallet wrapper is broadly used in chemical industry, digital industry, constructing materials, domestic appliances, papermaking, nutrition & drink etc.

Contact Now E-Mail Telephone WhatsApp

Product Details

Control system	PLC control system
	Photo eye pallet height sensor
	3-12 RPM variable turntable speed by frequency changer
Film carriage	Powered pre-stretch system to 300% to min film consumption
	Film delivery barlable speed by spparate AC Drive Motor
	Heavy duty double-chain carriage lift, calm and safety
Technology Data	Max load size(mm): 1200(L)X1200(W)X2400(H)
	Turntable dia: 1650mm
	Turntable Height: 77mm
	Turntable weight capacity: 2000kgs
	Turntable speed: 3-12rpm
	Electrics: 220V 50HZ 1 phase
	Power: 1.5KW
	Packing efficiency: 20-40 load/h base on load

Stretch Hood Wrapper

Technology Data
Max load size: 1200 l 1200 w 1800h mm
Turntable diameter: 1650mm
Turntable height: 78mm
Turntable weight capacity: 2000kg
Packing height: 1800mm
Machine weight: 700kg
Electrics: 220V 50Hz 1phase
Turntable speed: 0-12rpm

Control system PLC control system
Photo eye pallet height sensor
3-12 RPM variable turntable speed by frequency changer
Turntable Go home position after wrap cycle finished
Soft start/soft stop
Heavy duty chain drive

Film carriage
Powered pre-stretch system to 300% to min film consumption
Film delivery barlable speed by spparate AC Drive Motor
Heavy duty double-chain carriage lift, calm and safety
