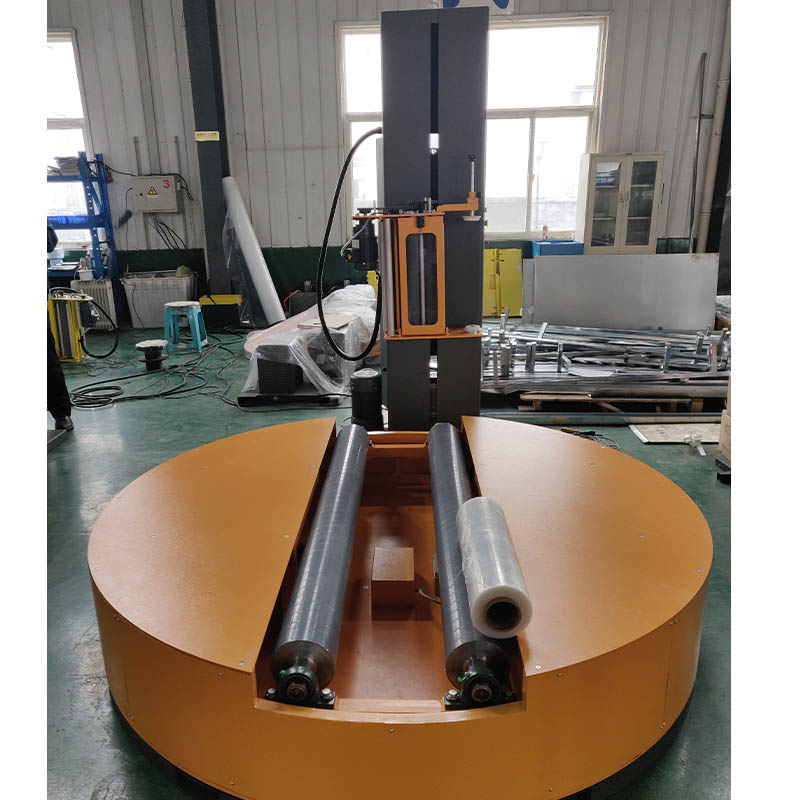

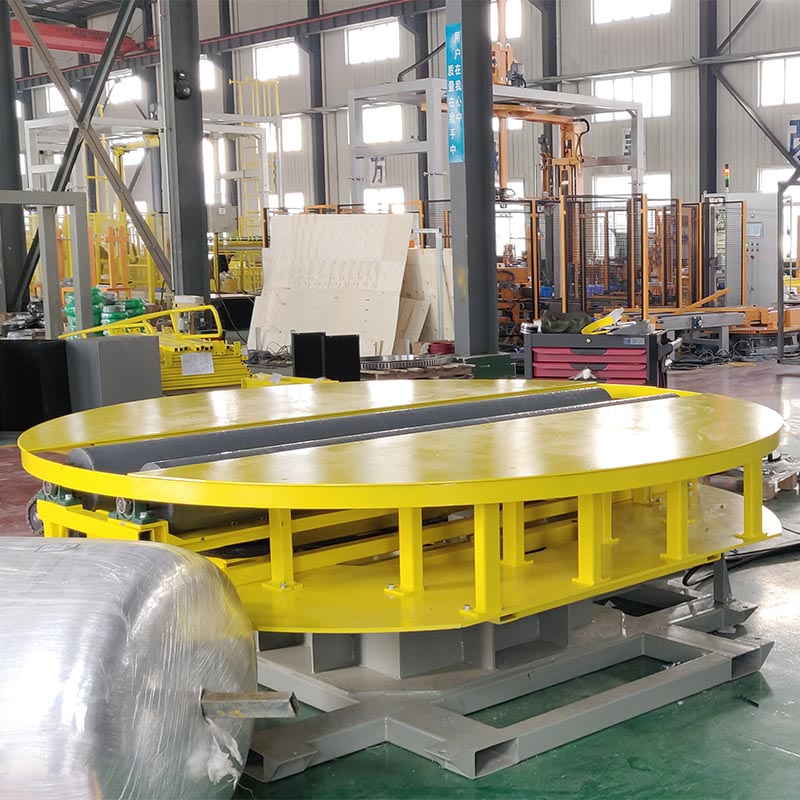

Reel type stretch wrapping machine
The cylindrical winding packaging desktop for cylindrical objects to lift out axial packaging to gain the common package. The wrapper wraps reel in 360 diploma and can be designed with pinnacle platen device.
Items | Specifications |
Roll Diameter | 600-1800mm |
Roll width | 500-2250mm |
Roll Weight | Max. 3000kgs |
Packing efficiency | 20-30 rolls/h |
Turntable diameter | 2500mm |
Turntable speed | 3-12rpm |
Turntable height | 490mm/710mm |
Machine weight | 1080kg |
Power supply | 2.2kw, 220V, 1P, 50 Hz |
Machine dimension | 2895(L) ×2500(W) ×2300(H) mm |
Options: 1. Auto eject the reel after wrapping progress 2. Top platen device; 3. Slewing bearing can be equipped with. | |
After finishing stretch wrapping, the film tail will be cut and next film head is clamped automatically.
Air blowing to wrap film head into pallet.
Hot cutting wire to cut the film after wrapping, and then wiper arm brush against film tail.
(Film welding unit as option to weld film against pallet)
