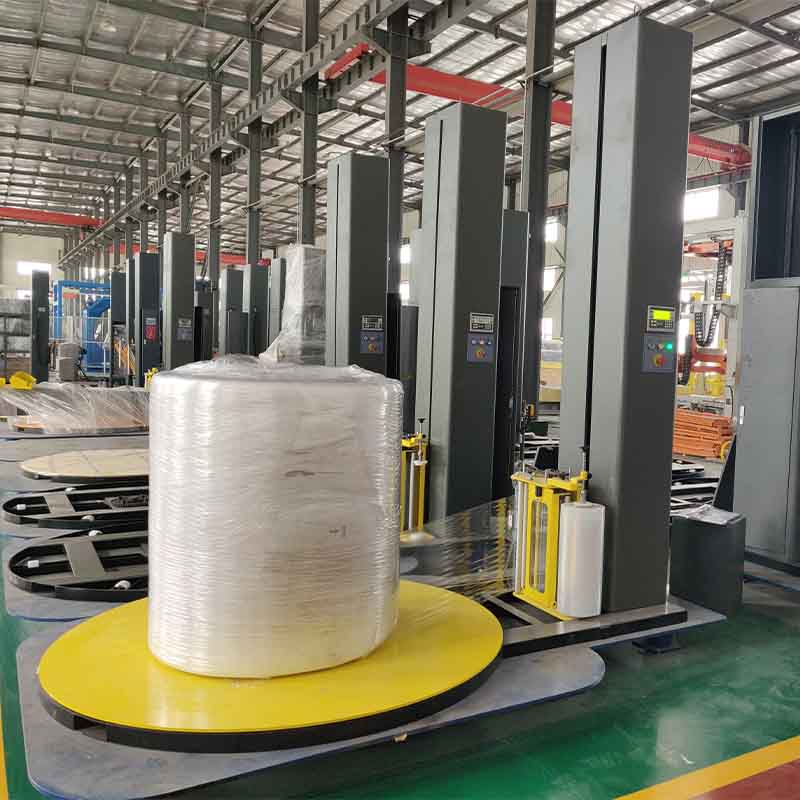

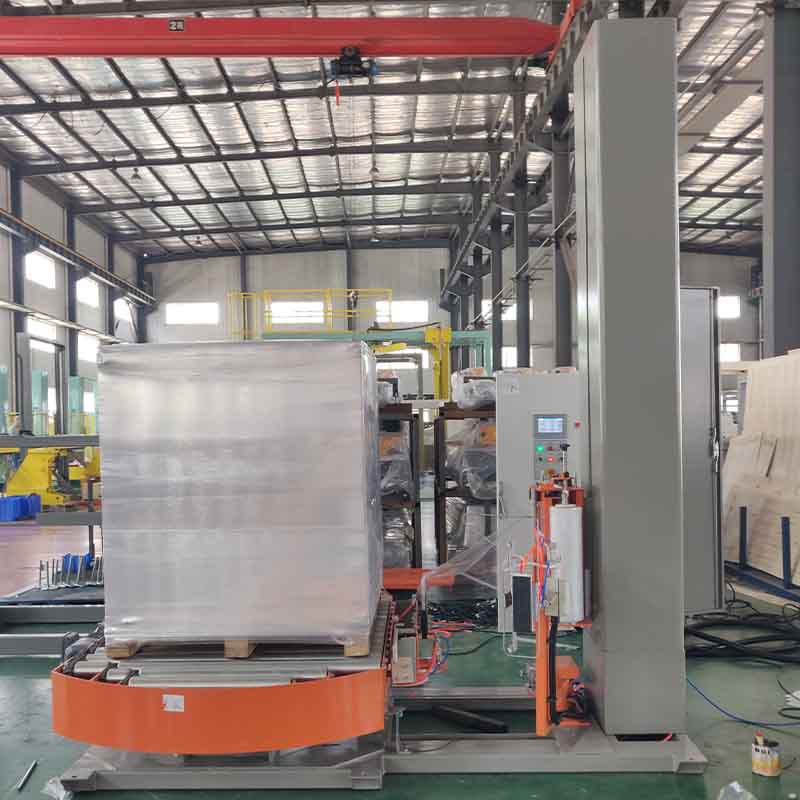

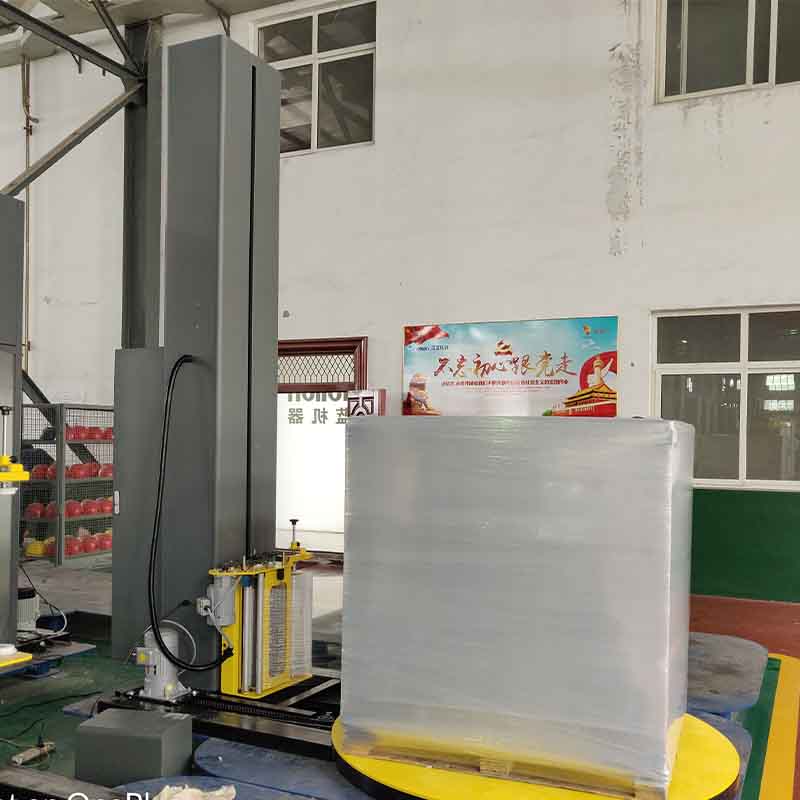

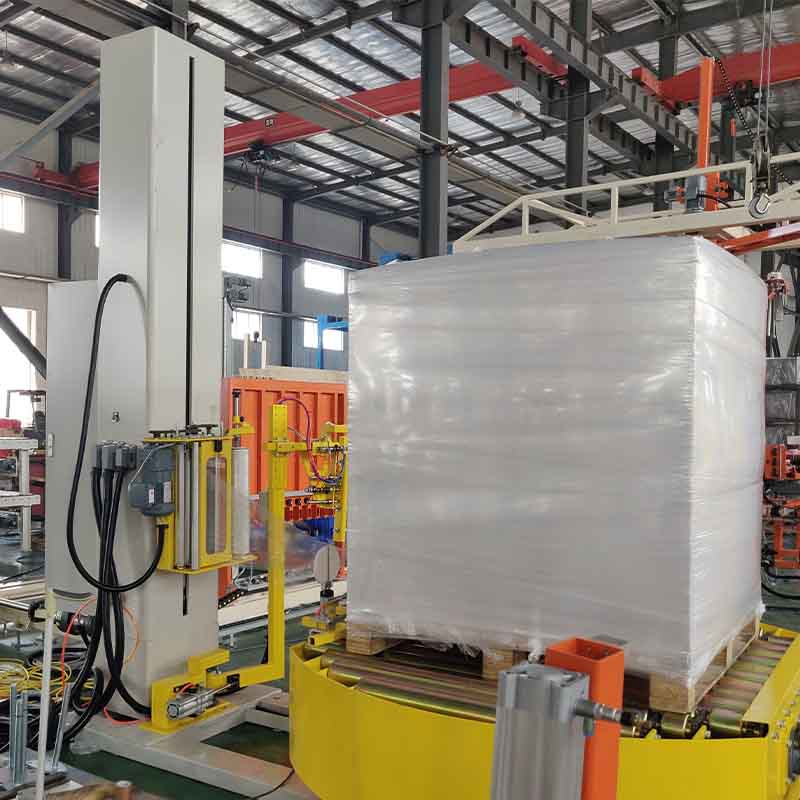

Hot Seling 2000kgs Load Weight Pallet Wrapping Machine for Warehouse Equipment
1.Intelligent Human-computer interface; PLC easy operation control; Pre-stretch system 300% (customized).
2.Stable performance, working life 10 years, quality guarantee 1 years.
3.European standard design and manufacture, same quality, but Chinese market price; Pass CE certificate.
Model | T1650F Automatic pre-stretch film wrapping machine |
Wrapping product size | L(500-1200) mm × W(500-1200)mm |
Wrapping height | L type:1800mm H type:2400mm Y type:2800mm |
Packing efficiency | 20-40 pallet/h |
Rotary speed | 0~15rpm rotary speed, adjustable, steady start and stop |
Turntable size | Dia:1650mm Height:78mm |
Turntable weight capacity | 2000kgs |
Film carriage system | Pre-stretch film carriage, pre-stretch up to 250%, automatic transport film |
Up and down upright | Double chain structure, adjustable up and down speed by transducer |
Control system | PLC programmable |
Machine weight | 700kg |
Machine size | 2745mm×1650mm × (2260-3260) mm |
Power | Turntable 0.75kw, film carriage 0.4kw, upright 0.37kw |
In-sale service:
1.We will supply each manufacturing step photo for customer checking on time.
2.We will prepare packing and shipment according to customer's needing in advance.
3.Testing the machine and making video for customer's checking.
